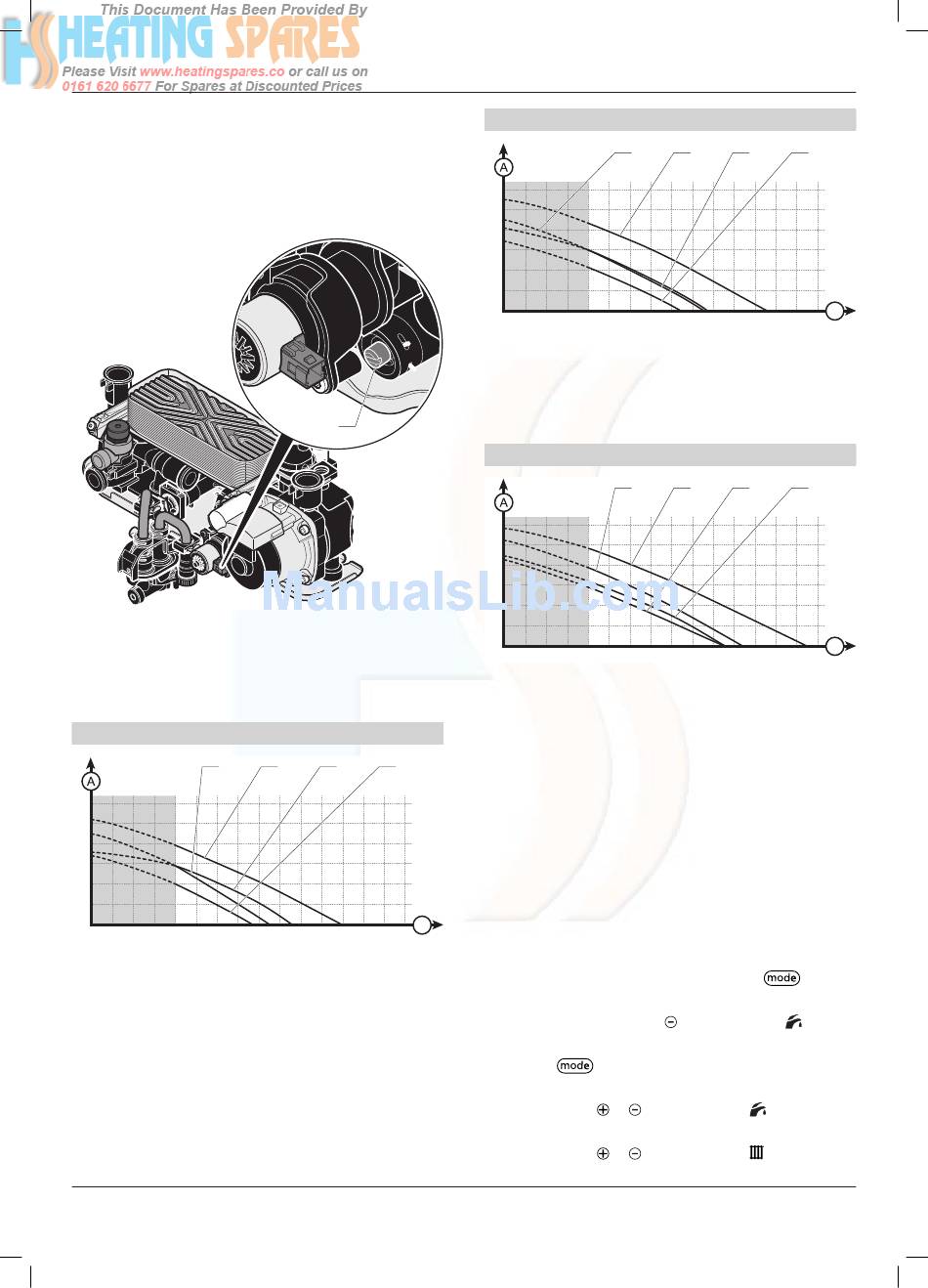

13 Specific adjustment
13.1

Heating circuit adjustment

It may be necessary to adjust the by-pass to the design of the
system. The boiler is delivered pre-set open 1/2 turn (1).
Key
1 Screw for by-pass
• Depending on the design of the system the by-pass may
need further adjustment. It is adjusted clockwise to close and
anti-clockwise to open. This should be balanced to ensure
that it operates if the pump output is adjusted.
Output/pressure curve Ultracom
1
60
50
40
30
20
10
0 500
Key
A Available pressure between heating flow and return (kPa)
B Heating circuit flow rate (l/h)
1 Speed min, bypass closed
2 Speed max, bypass closed
3 Speed max, bypass middle position
4 Speed max, bypass opened
- 28 -
Supplied By www.heating spares.co Tel. 0161 620 6677
1
24cxi
2
2 3 4
B
1000 1500
Output/pressure curve Ultracom
1
60
50
40
30
20
10
0 500
Key
A Available pressure between heating flow and return (kPa)
B Heating circuit flow rate (l/h)
1 Speed min, bypass closed
2 Speed max, bypass closed
3 Speed max, bypass middle position
4 Speed max, bypass opened
Output/pressure curve Ultracom
1
60
50
40
30
20
10
0 500
Key
A Available pressure between heating flow and return (kPa)
B Heating circuit flow rate (l/h)
1 Speed min, bypass closed
2 Speed max, bypass closed
3 Speed max, bypass middle position
4 Speed max, bypass opened
13.2 Appliance technical settings and
parameter list
The access to the boilers technical data allows you to adjust the
boiler to the exact system requirements.
Note: the heating power decrease has no effect on the domestic
hot water power.
13.2.1 Installation settings
• Press for more than 7 seconds on the button
access the configuration menu. The screen displays "0".
• Press 4 times on the button
The screen displays "96". This is the installer's password.
• Press on
to validate. The screen displays the
parameter "00" and its value "XX".
• Press on button
or under the symbol
parameter to modify.
• Press on button
or under the symbol
value of the parameter.
30cxi
2
2 3 4
B
1000 1500
35cxi
2
2 3 4
B
1000 1500
to
under the symbol .
to access the
to modify the
