INSTALLATION

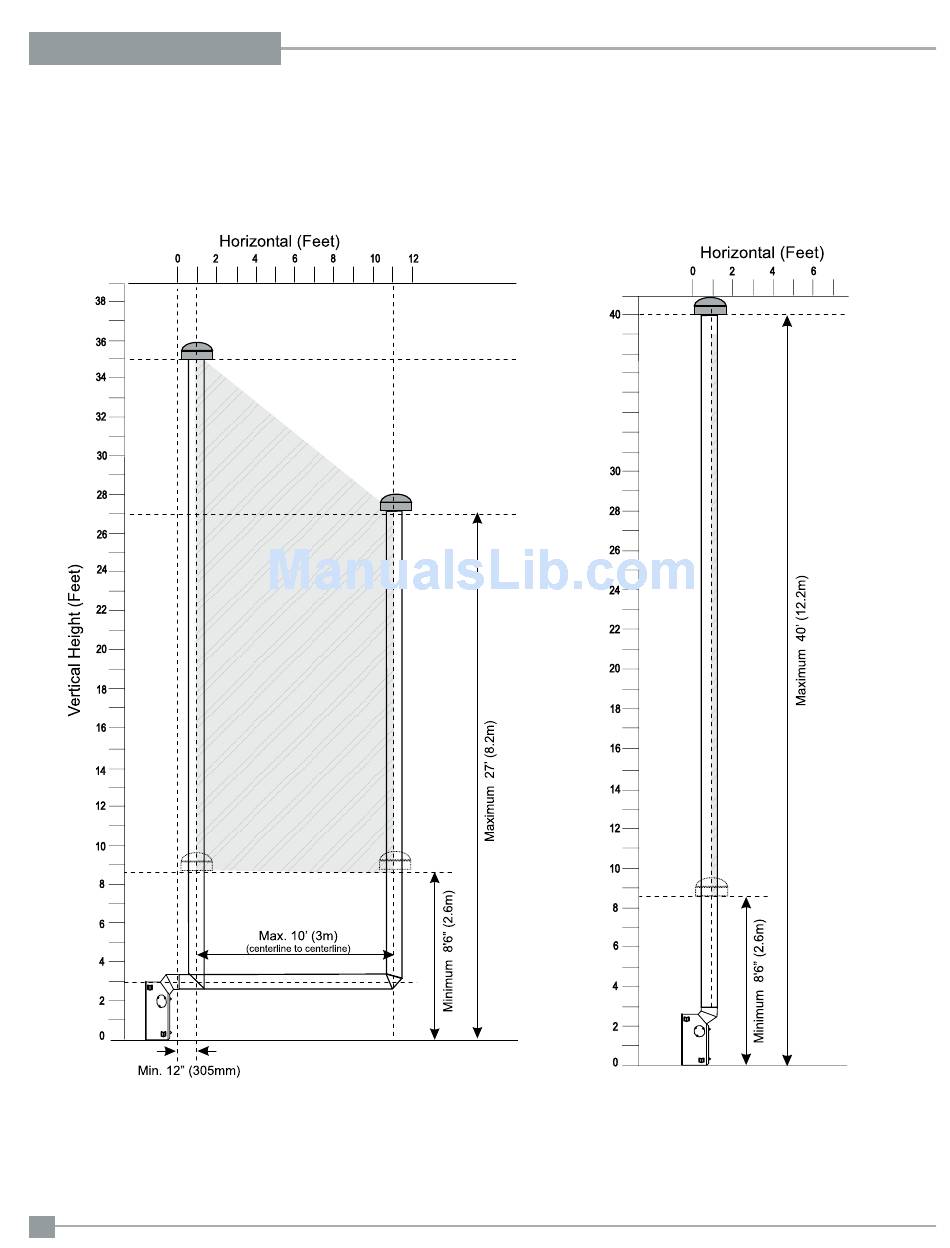

The shaded area in the diagram shows all allowable combinations of straight vertical and offset to vertical terminations, using one 90
vent systems for Propane and Natural Gas.
•
Unit must be raised 1".
•
Firestops are required at each floor level and whenever passing through a wall.
•
Maintain clearances to combustibles.
•
Vent must be supported at offsets.
Note: Must use optional rigid pipe adapter when using rigid vent systems (Part # 510-994..
22
RIGID PIPE VENTING ARRANGEMENTS
Vertical Terminations
(Propane & Natural Gas)
elbow, with rigid pipe
