Remove AC Adapter from Monitor Stand
To remove the AC Adapter

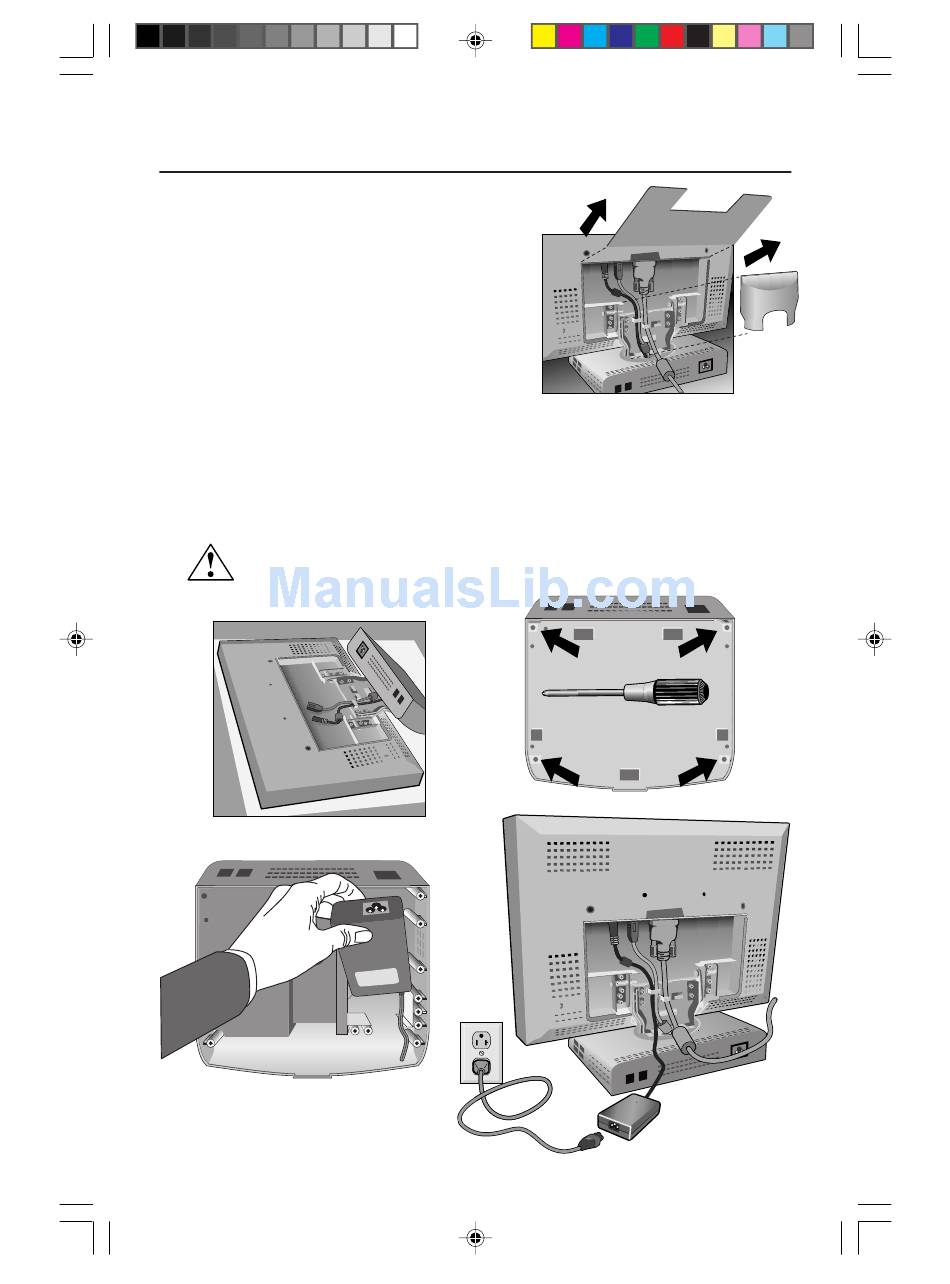

1. Remove the back panel and remove cable
cover (Figure AC.1).
2. Disconnect all cables.
3. Place monitor face down on a
non-abrasive surface (Figure AC.2).
4. Remove the 4 screws on the bottom of the
stand and lift bottom panel (Figure AC.3).
5. Pull out the AC Adapter and cord
(Figure AC.4).
6. Reattach the bottom panel to the stand. Tighten all screws. To connect the AC
Adapter outside of the stand, plug the AC Adapter cord to the back of the
monitor "DC in" (Figure AC.5).
7. Reverse this process to reinstall the AC Adapter inside the monitor stand.
Please use only the supplied AC Adapter (#A2425S01).
