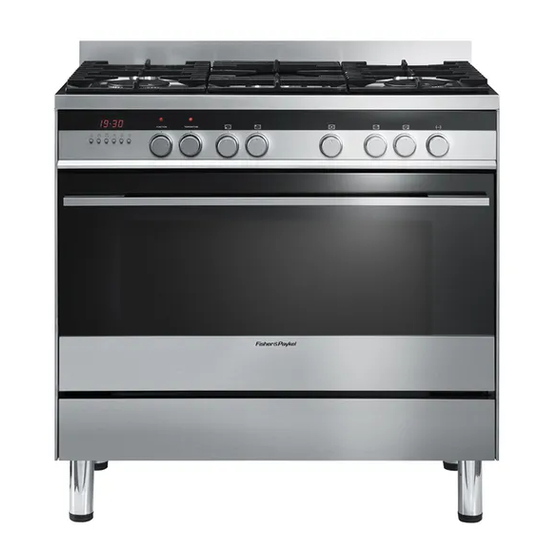

  • Page 1 Freestanding cooker Installation instructions User guide OR90SDBGFX models NZ AU...

  • Page 3: Table Of Contents

    Contents Safety and warnings Installation instructions Using your seven-function oven for the first time Setting the clock Using your oven Cooking functions Using the rotisserie Using the electronic timer Automatic cooking Using your gas cooktop Care and cleaning Troubleshooting Warranty and service Important! SAVE THESE INSTRUCTIONS The models shown in this User Guide may not be available in all markets and are...

  • Page 4: Safety And Warnings

    Safety and warnings Installation WARNING! Electrical Shock Hazard Always disconnect the cooker from the mains electricity supply before carrying out any maintenance operations or repairs. Failure to follow this advice may result in death or electrical shock. WARNING! Cut Hazard Take care - panel edges are sharp.
  • Page 5 Safety and warnings Electrical This cooker is to be installed and connected to the electricity supply only by an authorised person. If the installation requires alterations to the domestic electrical system, call a qualified electrician. The electrician should also check that the electrical system is suitable for the electricity drawn by the cooker.
  • Page 6 Safety and warnings Operation Your freestanding cooker has been carefully designed to operate safely during normal cooking procedures. Please keep the following guidelines in mind when you are using it: WARNING! Explosion Hazard Do not store flammable materials such as gasoline near the cooktop. Do not store flammable material in the oven or storage compartment.

  • Page 7: Important Safety Instructions

    Safety and warnings Important safety instructions Never leave the appliance unattended when in use. Boilover causes smoking and greasy spillovers that may ignite. Isolating switch: make sure this cooker is connected to a circuit which incorporates an isolating switch providing full disconnection from the power supply. Household appliances are not intended to be played with by children.

  • Page 8: Installation Instructions

    Installation instructions Installation instructions Dimensions and clearances Installation clearances and protection of combustible surfaces shall comply with the current local regulations eg. AS/NZS5601.1:2010 Gas Installations code. Installation shall comply with the dimensions in Fig. 1, bearing in mind the following requirements: Overhead Clearances In no case shall the clearance above the highest part of the cooker be less than 600 mm or, for an overhead exhaust fan, 750 mm.
  • Page 9 Installation instructions Dotted line showing Locating the area for gas and electrical connection the position of the cooker when installed Area for gas connection 70.5 mm 70.5 mm Area for electrical connection Fig. 2 Area for gas and electrical connections (*) Depending on feet adjustment Fitting the adjustable feet...
  • Page 10 Installation instructions Installation instructions Moving the cooker Important! To prevent damaging the adjustable feet, ensure the cooker is always lifted by two people. Do not lift the cooker by the door handles. DO NOT DRAG the cooker. Lift the feet clear of the floor.
  • Page 11 Installation instructions Fitting the anti-tilt bracket Important! To restrain the appliance and prevent it tipping accidentally, fit a bracket to its rear to fix it securely to the wall. Make sure you also fit the supplied lock pin to the anti-tilt bracket. If installing the cooker above a plinth (without fitting the adjustable feet), revise the installation dimensions accordingly...
  • Page 12 Installation instructions Connecting the cooker to the gas supply The gas connection must be carried out by an authorised person according to the relevant standards. Before connecting the appliance to the gas main, mount the brass conical adaptor onto the gas inlet pipe, upon which the washer has been placed (see Fig.s 11-12 following).
  • Page 13 Installation instructions Gas connection for Gas connection for NATURAL GAS Gas inlet pipe Gas inlet pipe Nipple Nipple Washer Washer Brass conical adaptor Brass conical adaptor Test (Thread tight: use (Thread tight: use point suitable seal) suitable seal) Test point adaptor Gas pressure regulator Test...
  • Page 14 Installation instructions Leak-testing and flame-testing the cooker After installing the freestanding cooker and connecting the gas supply: Using a suitable leak detection fluid solution, check each gas connection one at a time by brushing the solution over the connection. The presence of bubbles will indicate a leak. If there is a leak, tighten the fitting and then recheck for leaks.
  • Page 15 Installation instructions Injector Injector Fig. 14 Semi-rapid burner Fig. 15 Triple-ring wok burner Injectors for Injector for Injectors for Injector for outer crown inner crown outer crown inner crown Fig. 16 Dual burner...
  • Page 16 Installation instructions Adjusting the minimum burner setting Check whether the flame spreads to all burner ports when the burner is lit with the gas valve set to the minimum position. If some ports do not light, increase the minimum gas rate setting. Check whether the burner remains lit even when the gas valve is turned quickly from the maximum to the minimum position.
  • Page 17 Installation instructions Natural gas Test Point Pressure [kPa] 2.75 Injector Injector Orifice Dia. Consumption Orifice Dia. Consumption BURNER [mm] [MJ/h] [mm] [MJ/h] 1.17 6.50 0.70 6.30 Semi-rapid 1.54 11.88 0.98 12.00 Triple-ring wok 0.76 0.50 16.20 16.20 (inner crown) (inner crown) (inner and (inner and Dual...
  • Page 18 Installation instructions Wiring diagram...
  • Page 19 Installation instructions Wiring diagram key Oven function selector (switch) Oven thermostat TMS Safety thermostat Thermal overload (n.o.) Oven temperature indicator light Oven ON indicator light Oven programmer Rotisserie selector (switch) GIR Rotisserie motor Oven lamps Oven bottom heating element Oven top heating element Oven grill heating element Oven fan (circular) heating element Oven fan motor...

  • Page 20: Using Your Seven-Function Oven For The First Time

    Using your seven-function oven for the fi rst time Fig. 19 Control panel Control buttons Central (dual) burner dial Clock display Rear right (semi-rapid) burner dial Function dial Front right (triple-ring) burner dial Temperature dial Rotisserie dial Front left (triple-ring wok) burner dial Function indicator light Rear left (semi-rapid) burner dial Temperature indicator light...

  • Page 21: Setting The Clock

    Setting the clock Buttons sets the timer sets the cooking time for automatic cooking sets the stop time for automatic cooking sets the clock, returns oven to manual mode, cancels automatic cooking decreases time and beep volume increases time Fig. 21 Clock display and control buttons Illuminated symbols If the display shows It means that...

  • Page 22: Using Your Oven

    Using your oven Fig. 22 Function and temperature dials Select the function by turning the function dial. The oven lights will come on. Select the temperature by turning the temperature control dial clockwise. The oven temperature indicator light, above the temperature dial on the control panel, will glow until the oven has reached the set temperature, and then it will go out.

  • Page 23: Cooking Functions

    Cooking functions OVEN LAMP Only the oven light comes on. It remains on in all the cooking functions. BAKE The upper and lower heating elements come on. BAKE is the traditional method of cooking. It is best to cook on only one shelf at a time in this function. Ideal for large cakes and dishes that bake for several hours.
  • Page 24 Cooking functions Notes on baking: Preheat the oven before baking. Do not place anything, including water or ice, on the oven floor. Remove the fat filter before baking. Use the fat filter when roasting meat and poultry on FAN BAKE, FAN GRILL or FAN FORCED. It helps to keep your oven clean and reduces splatter and smoking.

  • Page 25: Using The Rotisserie

    Using the rotisserie Prepare the rotisserie supports. Place the grill tray on the benchtop. Insert the supports into the lock studs. Push the supports all the way down to lock them in firmly. Lock stud Secure the meat. Important! Fig. 24a Prepare the rotisserie supports Take care, the forks are sharp! When securing the meat, ensure that: the skewer goes through the centre of the...

  • Page 26: Using The Electronic Timer

    Using the electronic timer You can use the timer at any time, even when the oven is not in use. Important! The timer does NOT turn the oven off. To set the timer Fig. 25 Clock display and control buttons .

  • Page 27: Automatic Cooking

    Automatic cooking To set the oven for automatic cooking Set the oven: Check the clock shows the correct time (eg 12:07). Select the function and set the temperature. The oven will turn on. Set the cooking time: Decide how long the food will take to cook, allowing time for preheating if necessary (eg 40 minutes).

  • Page 28: Using Your Gas Cooktop

    Using your gas cooktop Fig 27 Cooktop layout Triple-ring wok burner Semi-rapid burner Dual burner Gas burners The dial controls the flow of gas through the safety valve. Semi-rapid and triple-ring wok burners = closed valve (OFF) = maximum flow of semi-rapid and triple-ring burner burners = minimum flow of semi-rapid and triple-ring burner burners You can choose to cook at any heat between , but never...
  • Page 29 Using your gas cooktop Before using your cooktop Before using your new cooktop, please: Read this user guide, taking special note of the ‘Safety and warnings’ section. Turn the power to the cooker on at the wall. Make sure all burner control dials are turned off. Using the gas burners Choose the control dial for the burner you want to use.
  • Page 30 Using your gas cooktop If a burner does not light Check that: The cooker is plugged in and the electricity is switched on. The gas is turned on. The gas bottle is not empty (if you are using bottled gas). You have held down the dial for at least 10 seconds.
  • Page 31 Using your gas cooktop Matching cookware to burner Use flat-bottomed pans, and make sure they match the size of the burner, as shown in the following table. A small pot on a large burner is not efficient. Diameters of pans which may be used on the cooktop Burners Minimum Maximum...

  • Page 32: Care And Cleaning

    Care and cleaning Important! Before you start cleaning your cooker, please: Read these cleaning instructions and the ‘Safety and warnings’ section at the start of this user guide. Turn the cooker off at the wall. Make sure the cooker is a safe temperature to touch. Do not use a steam cleaner.
  • Page 33 Care and cleaning Burner parts and trivets You can remove and clean these parts with hot soapy water or non-abrasive detergents. Clean spills regularly before they become burnt on. Do not wash these parts in a dishwasher. After cleaning, check that the burners and their flame spreaders are dry before replacing correctly.
  • Page 34 Care and cleaning Replacing the triple-ring wok and dual burners Carefully replace the burner parts as per the following Figs. Fit the flame spreader to the housing as shown by the arrow in the Figs.36a-36b. Make sure the burner is not able to rotate (Fig. 37). Check that: the ignitor is always clean to ensure trouble-free sparking.
  • Page 35 Care and cleaning Cleaning the inside of your oven Do not use abrasive cleaners, cloths or pads to clean the enamel. To make cleaning easier, you can remove the side racks, the oven door, and the fat filter. Fig. 39 Removing the side racks Drop-down grill element To lower the grill element: use a flat-head screwdriver or a small coin to loosen the element fixing screws.
  • Page 36 Care and cleaning Cleaning the enamel cavity Do not use oven cleaner, scourers or abrasive cleaners with acid or alkali content on catalytic panels. Catalytic panes are normally ‘self-cleaning’ because their special enamel breaks down greasy splatters when the oven is used for non-greasy baking, especially at high temperatures. If you seldom bake then, from time to time, heat an empty oven on Bake for 60-90 minutes at 250 to break down any greasy soiling.
  • Page 37 Care and cleaning Cleaning the fat filter Clean the fat filter after every use. If the filter is not cleaned, it will block and shorten the life of the fan element. If the filter is lightly soiled, place it in a dishwasher on normal wash.
  • Page 38 Care and cleaning Fitting the side racks and catalytic panels Remove all shelves and trays. For easier access to the fixing screws, you may remove the oven door first. See ‘Removing the oven door. ’ Using a small coin or a flat-head screwdriver, loosen and remove the front and back fixing screws, as shown.
  • Page 39 Care and cleaning Fitting and removing the sliding shelf supports When fitting the sliding shelf supports, make sure that you fit: the side racks first the slides to the top wire of a shelf position both sides of each pair of slides both slides on the same level.
  • Page 40 Care and cleaning Storage compartment The storage compartment is accessible through the pivoting panel (Fig.44). Important! Do not store flammable material Pivoting panel in the oven or in the storage compartment. Fig. 44 Storage compartment Replacing the oven lamp Turn the power to the cooker off at the wall. Let the oven cavity and the heating elements cool down.
  • Page 41 Care and cleaning Removing and replacing the inner door glass pane for cleaning If you wish to clean the inner glass of the door, make sure you follow the precautions and instructions very carefully. Replacing the glass pane and the door incorrectly may result in damage to the appliance and may void your warranty.
  • Page 42 Care and cleaning Removing the oven door The oven door can easily be removed as follows: Open the door to the full extent (fig. 46a). Open the lever ‘A’ completely on the left and right hinges (fig. 46b). Hold the door as shown in fig. 46e. Gently close the door (fig.
  • Page 43 Care and cleaning Removing the inner pane of glass The oven door is fitted with no. 2 panes: no. 1 outside; no. 1 inner. To clean all panes on both sides it is necessary to remove the inner pane as follows: Remove the inner glass retainer Remove the oven door and place it on a soft surface.
  • Page 44 Care and cleaning Remove the inner glass pane Lift and remove the inner pane slightly, as shown in the figure 48. Fig.48 Removing the inner glass pane...
  • Page 45 Care and cleaning After cleaning, replace the inner glass pane When replacing the inner glass pane, make sure that: You replace the pane correctly, as shown. The pane must be in the position described below in order to fit into the door and to ensure that the appliance operates safely and correctly. You take extra care not to bump the edges of the glass against any object or surface.
  • Page 46 Care and cleaning Replace the glass retainer Position the glass retainer, as shown in the figure 50. It should sit on the bottom edge of the outer glass. Check that the clamps ‘M’ are not deformed or damaged. Gently push the glass retainer back into place. You should be able to hear the tabs on both sides click as they lock the glass retainer in.
  • Page 47 Care and cleaning Refit the door Hold the door firmly (fig.51a). Insert the hinge tongues into the slots, making sure that the groove drops into place as shown in the figure 51b. Open the door to its full extent. Fully close the levers ‘A’ on the left and right hinges, as shown in the figure 51c.

  • Page 48: Troubleshooting

    Troubleshooting Problem Possible solutions A burner does not light. Check the cooker is switched on at the wall. Check the gas supply valve is turned on and the supply to the house is working. You should hear the gas when you turn a burner on. Check the gas bottle is not empty.

  • Page 49: Warranty And Service

    Warranty and service Before you call for service or assistance ... Check the things you can do yourself. Refer to the installation instructions and your user guide and check that: Your product is correctly installed. You are familiar with its normal operation. If after checking these points you still need assistance, please refer to the Service &...
  • Page 52 www.fi sherpaykel.com Copyright © Fisher & Paykel 2013. All rights reserved. The product specifications in this booklet apply to the specific products and models described at the date of issue. Under our policy of continuous product improvement, these specifications may change at any time. You should therefore check with your Dealer to ensure this booklet correctly describes the product currently available.
