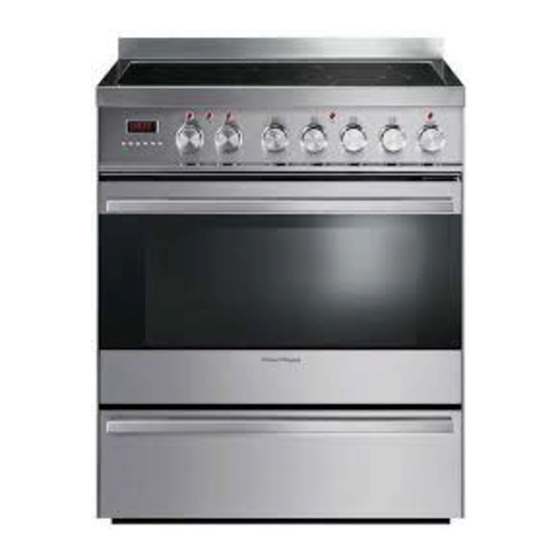

Fisher & Paykel OR30SDPWSX Installation Instructions And User Manual
  1. Manuals
  2. Brands
  3. Fisher & Paykel Manuals
  4. Kitchen Appliances
  5. OR30SDPWSX
  6. Installation instructions and user manual

Fisher & Paykel OR30SDPWSX Installation Instructions And User Manual

Freestanding cooker
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Freestanding cooker
Installation instructions
User guide
OR30SDPWSX model
and
US CA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OR30SDPWSX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fisher & Paykel OR30SDPWSX

Summary of Contents for Fisher & Paykel OR30SDPWSX

  • Page 1 Freestanding cooker Installation instructions User guide OR30SDPWSX model US CA...

  • Page 3: Table Of Contents

    Contents Safety and warnings Installation instructions First time Setting the clock Using your oven Cooking functions Cooking guide Using the electronic timer Automatic cooking Using your Ceramic glass cooktop Using the warming drawer Care and cleaning Troubleshooting Warranty and service Important! SAVE THESE INSTRUCTIONS The models shown in this User Guide may not be available in all markets and are...

  • Page 4: Safety And Warnings

    Safety and warnings Your safety is important to us. Please read this information before using your cooktop. Installation WARNING! Electrical Shock Hazard Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance on it. Connection to a good earth wiring system is essential and mandatory. Alterations to the domestic wiring system must only be made by a qualified electrician.

  • Page 5: Important Safety Instructions

    Safety and warnings IMPORTANT SAFETY INSTRUCTIONS This appliance is to be installed and connected to the electricity supply only by a qualified technician in compliance with national codes, local regulations and according to these instructions. Electrical installation (including electrical grounding) must be done in accordance with the National Electrical Code, ANSI/NFPA70 –...
  • Page 6 Safety and warnings Operation and maintenance WARNING! Electrical Shock Hazard Do not cook on a broken or cracked cooktop. If the cooktop should break or crack, cleaning solutions and spillovers may penetrate it and create a risk of electrical shock. Contact a qualified technician immediately. Failure to follow this advice may result in death or electrical shock.
  • Page 7 Safety and warnings Operation and maintenance WARNING! Fire Hazard Never leave the appliance unattended when in use. Boilover causes smoking and greasy spillovers that may ignite. NEVER try to extinguish a fire with water. Switch the appliance off at the wall and then cover the flame with a lid or fire blanket.
  • Page 8 Safety and warnings Operation and maintenance IMPORTANT SAFETY INSTRUCTIONS This appliance is designed and manufactured solely for the cooking of domestic (household) food and is not suitable for any non-domestic application and therefore should not be used in a commercial environment. The appliance warranty will be void if the appliance is used within a non-domestic environment (i.e.
  • Page 9 Safety and warnings Operation and maintenance IMPORTANT SAFETY INSTRUCTIONS CAUTION - Do not store items of interest to children in cabinets above an appliance - children climbing on the appliance to reach items could be seriously injured. If the appliance is malfunctioning, it will display an alert code: first note down the alert code (see section ‘Alert codes’...

  • Page 10: Installation Instructions

    Installation instructions Important! THIS APPLIANCE MUST BE INSTALLED BY A QUALIFIED INSTALLER. Improper installation, adjustment, alteration, services, or maintenance can cause injury or property damage. Consult a qualified installer, service agent, or the gas supplier. IMPORTANT: The use of suitable protective clothing/gloves is recommended when handling or installing this appliance.
  • Page 11 Installation instructions Dimensions and clearances The cooker must be installed no less than 2” (50 mm) away from any side walls which exceed the height of the cooktop. The cabinetry surrounding the cooker must be made of heat-resistant material and must be able to withstand temperatures of 150 °F (65 °C) above room temperature.
  • Page 12 Installation instructions Cooker overall dimensions [mm] • height (without backguard): The range CANNOT be installed directly adjacent to sidewalls, tall cabinets, tall appliances, or other side vertical MIN 35 21/32” (906 mm) - surfaces above 36” (914 mm) high. MAX 36 11/32” (923 mm) There must be a minimum of 2”...
  • Page 13 Installation instructions Moving the cooker Important! To prevent damaging the adjustable feet or lower trim, ensure the cooker is always lifted by two people. Do not lift the cooker by the door handles. DO NOT DRAG the cooker. Lift the feet clear of the floor.
  • Page 14 Installation instructions Levelling the range The range is equipped with 4 LEVELLING FEET and may be levelled by screwing or unscrewing the feet. Follow the directions below. Supplied with the range Supplied with the range in a separate kit in a separate kit 0”...
  • Page 15 Installation instructions Anti-tip stability device installation instructions the anti-tip bracket has to be attached as shown on figure below (only rear left side), it has to be fixed on the floor OR on the rear wall by no. 4 (four) suitable screws (not supplied). Alternatively the anti-tip bracket can also be fixed on the floor AND on the rear wall by no.
  • Page 16 Installation instructions Connecting the power supply cable Important! This cooker must be connected to the electricity supply only by an authorised person. Your cooker is supplied with a certified 4 prong NEMA 14-50P power cord and should be plugged directly into a properly grounded socket. Do not under any circumstances cut or remove the forth (ground) prong from the power plug.
  • Page 17 Installation instructions Wiring diagram...

  • Page 19: First Time

    First use Control panel Control buttons Right front cooking zone dial Clock display Warming drawer control dial Temperature dial Warming drawer indicator light Function dial Function indicator light Left front cooking zone dial Door lock indicator light Left rear cooking zone dial Temperature indicator light Right rear cooking zone dial Cooktop indicator light...

  • Page 20: Setting The Clock

    Setting the clock Buttons 12:00 sets the timer Indicates AM sets the cooking time Indicates PM sets the stop time for automatic cooking set the oven temperature / select Celsius or Fahrenheit decreases the time and temperature increases the time and temperature Clock display and control buttons sets the Self Clean time starts the oven/starts the Self Clean cycle...

  • Page 21: Using Your Oven

    Using your oven Before using your new oven, please: Read this user guide, taking special note of the ‘Safety and warnings’ section. Remove all accessories and packaging. Peel the protective film off all surfaces and accessories. Set the clock. The oven will not work until the clock has been set. See ‘To set the clock’ . Slide in the shelves you will need, making sure that: they are between the two wires of a shelf position;...
  • Page 22 Using your oven Tmperature Function indicator light indicator light Function and temperature dials FUNCTION TEMPERATURE 410 F 430F Select a function Adjust the temperature Rotate the function dial to select a function There are two ways to set the The function indicator light will come on. temperature while the display is The preset function temperature will flash flashing:...
  • Page 23 Using your oven When the oven is preheating and during To check the set temperature cooking Press the button. indicator will show in the display. The display will flash showing the set When the oven has reached the set temperature. temperature the indicator and the After a few seconds the display will return...

  • Page 24: Cooking Functions

    Cooking functions OVEN LAMP Only the oven light comes on. It remains on in all the cooking functions. DEFROST this is not a cooking function Only the oven fan comes on. The fan circulates air around the oven, speeding up the defrosting process by approximately 30%.
  • Page 25 Cooking functions SELF CLEAN this is not a cooking function The oven heats to a high temperature, reducing food residue to a fine ash that can be wiped out with a damp cloth. Important! Safe food handling: leave food in the oven for as short a time as possible before and after cooking or defrosting.

  • Page 26: Cooking Guide

    Cooking guide Changing the oven from Celsius to Fahrenheit You can set your oven to display the temperature in Fahrenheit or Celsius. Select a cooking function. While the display is flashing, press to reduce the oven to the minimum temperature (120 F / 50 Press...
  • Page 27 Cooking guide SAVOURY Recommended Shelf Temp (°F) Food Shelves Time (mins) Function positions Temp (°C) 350-410 15-20 Roast Chicken Single Fan Forced 180-210 min/450g 345-360 Lasagne Single Fan Bake 45-50 175-180 360-390 Quiche Single Bake 30-40 180-200 430- 480 Pizza Single Bake 10-15...

  • Page 28: Using The Electronic Timer

    Using the electronic timer You can use the timer at any time, even when 12:00 the oven is not in use. Important! The timer does NOT turn the oven off. To set the timer Press the timer button. 0:00 The time will show Press buttons or rotate the temperature dial to set the time you want (up to 3 hours in one minute steps)

  • Page 29: Automatic Cooking

    Automatic cooking To set the oven for automatic cooking 12:00 Indicates AM You can set the oven to automatically turn on later, Indicates PM cook for a preset time (cooking time), then automatically turn off at a preset stop time. Alternatively you can simply set the time of day you wish to the oven to turn off.

  • Page 30: Using Your Ceramic Glass Cooktop

    Using your ceramic glass cooktop Cooktop layout 1 2100 W dual element 2 1200 W element 3 ‘Hot surface’ indicator lights Ceramic glass cooktop The cooktop is made from ceramic glass, a tough material that is not affected by changes in temperature.
  • Page 31 Using your ceramic glass cooktop Using the elements Using the single elements To turn on a single element, push in and turn the dial clockwise or counter-clockwise to a setting between 12 (maximum) and 1 (minimum). Adjust the heat during cooking by turning the dial in either direction between 12 and 1.
  • Page 32 Using your ceramic glass cooktop Tips for using the elements Single Dual element element The ‘Element on’ indicator light glows red whenever an element is on. After an element has been turned off, its ‘Hot surface’ indicator light will glow red until the element surface has cooled down to a temperature that is safe to touch.
  • Page 33 Using your ceramic glass cooktop Cookware tips Cooking results are influenced by pot quality and size. It is essential for the base of the pot to be smooth and sit flat against the glass. Also, pot size should match the diameter of the element. Poor performance is often due to inadequate contact with the glass.

  • Page 34: Using The Warming Drawer

    Using the warming drawer Important! The warming drawer is for keeping cooked food hot only. Do not use it to warm plates. Do not use as a storage drawer. Do not use it as a space heater. Do not use the warming drawer during a self clean cycle. Note: The drawer will automatically turn off when the self clean cycle is started.
  • Page 35 Using the warming drawer Reversible rack Your warming drawer comes with a reversible rack. Position the rack as shown. Reheating food Always re-heat food until piping hot before transferring to the warming drawer. Food kept at temperatures of less than 140 F / 60 C for more than two hours are at risk of becoming contaminated by harmful bacteria.

  • Page 36: Care And Cleaning

    Care and cleaning Important! Before you start cleaning your cooker, please: Read these cleaning instructions and the ‘Safety and warnings’ section at the start of this user guide. Turn the cooker off at the wall. Make sure the cooker is a safe temperature to touch. Do not use a steam cleaner.
  • Page 37 Care and cleaning Caring for your cooktop Important! Some heavy-duty and nylon scourers can scratch the ceramic glass of your cooktop. Always read the label to check if your scourer is suitable for cleaning ceramic glass cooktops. Use ceramic glass cleaner on the cooktop while it is warm to touch. Rinse and wipe dry with a clean cloth or paper towel.
  • Page 38 Care and cleaning Cleaning the inside of your oven Note: if using the Self Clean function remove all shelves and side racks first. See ‘Using the Self Clean function’ . Do not use abrasive cleaners, cloths or pads to clean the enamel. Removing the side racks Using a small coin or a flat-head screwdriver, loosen and remove the front fixing screw only.
  • Page 39 Care and cleaning Cleaning the enamel cavity Stop notch Bigger guard rail Clean the enamel on the inside of the oven when it has cooled down, using household detergents. Dry with a soft cloth. Cleaning the broiler pan and rack and shelves Clean these in hot, soapy water.
  • Page 40 Care and cleaning Using the Self Clean function During the pyrolytic Self Clean cycle the extremely high temperature burns off and breaks down grime and grease deposits. All that is left is a small amount of grey ash that you can easily remove.
  • Page 41 Care and cleaning To start a Self Clean cycle Remove oven shelves, side racks and all other accessories, bakeware, and utensils. Wipe up any spills. Failure to do so may discolour the oven surfaces. Check the inner glass pane of the oven door. If it has soiling on it (eg stains from greasy splatter), you will need to clean it manually before starting a Self Clean cycle.
  • Page 42 Care and cleaning Select the Self Clean Function P1:30 The display will show will flash. Adjust the cycle time (optional) You may set the time between 1-1/2 hours (P1:30 and 3 hours (P3:00). For heavy soiling use a longer time. Press the button - the will go out.
  • Page 43 Care and cleaning Care and cleaning Replacing the oven light bulb Use only a bulb suitable for high temperature (300 C/ 572 F) having the following specifications: 120V, 60Hz, E14 and the same power as the one you remove (this will be stamped on the bulb). Turn off the power to the range.
  • Page 44 Care and cleaning Important! Do not remove drawer while hot. Do not remove drawer during operation. Be sure drawer is empty before removing. Removing the warming drawer Open the drawer completely. Push and hold the lever on the left guide down, and the lever on the right guide up. Remove the drawer while holding the levers in position.
  • Page 45 Care and cleaning Removing the oven door The oven door can easily be removed as follows: Open the door to its fullest extent. Open the lever “A” completely on the left and right hinges. Hold the door as shown. Gently close the door until left and right hinge levers “A” are hooked to part “B”...

  • Page 46: Troubleshooting

    Troubleshooting Problem Possible causes There is a metal sheen on the glass. This could be caused by cookware with a copper or aluminium base. Ceramic glass cleaner should remove this. If the cooktop is not cleaned after every use and the stains are allowed to burn onto the surface, they may react with the glass and no longer be removable.
  • Page 47 roubleshooting Problem Possible causes What to do The display flashes door The function dial has been Close the door and restart the turned to Self clean when the Self clean sequence. door is still open. (An alarm may also sound) The door has been opened after Close the door and restart the Self clean has been selected but...
  • Page 48 Troubleshooting Problem Possible causes What to do F000 The oven temperature sensor is Turn the function dial to OFF. The display shows F001 malfunctioning. The cooling fan Wait for the oven to cool down will remains on and if the Self completely and disconnect the cleaning cycle is in process the cooker from the mains power...

  • Page 49: Warranty And Service

    Warranty and service Before you call for service or assistance ... Check the things you can do yourself. Refer to the installation instructions and your user guide and check that: your product is correctly installed you are familiar with its normal operation. If after checking these points you still need assistance or parts, please refer to the Service &...
  • Page 52 www.fi sherpaykel.com Copyright © Fisher & Paykel 2013. All rights reserved. The product specifications in this booklet apply to the specific products and models described at the date of issue. Under our policy of continuous product improvement, these specifications may change at any time. You should therefore check with your Dealer to ensure this booklet correctly describes the product currently available.
