Chapter 7 PFI
Timing Signals

Using PFI Terminals as Timing Input Signals

NI USB-621x User Manual

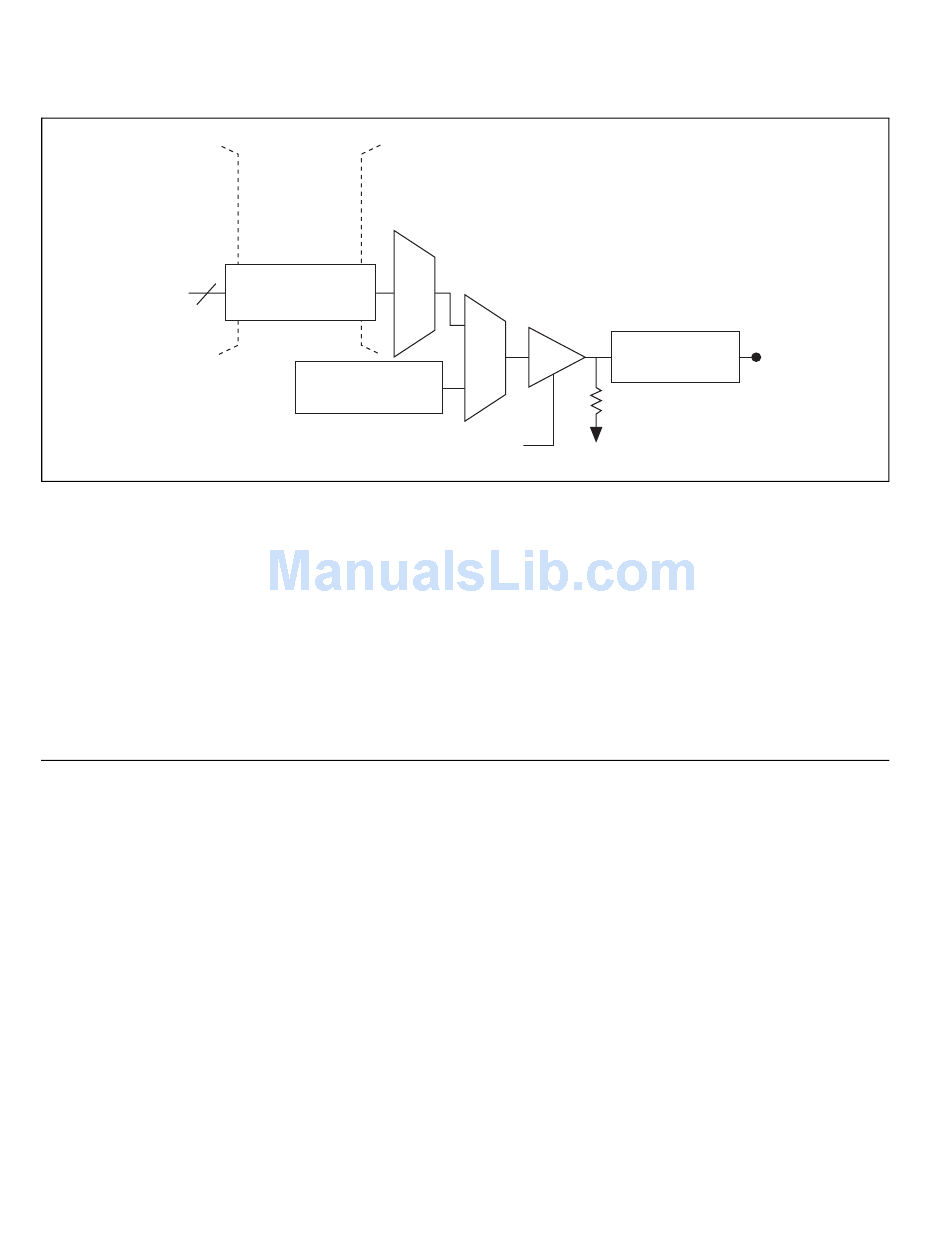

Figure 7-2 shows the circuitry of an output PFI line.
Isolation
Barrier
(USB-6215/
6216/6218
devices only)
Digital
Isolators
Static DO
Buffer
Direction Control
Figure 7-2. USB-621x PFI Output Circuitry
When a terminal is used as a timing input or output signal, it is called PFI x.
When a terminal is used as a static digital input or output, it is called P0.x,
P1.x, or P2.x.
The voltage input and output levels and the current drive levels of the PFI
signals are listed in the NI USB-621x Specifications.
Use PFI terminals to route external timing signals to many different
USB-621x functions. Each input PFI terminal can be routed to any of the
following signals:
• AI Convert Clock (ai/ConvertClock)
• AI Sample Clock (ai/SampleClock)
• AI Start Trigger (ai/StartTrigger)
• AI Reference Trigger (ai/ReferenceTrigger)
• AI Pause Trigger (ai/PauseTrigger)
• AI Sample Clock Timebase (ai/SampleClockTimebase)
• AO Start Trigger (ao/StartTrigger)
• AO Sample Clock (ao/SampleClock)
I/O Protection
47 kΩ Pull-Down
7-2
PFI/DIO Pin
ni.com
