Appendix A Device-Specific Information

USB-6211/6215

USB-6211/6215 Pinout

NI USB-621x User Manual
Figure A-2 shows the pinout of the USB-6211 and USB-6215.
For a detailed description of each signal, refer to the
Descriptions section of Chapter 3,

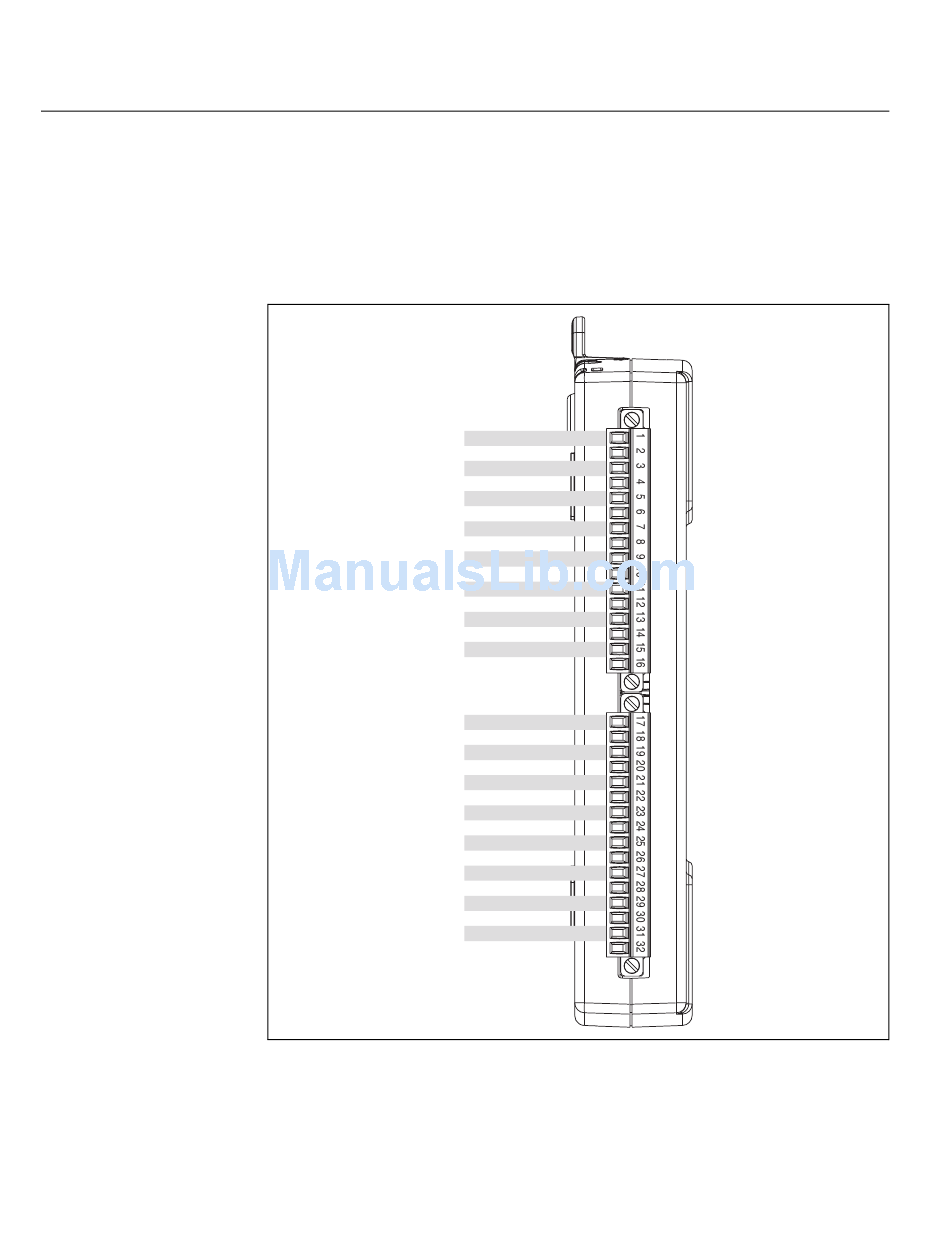

Figure A-2. USB-6211/6215 Pinout
Connector and LED
PFI 0/P0.0 (In)
PFI 1/P0.1 (In)
PFI 2/P0.2 (In)
PFI 3/P0.3 (In)
D GND
PFI 4/P1.0 (Out)
PFI 5/P1.1 (Out)
PFI 6/P1.2 (Out)
PFI 7/P1.3 (Out)
+5 V
D GND
AO 0
AO 1
AO GND
AI 0
AI 8
AI 1
AI 9
AI 2
AI 10
AI 3
AI 11
AI SENSE
AI 4
AI 12
AI 5
AI 13
AI GND
AI 6
AI 14
AI 7
AI 15
A-4
I/O Connector Signal
Information.
ni.com
