Introducing the USB Extender
The USB Extender extends the distance to your USB
device up to 50 meters.
Features and Benefits
Plug and Play, no driver installation needed
•
Powered through the USB bus, not additional power
•
adapter needed
Extends USB distance up to 50 meters via CAT5
•
cable
Transparent to user and software
•
USB 1.1 and 2.0 compliant
•
System Requirements
An available USB 1.1 or 2.0 port
•
Package Contents

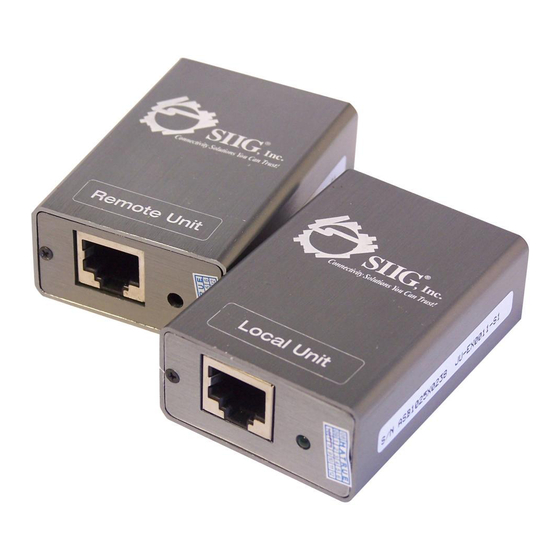

USB Extender (1-local, 1-remote)
•
USB 2.0 cable (Type A to B, 1.5M)
•
Quick Installation Guide
•
04-0481A
USB Extender
Quick Installation Guide
1
Advertisement
Table of Contents
Related Manuals for SIIG JU-EX0011-S1
Summary of Contents for SIIG JU-EX0011-S1
- Page 1 USB Extender Quick Installation Guide Introducing the USB Extender The USB Extender extends the distance to your USB device up to 50 meters. Features and Benefits Plug and Play, no driver installation needed • Powered through the USB bus, not additional power •...
-
Page 2: Hardware Installation
Layout RJ-45 Type A USB port Type B USB port RJ-45 Figure 1: USB Extender Layout • Type B USB port: connects to an available USB port on your computer • Type A USB port: plug your USB device into this port •... - Page 3 Step 1: Submit your RMA request. Go to www.siig.com, click Support, then RMA to submit a request to SIIG RMA. If the product is determined to be defective, an RMA number will be issued. Step 2: After obtaining an RMA number, ship the product.
- Page 4 6078 Stewart Avenue Fremont, CA 94538-3152, USA USB Extender is a trademark of SIIG, Inc. SIIG and the SIIG logo are registered trademarks of SIIG, Inc. Other names used in this publication are for identification only and may be trademarks of their respective companies.
