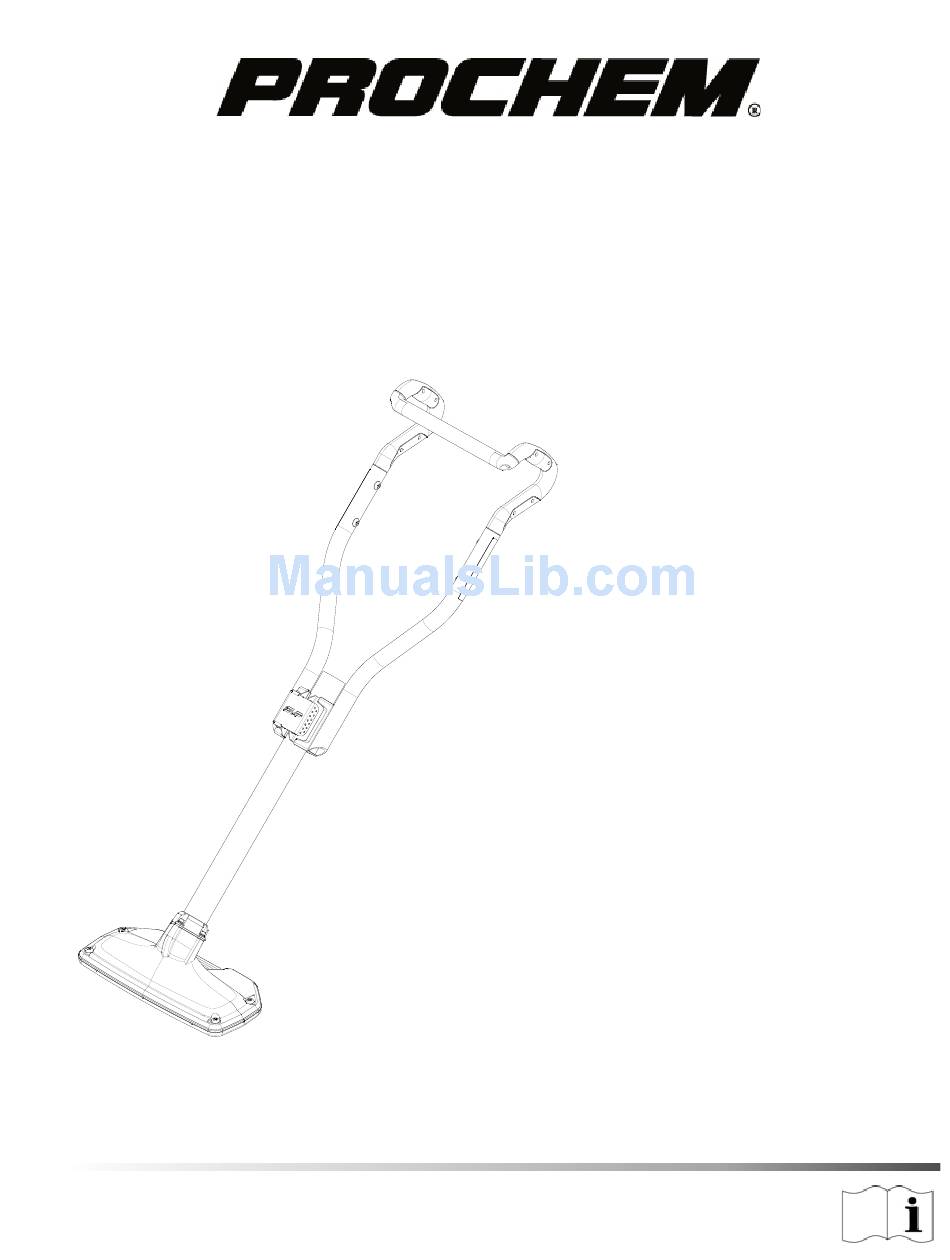

- Page 1 AQUA HELIX HIGH VOLUME EXTRACTION TOOL Operating instructions (ENG) MODEL: 8.635-000.0 Read these instructions before using the tool. 86366930-C 05/03/16...
-
Page 2: Data Label
Data Label Overview The Aqua Helix is used to extract high volumes of water from deep within carpet and padding. Warranty Registration Thank you for purchasing a Prochem product. Warranty registration is quick and easy. Your registration will allow us to serve you better over the lifetime of the product. -
Page 3: Table Of Contents
Setting Up ....... . . 7 Operation and Use ......8 86366930 Aqua Helix... -
Page 4: How To Use This Manual
The SAFETY section contains important information regarding hazardous or unsafe practices of the tool. Levels of hazards are identified that could result in product damage, personal injury, or severe injury resulting in death. 86366930 Aqua Helix... -
Page 5: Safety
Know when these conditions can exist. Locate all safety devices on the tool. Please take the necessary steps to train the operating personnel. FOR SAFETY: DO NOT OPERATE: Unless Trained and Authorized. Unless Operation Guide is Read and understood. In Flammable or Explosive areas. In areas with possible falling objects. 86366930 Aqua Helix... -
Page 6: Operation
Operation Technical Specifications ITEM SPECIFICATION Weight 10 lbs. (4.6 kg) Depth 7” (17.8 cm) Width 16” (40.6 cm) Height MIN.(STORAGE) 37” (94.0 cm) MAX. 54” (137.0 cm) Construction Aluminum, Polypropylene, Stainless Steel Depth Height Width 86366930 Aqua Helix... -
Page 7: Setting Up
4. Connect suction hose to the center vacuum tube. 2. Slide out handle assembly to desired height. NOTE: Adjust height of extraction tool so that the vacuum head is flat on the carpet while the handle is comfortably held for operator’s height. 86366930 Aqua Helix... -
Page 8: Operation And Use
5. Test carpet and pad for adequate water removal as per IICRC500 Standard and Reference Guide for Professional Water Damage Restoration. 86366930 Aqua Helix... - Page 9 Notes: 86366930 Aqua Helix...
-
Page 10: Maintenance
3. After cleaning towel dry parts or allow to air dry completely. 4. Re-assemble the extraction tool. Avoid over tight- ening the screws. 1. Handle 2. Latch, Height Adjustment 3. Vacuum Tube 4. Head Mounting Screws 5. Vacuum Head Top 6. Vacuum Head Base 86366930 Aqua Helix... -
Page 11: Parts
Parts PARTS 86366930 Aqua Helix... -
Page 12: Base
Base 86366930 Aqua Helix... - Page 13 86362870 WASHER, 1/4 X 1/2 FLAT SS 86362760 BEZEL, VAC TUBE, GRAY 86276890 SCR, 5/16-18 X 3/4 PTHMS SS 86362480 VAC HEAD, TOP 86362470 VAC HEAD, BLUE 86361900 TUBE, VACUUM, GRAY 86173340 WASHER, SPLIT LOCK, 1/4, SS 86366930 Aqua Helix...
-
Page 14: Handle
Handle 86366930 Aqua Helix... - Page 15 SCR, 5/16-18 X 1/2 SHCS SS 86362560 SCR, 5/16-18 X 7/8 PTHMS SS 86362530 LATCH, HANDLE 86292500 WASHER, .324ID X .567OD X .057, SS 86271840 NUT, 5/16-18 HEX NYLOCK THN SS 86270990 NUT, 10-32 HEX NYLOCK SS 86365360 LABEL, PROCHEM DRR 86366930 Aqua Helix...
