Summary of Contents for SICK IDM1 Series

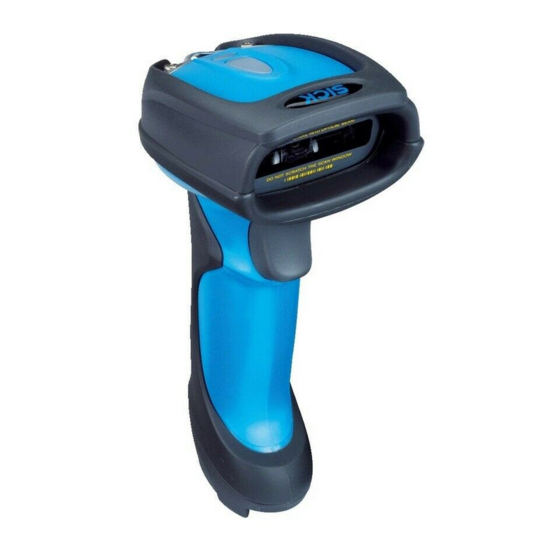

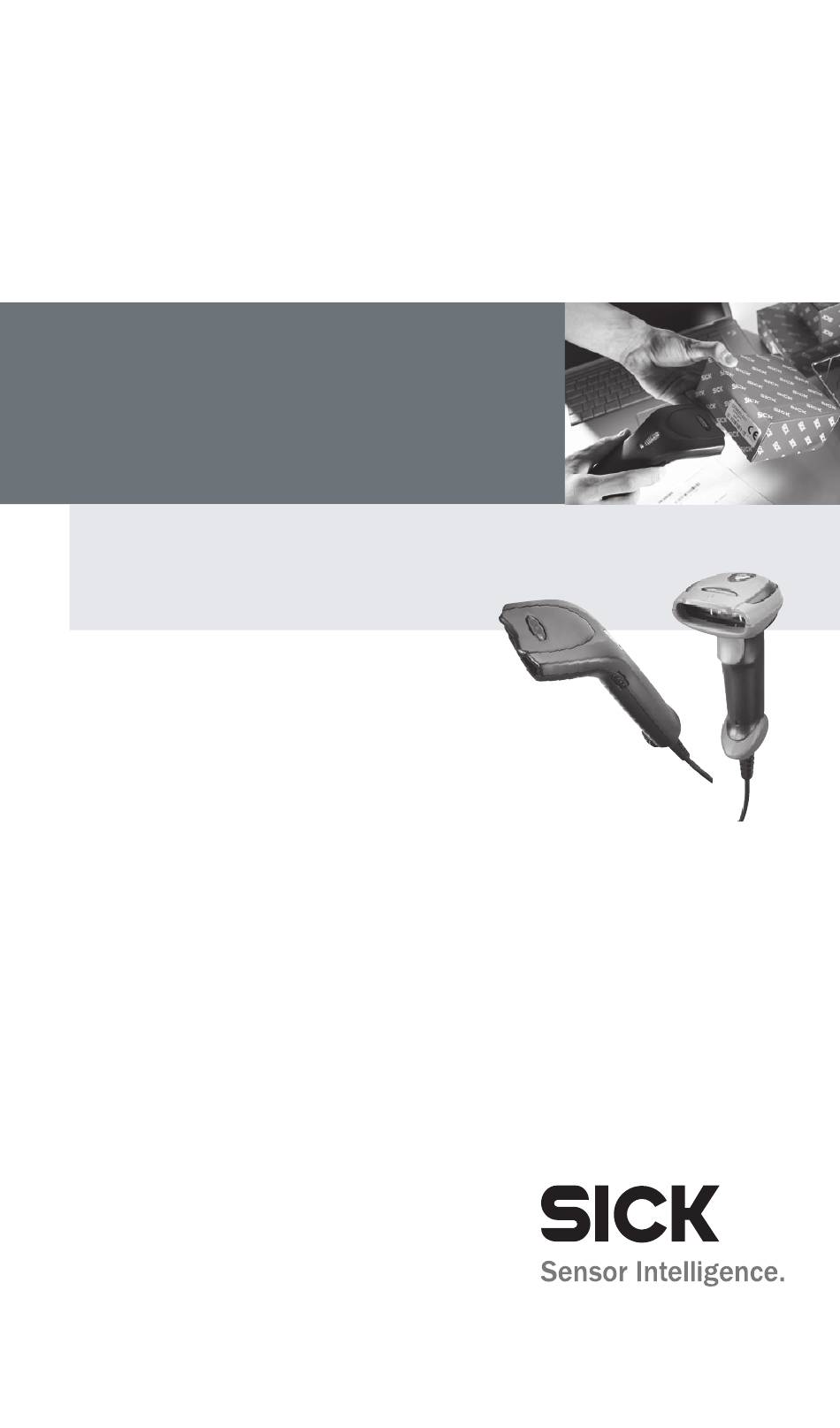

- Page 1 QUICK START IDM1xx Hand-held Scanner Hand-held Line AUDIN - 8, avenue de la malle - 51370 Saint Brice Courcelles Tel : 03.26.04.20.21 - Fax : 03.26.04.28.20 Web : http: www.audin.fr - Email : info@audin.fr...
-
Page 2: Warranty
R). Then finish by scanning the “FIN” code. To set back preamble to none scan “PROGRAMM”, “Preamble”, “FIN” and then “END” code. SICK makes no warranty of any kind with regard to this publication, including, but not limited to, the implied warranty of merchantability and fitness for any particular purpose. - Page 3 Getting familiar with your IDM Scanner Thank you for choosing SICK IDM Hand Held Scanners. All IDM Hand Held Scanners deliver reliable performance for a broad range of market applications to unleash your productivity. IDM120 Series 1. Power Indicator 2. Status Indicator 3.
-
Page 4: Connecting/Disconnecting Cable
Connecting/Disconnecting cable IDM Hand Held Scanners provide PS/2(DOS/V) Keyboard Wedge, RS-232 Serial, USB interfaces capability. To disconnect the cable, please straighten one end of a paper clip, then insert it into the cable release hole and press in. After that, you can release the cable and pull the cable out easily. IDM120 Series IDM140 Series AUDIN - 8, avenue de la malle - 51370 Saint Brice Courcelles... -
Page 5: Connecting Host Interface
PS/2(DOS/V) Keyboard Wedge RS232 Serial IDM120 and IDM140 cables: 2m, straight PS/2 cable SICK order number 6036726 1,8m, straight RS232TTL cable SICK order number 6036727 1,8m, straight USB cable SICK order number 6036728 Power Supply (needed with RS232TTL cable) -
Page 6: Keyboard Function Code Table
Keyboard function code table ANSI ASCII Key Function ANSI ASCII Key Function RESERVED CTRL (Left) ALT (Left) SHIFT CAPS LOCK NUM LOCK INS (Insert) (Edit) DEL (Delete) (Edit) BACK SPACE HOME (Edit) END (Edit) PAGE UP (Edit) PAGE DOWN (Edit) UP (Edit) ENTER (CR) DOWN (Edit) -
Page 7: Host Interface Quick Set
Host interface quick set PS/2 (DOS/V) Keyboard Wedge Keyboard Replacement USB HID Interface RS232 Serial Interface USB COM Interface (Driver needed) Operation mode quick set Low Power Mode Trigger Mode Presentation Mode Alternative Mode Flash Mode Force Mode Toggle Mode Diagnostic Mode AUDIN - 8, avenue de la malle - 51370 Saint Brice Courcelles Tel : 03.26.04.20.21 - Fax : 03.26.04.28.20... -
Page 8: Keyboard Interface Control
Keyboard interface control Command Parameter Selection Option Code Keyboard Layout USA ◆ Latin America France Italy Germany Netherlands United Kingdom-UK Denmark Canadian French Belgium Spain Switzerland-Germany Sweden/Finland Iceland Portugal Japan Norway Universal Record Suffix None ENTER RETURN ◆ User define character SPACE Preamble None ◆... -
Page 9: Serial Interface Control
Serial interface control Command Parameter Selection Option Code STX/ETX Control Disable STX/ETX transmission ◆ Enable STX/ETX transmission Record Suffix None CR ◆ SPACE User define character CRLF Preamble None ◆ 1-15 characters [00-7F], [FIN] Postamble None ◆ 1-15 characters [00-7F], [FIN] Handshaking Protocol None ◆... - Page 10 Disable all symbology ID ◆ Enable prefix SICK symbology ID Enable suffix SICK symbology ID Enable both prefix and suffix SICK symbology ID Enable prefix AIM symbology ID Enable suffix AIM symbology ID Enable both prefix and suffix AIM symbology ID Dollar Sign Output Dollar sign output as “...
- Page 11 Operation and output control (continued) Command Parameter Selection Option Code Good Read Duration Short Medium ◆ Long Extremely long Hands Free Time-out Short ◆ Medium Long Extremely long Buzzer Tone Adjust Buzzer tone – mute Buzzer tone – low Buzzer tone – medium ◆ Buzzer tone –...
-
Page 12: Option Codes
Option codes FIN (Finish) END (Exit) AUDIN - 8, avenue de la malle - 51370 Saint Brice Courcelles Tel : 03.26.04.20.21 - Fax : 03.26.04.28.20 Web : http: www.audin.fr - Email : info@audin.fr... -
Page 13: System Commands
Save User Default User Default The devices also can be configured via the “IDM Set Up Tool”. You can download this software for free on sick.com. The code below is important for the communication between scanner and software. IDM Set Up Link AUDIN - 8, avenue de la malle - 51370 Saint Brice Courcelles Tel : 03.26.04.20.21 - Fax : 03.26.04.28.20... - Page 14 Phone +47 67 81 50 00 E-Mail austefjord@sick.no www.sick.com AUDIN - 8, avenue de la malle - 51370 Saint Brice Courcelles Tel : 03.26.04.20.21 - Fax : 03.26.04.28.20 SICK AG | Waldkirch | Germany | www.sick.com Web : http: www.audin.fr - Email : info@audin.fr...
