Summary of Contents for Omega PL403A

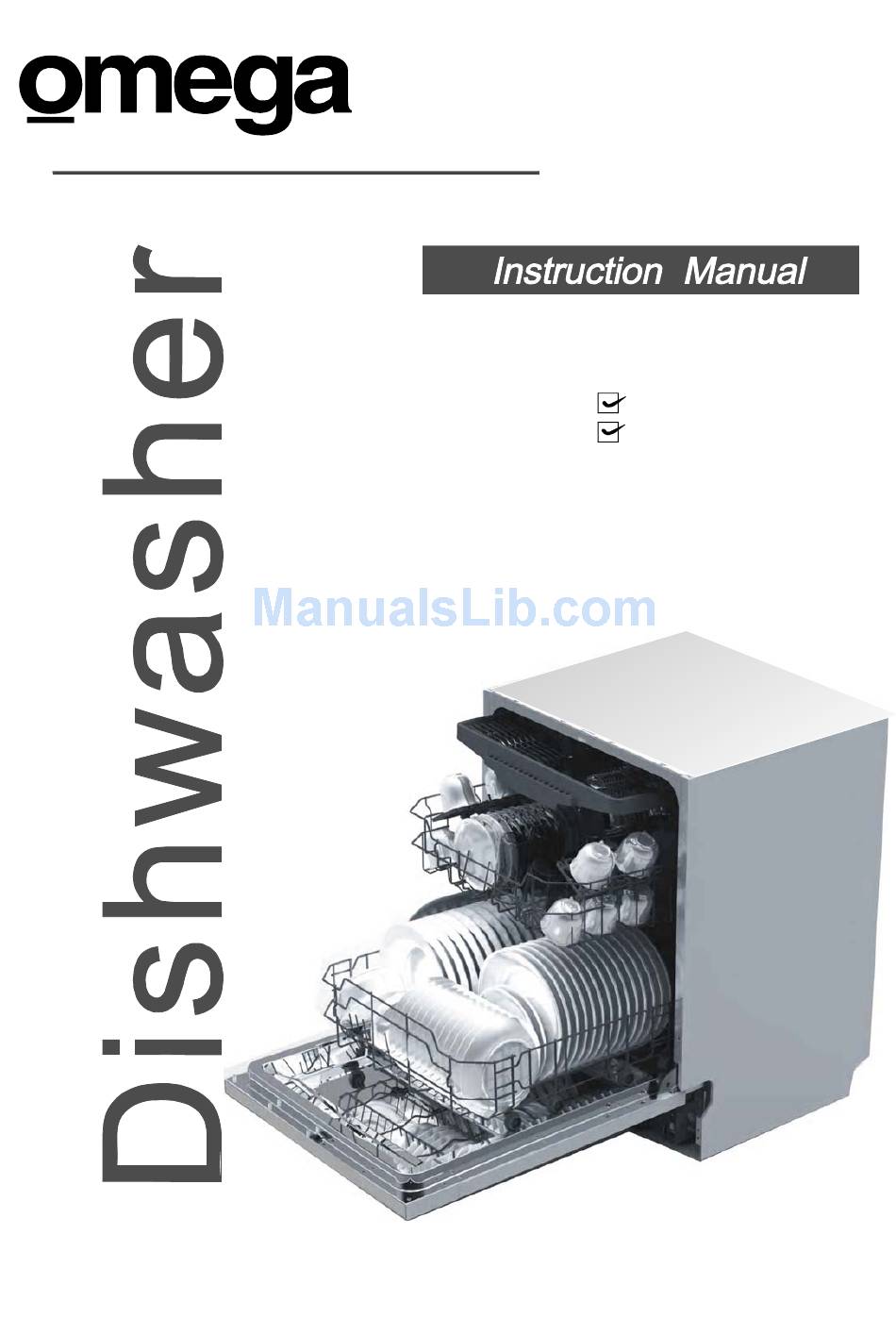

- Page 1 PL403A 14 place settings half-load function...
- Page 2 For detailed operating method read the corresponding content on the instruction manual. Switch on the appliance Press the On/Off button to switch on the appliance, Open the door. With each wash cycle. Compartment Fill the detergent dispenser For programmes with pre-wash only . (Follow the user instructions!) Check the rinse aid level Electric indicator on control panel (if provided).
-
Page 3: Table Of Contents
Dear Customer, This appliance is in tended to be used in household and similar applications such as: -staff kitch en areas in shop s, offices and other working environme nts; Control Panel...........2 -farm hous es; Dishwash er Fe atures........2 -by clients in hotels, motels and othe r residential type environments;... - Page 4 When using your dishwasher, follow the precautions listed below: This appliance must be grounded. In the event of a Improper connection of the equipment-grounding malfunction or breakdown, grounding will reduce conductor can result in the risk of an electric shock. the risk of an electric shock by providing a path of Check with a qualified electrician or service least resistance of electric current.
-
Page 5: Control Panel
To get the best performance from your dishwasher, read all operating instructions before using it for the first time. Option 6. Delay ind icators: to show the delay time (3h/6h/9h ) 1. On/Off Button: To turn on/off the power supply. Rinse aid warning lights: To show 2. -
Page 6: A F Ill The Rinse Aid Dispenser
Before using your dishwas her for the first time: Fill th e rinse a id dispenser Fill in detergent Rinse Aid Dispenser The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. -
Page 7: B Functio N Of Detergent
Clean up any rinse aid spilled while during filling with an absorbent cloth to avoid excessive foaming during the next wash. Don't forget to repla ce the cap before you close dishwasher door. Adjusting Rinse Aid Dispenser The rinse aid dispenser has six or four settings. Always start with the dispenser set on "4". -
Page 8: Amount Of Detergent To Use
Amount of Detergent to Use If th e lid is close d: press rele ase button. The lid will spring ope n. Always add the dete rgent just before starting each wash cycle. Only use branded detergent aid for d ishwash er. Dishwasher detergent is corrosive! Take care to keep it ou t of reach of c hildren. -
Page 9: Attention Before O R After Loading The Dishwasher Ba Skets
Consider buying utensils which are identified as dishwasher-proof. Use a mild detergent that is described as 'kind to dishes'. If necessary, seek further information from the detergent manufacturers. For particular items, select a program with as low a temperature as possible. To prevent damage, do not take gla ss a nd c utlery out of the dishwasher immediately after the programme h as ended. -
Page 10: The Method Loading Normal Dishware
The u pper basket is designed to hold more delicate We suggest that you place large items and the most difficult and lighter dishware such as glasses, coffee and to clea n items into the lower basket: such as pots, pans, lids, tea cups and saucers, as well as plates, small bowls serving dishes and bowls, as shown in the figure below. -
Page 11: Max. Dishes
Cutlery should be placed in the cutlery ra ck separately from each other in the appropriate positions, and do make sure the utensils do not nest to gether, this may cause bad performa nce. Max. Dishes Max. Dishes Top basket Bottom basket 25cm 19cm... -
Page 12: Wash Cycle Table
5.Starting a washing program 5.Starting a washing program Wash Cycle Table Wash Cycle Table Means: need to fill rinse into the Rinse-Aid Dispenser. NOTE: NOTE: Detergent Detergent Description Description Cycle Selection Cycle Selection Running Running Rinse Rinse Energy Energy Water Water Program Program... -
Page 13: Change The Programme
When you press the Start/Pause button to pause during washing, the running indicator will stop blinking and the dishwasher will mooing every minute unless you press the Start/Pause button to start. Premise: A cycle that is underway can on ly be modified if it has only been running for a short time. Otherwise, the detergent may have already be en released, a nd the appliance may have already drained the wash water. -
Page 14: Filtering System
The filter prevents larger remnants of food or other objects from getting inside the pump. The residues may block the filter, in this case they must be removed. The filter system consists of a coarse filter,a flat (Main filter) And a microfilter(Fine filter). Main filter Fo od and soil particles trap ped in this filter are pulverized by a specia l jet on the lower spray arm and washed down to drain. -
Page 15: Cleaning The Filter
Remarks: - Inspect the filters for blo cking a fter e very time the dishwa sher has been used. - By unscrewing the coarse filter, you can remove the filter system. Re move any foo d remna nts and clean the filters under running water. The entire filter assembly should be cleaned once a week. -
Page 16: Installation Preparation
After Every Wash When not in Use for a LongTime It is recommend that you run a was h cy cle with the After every wash, turn off the water supply to the dishwasher empty an d the n remove the plug from the appliance and leave the door slightly open so that socket, turn off the wa ter supply and leave the door of moisture and odours are not trapped inside. -
Page 17: Aesthetic Panel's Dimensions And Installation
Please carefully read the installation instruction. ● Illustrations of cabinet dimensions and installation position of the dishwasher Preparations should be made before moving the dishwasher to the installation place. Choose a place near the sink to facilitate the installation of inlet and drain hoses (see figure 1). - Page 18 magical paster A and magical paster B be disjoinedon ,magical paster A on the aesthetic wooden panel and felted magical paster B of the outer door of dishwasher(see f igure 4a). After positioning of the panel , fix the panel onto t he outer door by screws and bolts(See figure 4b) 【...
-
Page 19: Tension Adjustment Of The Door Spring
● Tension adjustment of the door spring The door springs are set at the factory to the proper tension for the outer door. If aesthetic wooden panel are installed, you will have to adjust the door spring tension. Rotate the adjusting screw to drive the adjustor to strain or relax the steel cable (see figure 5). -
Page 20: Dishwasher Installation Steps
Dishwasher installation steps ● Install the furniture door to the outer door of the dishwasher using the brackets provided. Refer to the template for positioning of the brackets. Adjust the tension of the door springs by using an Allen key turning in a clockwise motion to tighten the left and right door springs. -
Page 21: About Electricity Connecting
Dishwasher must be level for proper dish rack operation and wash performance. Place a spirit level on door and rack track inside the tub as shown to check that the dishwasher is level. level the dishwasher by adjusting the three levelling legs individually. When level the dishwasher, please pay attention not to let the dishwasher tip over. -
Page 22: Cold Water Connection
Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place. If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear. - Page 23 Fuse blown, or the circuit breaker has Replace fuse or reset circuit breaker. Remove any other appliances sharing the same circuit with the dishwasher been triggered Make sure the dishwasher is turned on and the door is Power supply is not closed securely.
-
Page 24: Error Codes
The dishes were not See notes in " Loading the Dishwasher Baskets ". loaded correctly. The programme was Select a more intensive programme. not powerful enough. See" Wash Cycle Table . " Not enough detergent Use more detergent, or change your detergent. was dispensed. - Page 25 If overflow occurs, turn off the main water supply before calling a service. If there is water in the base pan because of an overfill or small leak, the water should be removed before restarting the dishwasher. Height : 815mm Width : 598 mm Depth :...
