Summary of Contents for Omega OFI604A

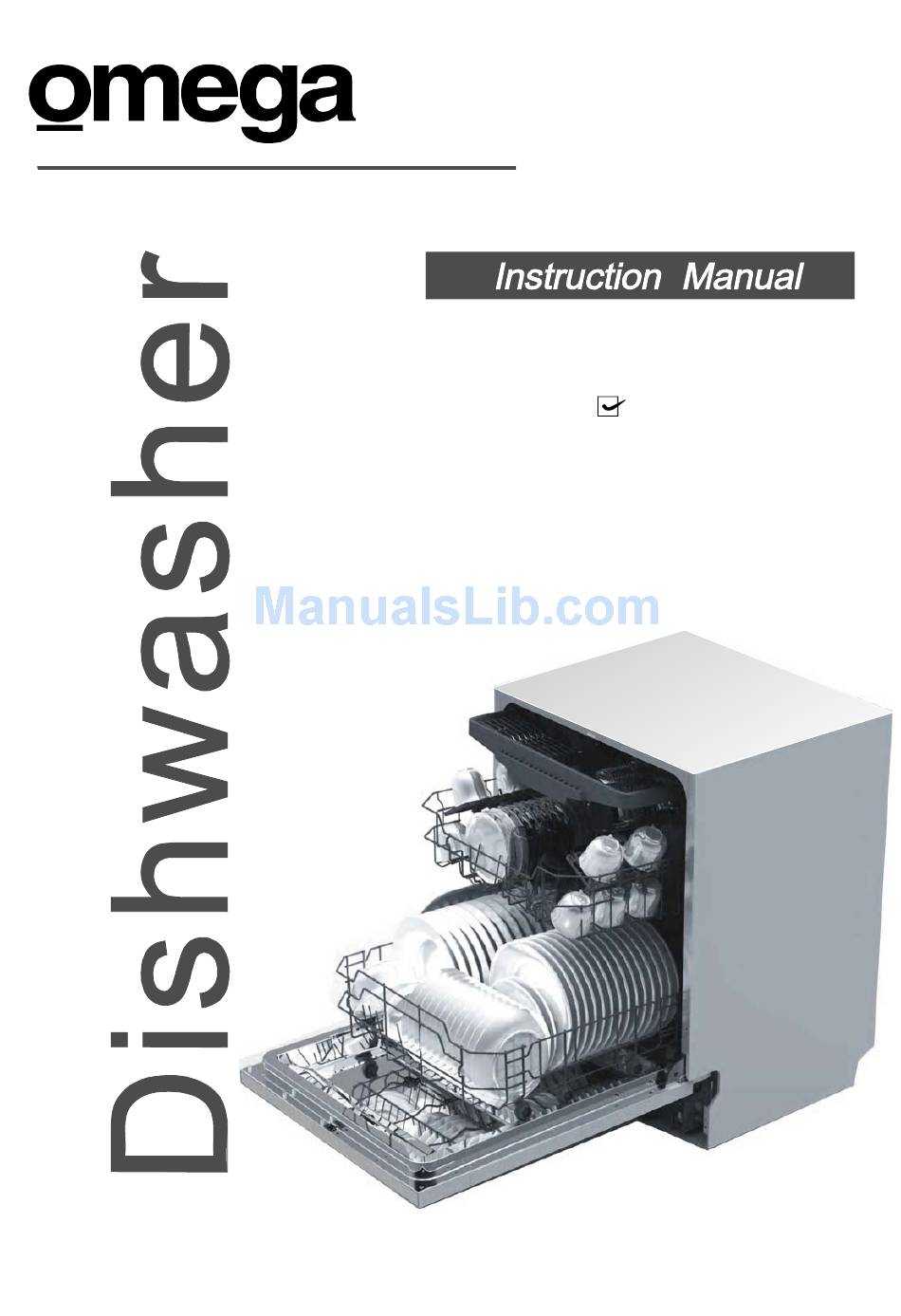

- Page 1 OFI604A 14 place settings...
-
Page 2: Control Panel
For detailed operating method read the corresponding content on the instruction manual. Switch on the appliance Open the door,press the On/Off button to switch on the appliance . With each wash cycle. Compartment Fill the detergent dispenser For programmes with pre-wash only. (Follow the user instructions!) Check the rinse aid level Electric indicator on control panel (if provided). - Page 3 Dear Customer, This appliance is in tended to be used in household and similar app lications such as: -staff kitch en areas in shop s, offices and other workin g en viron ments; -farm hous es; -by clients in hotels, motels and othe r residential type environments; -bed and breakfast type environments.
-
Page 4: Table Of Contents
CONTENTS Control Panel............................2 Dishwasher Features..........................2 、 A F ill the Rinse Aid Dispenser......................、 B Function of Deterg ent ........................4 Attention before or after loading the Dishwasher Ba skets..............................6 The Method Loading Normal Dish ware ...... - Page 5 When using your dishwasher, follow the precautions listed below: This appliance must be grounded. In the event of a Improper connection of the equipment-grounding malfunction or breakdown, grounding will reduce conductor can result in the risk of an electric shock. the risk of an electric shock by providing a path of Check with a qualified electrician or service least resistance of electric current.
- Page 6 To get the best performance from your dishwasher, read all operating instructions before using it for the first time. 1.Power indicator: To show when the power on. 5.Program indicators: To show which program you have chosen; 2.Rins e a id warning light:To sh ow dispenser need to be re filled Rinse aid.
-
Page 7: A F Ill The Rinse Aid Dispenser
Before using your dishwas her for the first time: Fill th e rinse a id dispenser Fill in detergent Rinse Aid Dispenser The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. -
Page 8: Adjusting Rinse Aid Dispenser
Adjusting Rinse Aid Dispenser The rinse aid dispenser has six or four settings. Always start with the dispenser set on "4". If spots and poor drying are a pro ble m, increase the amount of rinse aid dispensed by removing the dispe nser lid and rotating the dial to "5". If the dishes still are not drying properly or are showing spots, adjust the dial to the next higher lever until your dishes are spot-free. -
Page 9: Amount Of Detergent To Use
Amount of Detergent to Use If th e lid is close d: press rele ase button. The lid will spring ope n. Always add the dete rgent just before starting each wash cycle. Only use branded detergent aid for d ishwash er. Dishwasher detergent is corrosive! Take care to keep it ou t of reach of c hildren. - Page 10 Consider buying utensils which are identified as dishwasher-proof. Use a mild detergent that is described as 'kind to dishes'. If necessary, seek further information from the detergent manufacturers. For particular items, select a program with as low a temperature as possible. To prevent damage, do not take gla ss a nd c utlery out of the dishwasher immediately after the programme h as ended.
-
Page 11: Folding Back The Cup Shelves
The u pper basket is designed to hold more delicate We suggest that you place large items and the most difficult and lighter dishware such as glasses, coffee and to clea n items into the lower basket: such as pots, pans, lids, tea cups and saucers, as well as plates, small bowls serving dishes and bowls, as shown in the figure below. -
Page 12: Max. Dishes
Cutlery should be placed in the cutlery rack separately fro m each other in the appropriate positions, and do make sure the utensils do n ot nest together, this may cause bad performance. Fo r a top quality cle aning, p lace the silverware in the basket making sure tha t: They do not nest together. - Page 13 Means: need to fill rinse into the Rinse-Aid Dispenser. ℃ Pre-wash(50 ) For the heaviest soiled ℃ Wash (65 loads, such as pots, pans, Intensive 5/27.5g Rinse casserole dishes and dishes (Or All Rinse that have been sitting with ℃ Rinse(65 ) dried food on them for a Drying...
-
Page 14: Unloading The Dishwasher
Premise: A cycle that is underway can only be modified if it has only been running for a short time. Otherwise, the detergent may have already been released, and the appliance may have already drained the wash wa ter. If this is the case, the detergent dispenser must be refilled (see the section entitled " Loading the Detergent "... -
Page 15: Filter Assembly
The filter prevents larger remnants of food or other objects from getting inside the pump. The residues may block the filter, in this case they must be removed. The filter system consists of a coarse filter,a flat (Main filter) And a microfilter(Fine filter). Main filter Fo od and soil particles trap ped in this filter are pulverized by a specia l jet on the lower spray arm and washed down to drain. -
Page 16: Cleaning The Filter
Remarks: - Inspect the filters for blo cking a fter e very time the dishwa sher has been used. - By unscrewing the coarse filter, you can remove the filter system. Re move any foo d remna nts and clean the filters under running water. The entire filter assembly should be cleaned once a week. -
Page 17: Installation Preparation
After Every Wash When not in Use for a LongTime It is recommend that you run a was h cy cle with the After every wash, turn off the water supply to the dishwasher empty an d the n remove the plug from the appliance and leave the door slightly open so that socket, turn off the wa ter supply and leave the door of moisture and odours are not trapped inside. -
Page 18: Aesthetic Panel's Dimensions And Installation
Please carefully read the installation instruction. Illustrations of cabinet dimen sions and installa tion position of the dishwasher Preparations should b e made befo re moving the dishwasher to the installation place. Choose a place near the sink to facilita te the installation of inlet and drain hoses (see figure 1). - Page 19 2 Install the hook on the aesthet ic wooden panel and put the hook into the slot of the outer door of dishwasher(see figure 4a). Af ter positioning of the panel , fix the panel onto the outer door by screws and bolts(See figure 4b) .
-
Page 20: Tension Adjustment Of The Door Spring
● Tension adjustment of the door spring The door springs are set at the factory to the proper tension for the outer door. If aesthetic wooden panel are installed, you will have to adjust the door spring tension. Rotate the adjusting screw to drive the adjustor to strain or relax the steel cable (see figure 5). -
Page 21: Dishwasher Installation Steps
Dishwasher installation steps ● Install the furniture door to the outer door of the dishwasher using the brackets provided. Refer to the template for positioning of the brackets. Adjust the tension of the door springs by using an Allen key turning in a clockwise motion to tighten the left and right door springs. - Page 22 Dishwasher must be level for proper dish rack operation and wash performance. Place a spirit level on door and rack track inside the tub as shown to check that the dishwasher is level. level the dishwasher by adjusting the three levelling legs individually. When level the dishwasher, please pay attention not to let the dishwasher tip over.
-
Page 23: Positioning The Appliance
Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place. If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear. - Page 24 Fuse blown, or the home Replace fuse or reset circuit breaker. Remove any other circuit breaker has been appliances sharing the same circuit with the dishwasher triggered Make sure the dishwasher is turned on and the door is Power supply is not closed securely.
-
Page 25: Error Codes
The dishes were not See notes in " Loading the Dishwasher Baskets ". loaded correctly. The programme was Select a more intensive programme. not powerful enough. See" Wash Cycle Table . " Not enough detergent Use more detergent, or change your detergent. was dispensed. - Page 26 If overflow occurs, turn off the main water supply before calling a service. If there is water in the base pan because of an overfill or small leak, the water should be removed before restarting the dishwasher. Height : 815mm Width : 598 mm Depth :...
