Summary of Contents for Omega ODW600S

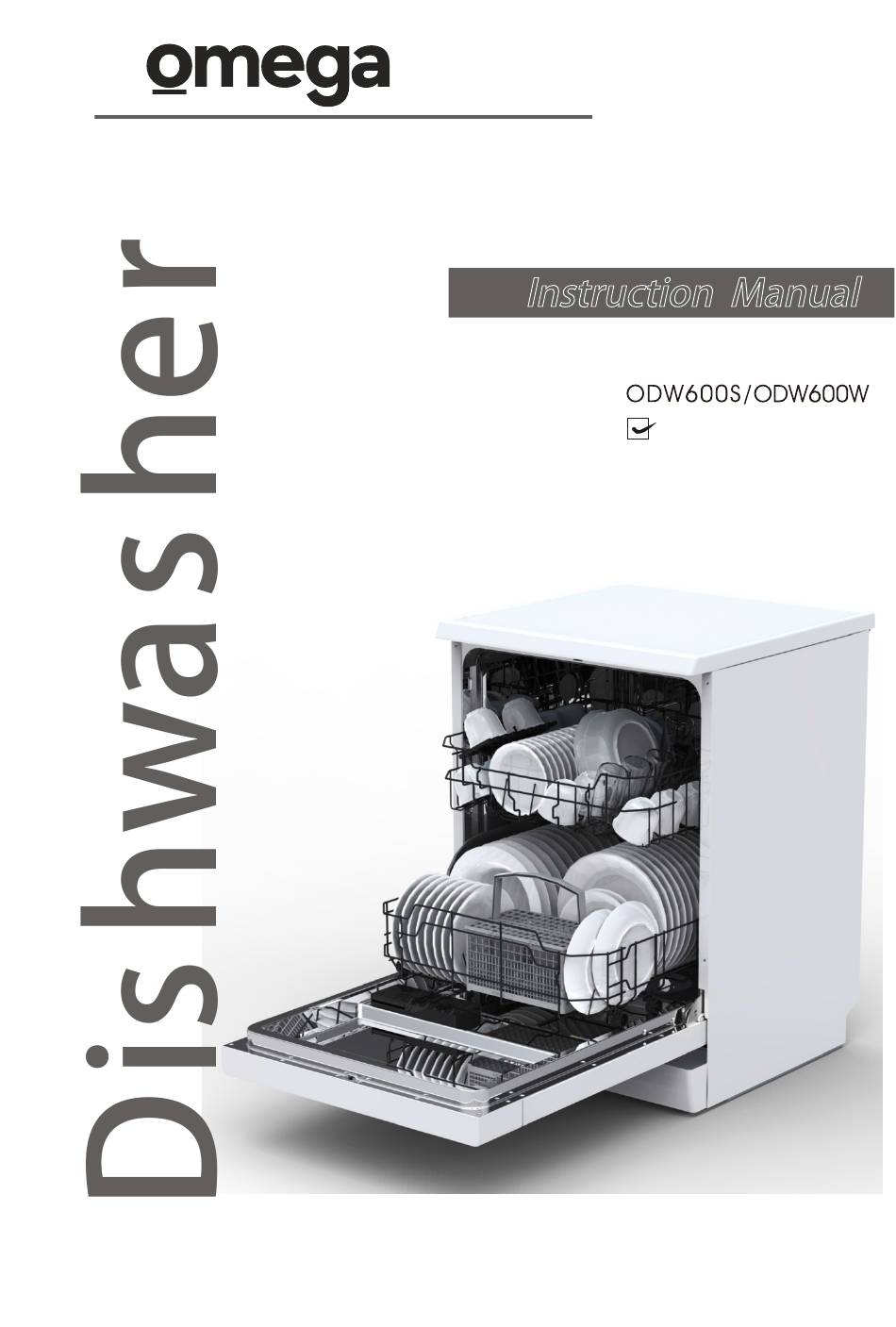

- Page 1 Instruction Manual 12 place settings...
- Page 2 You are welcoming an Omega appliance into your place and you can be sure it'll always serve you well. For important information about your Omega such as warranty registration, online manuals, specifications and catalogues, please visit...
- Page 3 Quick Operation Guide...
- Page 5 Quick Operation Guide Quick Operation Guide For detailed operating method read the corresponding content on the instruction manual. Switch on the appliance Open the door, press the On/Off button to switch on the appliance. Compartment A: Compartment A: For each wash cycle. Compartment B: Fill the detergent dispenser For programs with pre-wash only.
-
Page 6: Control Panel
2.Operation Instruction 2.Operation Instruction IMPORTANT IMPORTANT To get the best performance from your dishwasher, read all operating instructions before using it for the first time. Control Panel Control Panel 9.Half load functions Button: To select Half load functions. 1.On/Off Button: To turn on/off the power supply. (With this Half load function you can only use it when you have only about or less than 6 place setting dish ware, 2.Delay Button : To... -
Page 7: How To Fill The Rinse Aid Dispenser
Prior Prior using for the first time using for the first time Before using your dishwasher for the first time: Fill the rinse aid dispenser Fill in detergent A. Rinse Aid Dispenser A. Rinse Aid Dispenser Rinse Aid Dispenser The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. - Page 8 NOTE: NOTE: Clean up any rinse aid spilled while during filling with an absorbent cloth to avoid excessive foaming during the next wash. Don't forget to replace the cap before you close dishwasher door. Adjusting Rinse Aid Dispenser The rinse aid dispenser has six or four settings. Always start with the dispenser Adjust lever Adjust lever set on "4".
-
Page 9: Proper Use Of Detergent
Proper Use of Detergent Use only detergent specifically made for the use in dishwashers. Keep your detergent fresh and dry. Don't put powdered detergent into the dispenser until you're ready to wash dishes. Adding detergent to dispenser Push latch to open Push latch to open Fill in Detergent Fill the detergent dispenser with detergent. -
Page 10: Attention Before Or After Loading The Dishwasher Baskets
4.Loading the Dishwasher Baskets 4.Loading the Dishwasher Baskets Recommendation Recommendation Consider buying utensils which are identified as dishwasher-proof. Use a mild detergent that is described as 'kind to dishes'. If necessary, seek further information from the detergent manufacturers. For particular items, select a program with as low temperature as possible. To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the program has ended. - Page 11 The Method Loading Normal Dishware The Method Loading Normal Dishware Loading the Lower Basket Loading the Lower Basket Loading the Upper Basket Loading the Upper Basket The upper basket is designed to hold more delicate We suggest that you place large items and the most and lighter dishware such as glasses, coffee and difficult to clean items are to be placed into the lower tea cups and saucers, as well as plates, small bowls...
-
Page 12: Starting A Washing Program
5.Starting a washing program 5.Starting a washing program Wash Cycle Table Wash Cycle Table Means: need to fill rinse aid into the Rinse-Aid Dispenser. NOTE: NOTE: Detergent Detergent Cycle Selection Cycle Selection Description Description Running Running Energy Energy Rinse Rinse Water Water Program... -
Page 13: Change The Program
Change the Program Change the Program Premise: A cycle that is underway can only be modified if it has only been running for a short time. Otherwise, the detergent may have already been released, and the appliance may have already drained the wash water. In this case, the detergent dispenser must be refilled (see the section entitled "... -
Page 14: Maintenance And Cleaning
6.Maintenance and Cleaning 6.Maintenance and Cleaning Filtering System Filtering System The filter prevents larger remnants of food or other objects from getting inside the pum. The residues may block the filter, in this case they must be removed. The filter system consists of a coarse filter, a flat (Main filter) and a microfilter(Fine filter). - Page 15 Notes: - Inspect the filters for blocking after every time the dishwasher has been used. - By unscrewing the coarse filter, you can remove the filter system. Remove any food remnants and clean the filters under running water. NOTE: NOTE: The entire filter assembly should be cleaned once a week.
-
Page 16: Installation Instruction
How to Keep Your Dishwasher in Shape When not in Use for a LongTime After Every Wash It is recommend that you run a wash cycle with the After every wash, turn off the water supply to the dishwasher empty and then remove the plug from the appliance and leave the door slightly open so that socket, turn off the water supply and leave the door of moisture and odours are not trapped inside. -
Page 17: Drain Hose Connection
Improper connection of the equipment earthing conductor can result in the risk of an WARNING! WARNING! for personal safety: electric shock. DO NOT USE AN EXTENSION CORD OR AN ADAPTER PLUG WITH THIS APPLIANCE. Check with a qualified electrician or service representative if you are in doubt whether the DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR REMOVE THE EARTHING appliance is properly earthed. -
Page 18: Start Of Dishwasher
How to Drain Excess Water From Hoses If the sink is more than 1000mm higher than the floor, the excess water in hoses cannot be drained directly into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable container that is held outside and lower than the sink. -
Page 19: Troubleshooting Tips
8.Troubleshooting Tips 8.Troubleshooting Tips Before Calling for Service Before Calling for Service Review the charts on the following pages may save you from calling for service. Problem Possible CausesWhat To Do Dishwasher doesn't Fuse blown, or the Replace fuse or reset circuit breaker. Remove any other circuit breaker acted appliances sharing the same circuit with the dishwasher start... -
Page 20: Error Codes
Problem Possible Causes What To Do The dishes The dishes were not See notes in " Loading the Dishwasher Baskets ". loaded correctly. are not clean The program was Select a more intensive programme. not powerful enough. See" Wash Cycle Table ". Not enough detergent Use more detergent, or change your detergent. -
Page 21: Technical Information
If overflow occurs, turn off the main water supply before calling a service. If there is water in the base pan because of an overfill or small leaks, WARNING! WARNING! the water should be removed before restarting the dishwasher. Technical Information Technical Information Height : 845mm... - Page 23 Head office: 104 Vanessa Street, Kingsgrove NSW 2208. Address: 231 Bush road, Albany, North Shore City, Phone: (02) 9415 5000. Auckland, New Zealand 0632. Customer care: 1300 739 033. Phone: (09) 415 6000.
