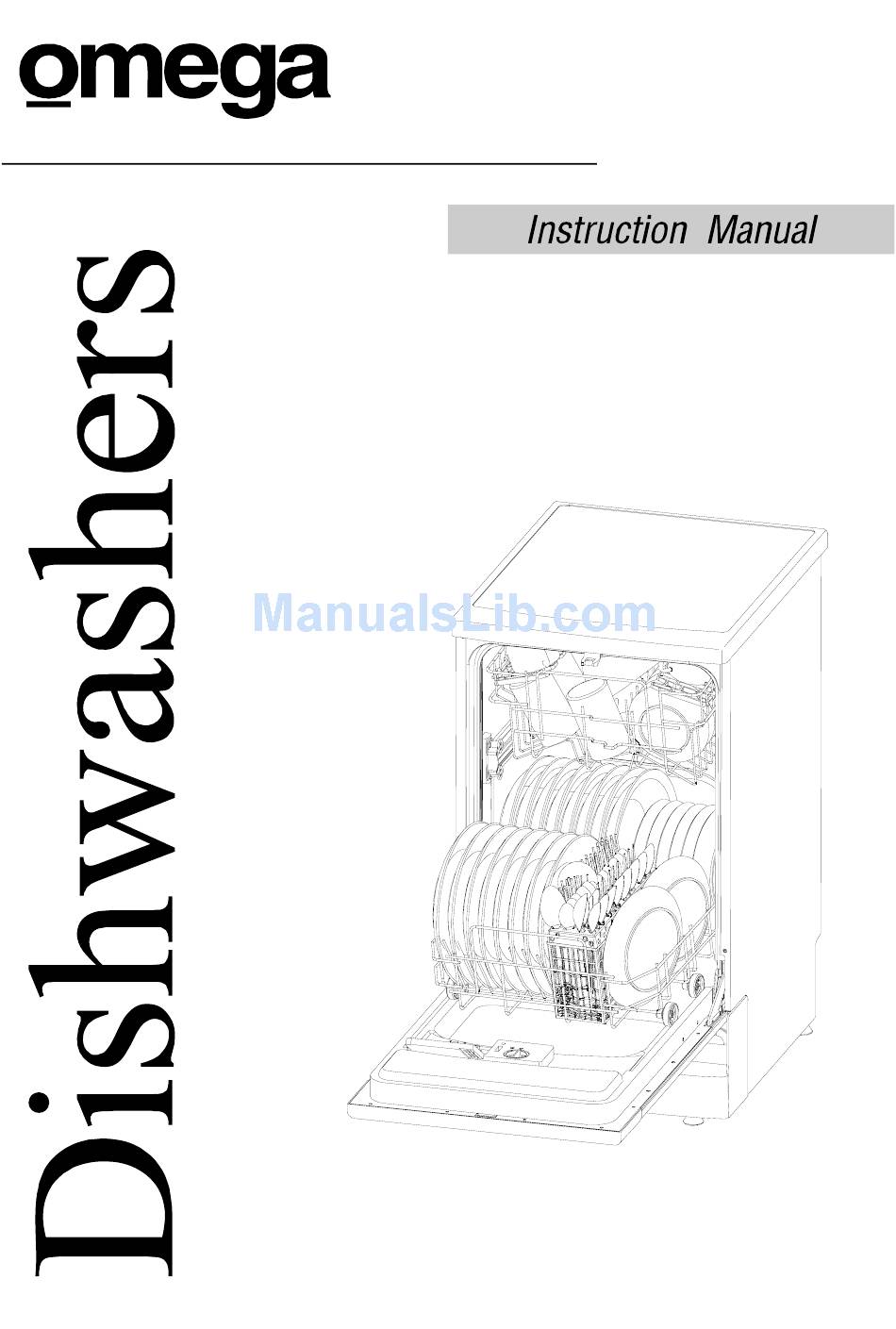

- Page 1 DW300XA...
-
Page 2: Table Of Contents
Dear C st mer, Please read this User Information carefully and keep it to refer to at a later date. Pass it on to any subsequent owner of the appliance. Control Panel............2 Dishwash er Features...........2 This manual contains sections of Safety Instructions, Operatin g Instructions, Installation Instructions and Troubleshooting Tips etc. - Page 3 Under certain conditions, Hydrogen gas may be produced in a hot-water system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE.If the hot-water system has not been used for such a period, before using the dishwasher turn on all hot-water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas.
-
Page 4: Rinse Aid
To get the best performance from your dishwasher,read all operating instructions before using it for the first time. In tensive Heavy Rinse No rmal Rapid O FF 1 ON/OFF Button: To turn ON/OFF the power supply. 5 Door Handle: Pull it to open the door. 2 Power Light : To come on when the ON/OFF Button is 6 Washing Program Selector: Turn the knob clockwise Pressed down. - Page 5 Before usi ng your dishwasher for the first time: A. Fill the rinse aid dispenser B. Function of detergent Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, spot and streak free drying. Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other substances (e.g.
- Page 6 Detergents with its chemical ingredients are necessary to remove dirt, crush dirt and transport it out of the dishwasher. Most of commercial quality detergents are suitable for this purpose. Concentrated Detergent Based on their chemical composition, dishwasher can be split in two basic types: conventional, alkaline detergents wi th caustic components low alkaline concentrated detergents with natural enzymes The use of “heavy”...
-
Page 7: Detergent
Fill in detergent Fill the detergent dispenser with detergent. The marki ng indicates the dosing levels , as illustrated on right: The place of main wash cycle detergent placed , “MIN”means approximately 20g of detergen. The place of pre-wash cycle detergent placed , approximately 5g of detergent Please observe the manufacturers dosing and storage recommendations as stated on the detergent packaging. - Page 8 Your dishwasher has a 3 in 1 program which needs not salt and rinse aid but a 3 In1 tablet. And this dishwasher comes with a 3 in 1 tablet container as an accessory. NOTE: Only 3 in 1 program uses 3 in 1 tablet. If using 3 in 1 tablet in other programs, the appliance will not get a best performance.
-
Page 9: Attention Before Or After Loading The Dishwasher Racks
For best performance of the dishwasher, follow these loading guidelines. Features and appearance of racks and silverware baskets may vary from your model. Attention before or after Loading the Dishwasher Racks Scrape off any large amounts of leftover food. It is not necessary to rinse the dishes under running water. - Page 10 We recommend that you place large items which are most difficult to clean in to the low er rack: pots, pans, lids, serving dishes and bowls, as shown in the figure to the right. It is preferable to place serving dishes and lids on the side of the racks in order to avoi d blocking the rotation of the top spray arm.
- Page 11 Silverware Basket Silverware should be placed in the silverware basket with handles at the bottom: If the rack has side baskets, the spoon should be loaded individually into the appropriate slots, especially long utensils should be placed in the horizontal position at the front of the upper rack.
-
Page 12: At The End Of The Wash Cycle
shes and items of cutlery must not lie inside one another, or cover each othe r avoid damage to glasses, they must not touch Load large items which are most difficult to clean into the lower rack he upper rack is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups Attention! Long bladed knives stored in an upri ght position are a potential hazard! - Page 13 For the heaviest soiled loads, Pre-wash such as pots,pans,casserole -wash( 0℃ Intensive dishes and dishes that have Wash (60 ℃) 4/20 g. 1.10 12.9 been si tting with dried food Rinse (70 ℃) Drying on them for a while. Pre-wash For heavy soiled loads, Pre-wash Heavy...
-
Page 14: Turning On The Appliance
Turning on the Appliance Starting a wash cycle... Draw out the lower and upper basket, load the dishes and push them back. It is commended that loading the lower basket first, than the upper one (see the secti on entitled “Loading the Dishwasher”). -
Page 15: Filtering System
A forgotten dish can be added any time before the detergent cup opens. Open the door a little to stop the washing. Add forgotten dishes. After the spray arms stop working, you can open the door Close the door, the dishwasher will work after ten seconds. completely. -
Page 16: Cleaning The Spray Arms
Cleaning the Spray Arms It is necessary to clean the spray arms regularly for hard water chemicals will clog the spray arm jets and bearings. To remove the spray arms, screw off the nut clockwise to take out the washer on top of the spray arm and remove the arm. Wash the arms in soapy and warm water and use a soft brush to clean the jets. - Page 17 After every wash, turn off the water supply to the When you go on holiday, it is recommened that you run a appliance and l eave the door slightly ajar so that wash cycle with the dishwasher empty and then remove moisture and odors are not trapped inside.
- Page 18 Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded. Do not modify the plug provided with the appliance; If it is not fit for the outlet. Have a proper outlet installed by a qualified electrician.
-
Page 19: Water Outlet
If the sink is 1000 higher from the floor, the excess water in hoses cannot be drained directly into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable container that is held outside and lower than the sink. -
Page 20: Before Calling For Service
Before Calling for Service Review the charts on the following pages may make you be free of calling for service. Fuse blown, or the Replace fuse or reset circuit breaker. Remove any other circuit breaker acted appliances sharing the same circuit with the dishwasher Make sure the dishwasher is turned on and the door is Power supply is not closed securely. - Page 21 Combination of soft Use less detergent if you have soft water and select a water and too much shortest cycle to wash the glassware and to get them clean. detergent Tea or coffee stains using a solution of 1/2 cup of bleach and 3 cups warm water to remove the stains by hand.
- Page 22 1135 Height : 850mm Width : 445mm Depth : 580mm Voltage connected Load : see rating label Water pressure: 0.04-1.0MPa Hot water connection : max 60 ℃ Power supply: see rating label Capacity: 8 Place settings...
