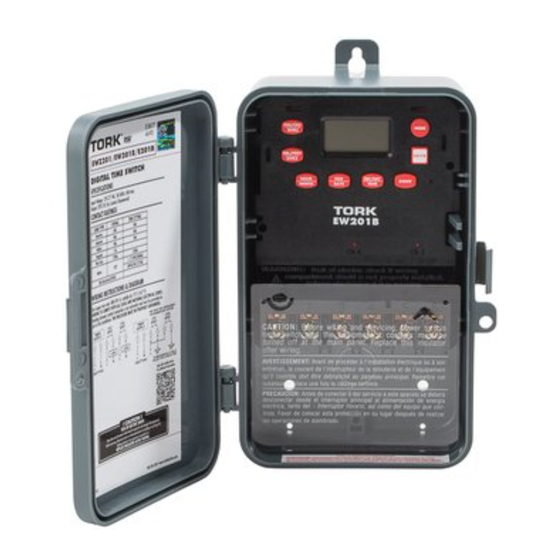

Tork EW201B Programming Instructions

PROGRAMMING INSTRUCTIONS
EW120B
EW101B
EW103B EW201B
E , EW, E-PB SERIES TIMER FACE/BUTTONS
OVR MODE
DEL ENTER
PREV
HOUR MIN
SEC/DAY
EVENT
MONTH DATE
YEAR
AM
RESET BUTTON
CLK
DATE
EWZ TIMER FACE/BUTTONS
OVR MODE
DEL
ENTER
PREV
LATITUDE
HOUR MIN
SEC/DAY
EVENT
MONTH DATE
YEAR
RESET BUTTON
ONE YEAR LIMITED WARRANTY: If this product
fails because of a manufacturing defect within
one year after purchase, we will, at our option,
either repair or replace it at no charge. Our
warranty does not cover damage caused by
accident, abuse or misuse. We assume no
further liability with respect to the sale or use
of this product. THIS WARRANTY IS IN LIEU
OF ALL OTHER WARRANTIES, EXPRESSED OR
IMPLIED, INCLUDING THE WARRANTY OF
MERCHANTABILITY. We make no warranty with
respect to the fitness of any goods for the users
particular application. This warranty gives you
specific legal rights, and you also may have
other rights which vary from state to state.
It is our intent to provide accurate and current
specification information. However, in the
interest of product improvement, TORK may
alter the specifications or constructional details
without prior notice.
FOR TECHNICAL SUPPORT: SOUTIEN TECHNIQUE : PARA COMUNICARSE CON EL SERVICIO TÉCNICO: techsupport@nsiindustries.com 888.500.4598
When powering up the unit for the first time, allow 1-2 minutes to charge
the supercap. The unit is ready when "12:00 AM" flashing is displayed on
screen. Press reset button after 2 minutes if screen is blank.

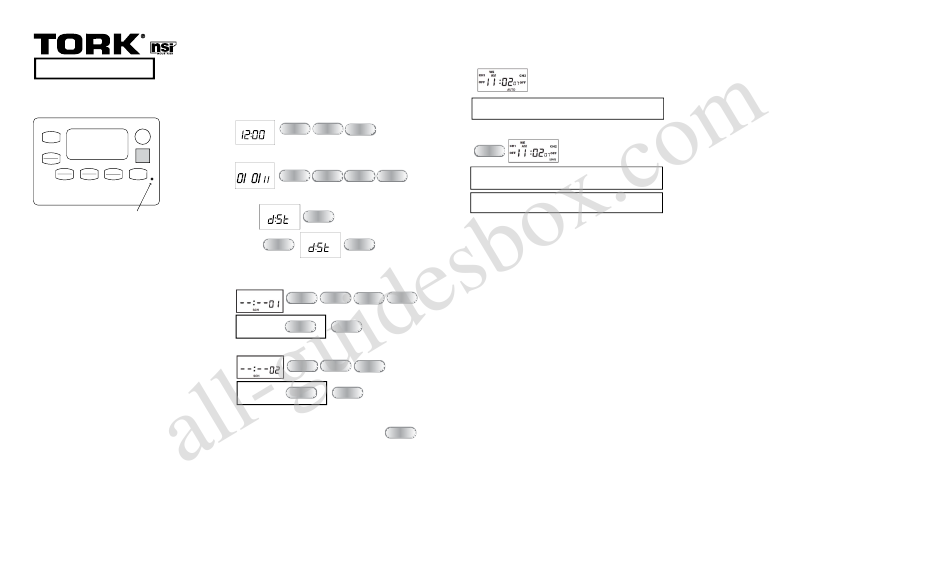

1.0 PRESS MODE TO GO TO THE CLK MODE.

OFF
OFF

2.0 TO SET CLOCK

M T W TH F SA SU
ON
AM HOUR MIN AM ASTRO
ENTER
OFF
M T W TH F SA SU
ON
AM AM ASTRO
OFF
CLK

3.0 TO SET DATE

CLK
M T W TH F SA SU
SA
ASTRO
: ON
OFF
M T W TH F SA SU
SA
: ON ASTRO
SCH OFF
MONTH YEAR
DATE DATE ENTER
OFF
SCH
DATE
ASTRO

4.0 AUTOMATIC DAYLIGHT SAVING TIME ADJUSTMENT

OFF
ASTRO
OFF
SCH
M T W TH F SA SU
ON
AM ASTRO
To accept
MODE
SCH OFF
T
PM ASTRO ON AM ON
SU
T
AM ON
PM ASTRO ON
SU
M T W TH F SA SU
OFF
SA
: ON ASTRO
To remove
DELETE ENTER
OFF
T
M T W TH F SA SU
AM ON
ASTRO ON
SCH
T
M T W TH F SA SU
AM ON
ASTRO ON
M T W TH F SA SU
ON MAN
AM AM ASTRO
ASTRO
OFF
OFF MAN

5.0 SETTING AN ON TIME

CLK
SCH
M T W TH F SA SU
DAY HOUR MIN
SA
: ON ASTRO
T
OFF
PM ASTRO ON AM ON
SU
SCH
DATE
FOR EW201B CH1/CH2 ENTER
ASTRO
T
M T W TH F SA SU
AM OFF ON
ASTRO ON
SCH

5.1 SETTING AN OFF TIME

MAN
T
PM ASTRO ON AM
DAY HOUR MIN
SU
T
M T W TH F SA SU
AM
FOR EW201B CH1/CH2 ENTER
ASTRO ON
MAN

5.2 NEXT SCHEDULE

Repeat steps 5.0 & 5.1 for additional ON/OFF pairs OR
All manuals and user guides at all-guidesbox.com

6.0 AUTO (AUTOMATIC) MODE

NOTE: AUTO mode will follow the programmed schedule. OVR sets ON/OFF
until the next event.

7.0 MAN (MANUAL) MODE

MODE
NOTE: MAN mode will bypass programmed schedule. OVR set ON/OFF until
next OVERRIDE push.
NOTE: Press RESET with an insulated tool to clear time and date. To clear all,
press ENTER, press EVENT, then press ENTER again.
EVENT
ON
ON
MODE
LI-882(C)
