Philips HR 8572 Service Manual

Philips Domestic Appliances and Personal Care
Service Manual
PRODUCT INFORMATION
- Maximum air displacement
- Maximum vacuum water column
- Power consumption (IEC)
- Dust storage capacity
- Cord length (depends on version) : 6 metre
- Filter system
- Dimensions cleaner
- Weight cleaner
- Colour
OPTIONAL
- Exhaust air fi lter
- Active carbon fi lter
- Active carbon fi lter replacem. set FC 8034 = item 12 + 13
- S-class fi lter
- S-class fi lter replacement set
- Sydney cotton dustbag
- S-closable paper dustbag
- Turbo brush
SERVICE INFORMATION
- To open the appliance, fi rst remove the 2 screws of the control
panel (item 11) then with a big screw driver disconnect the 2
snap locks of panel and lower housing (see drawing).
- Component confi guration on exploded view may differ in case
of specifi c versions. However, the actual components are
distinguished bij means of code numbers.
Published by Philips Domestic Appliances and Personal Care
4322 277 00945
02/06
Mobilo
: 32 I/sec
: 240 cm
: 1200 W
: 3 l
: Paper dustbag
: Motor inlet fi lter
: Exhaust air fi lter
: 44.5 x 29.5 x 25 cm
: 5.5 kg
: red
FC 8032 = 4822 015 70056
FC 8033 = 4822 480 20145
FC 8044 = 8838 044 01010
HR 6994 = item 19 + 20
HR 6997 = 4822 480 10115
FC 8021 = 8838 021 00000
FC 8043 = 4322 004 22960
Printed in the Netherlands

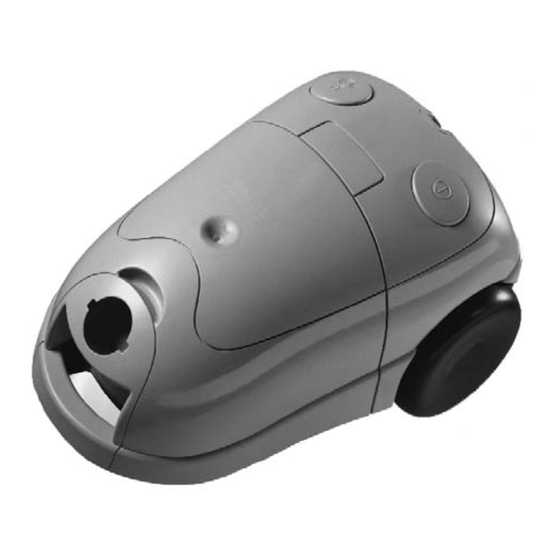

Vacuum cleaner

- If a repair has been made, make sure that all functions of the
appliance are working correctly.
- The spare parts have been standardized as much as possible.
- Item 6, cotton dustbag, is used in those countries where paper
dustbags are not available.
- Item 21 is provided with a long cord-winder spring; both long and
short cords can be used in combination with this spring.
- Cordwinder spring has to be tensioned till maximum minus appox.
1,5 revolution.
- Depending on the original length of the cord, the spare cord must
be shortened.
- If pos. 21 is replaced, shaf A must be lubricated with silicone
grease (A). This grease may not be used on terminals (25) or on
conductors (24).
- Item 71 up to and including item 85. The assembly of accessories
depends on the national version.
To connect the nozzle, the telescopic
tube and the handle: insert the
narrowed section into the wider section
while turning it a little.
To disconnect: pull while rotating.
To adjust the telescopic tube (item 74)
to the required length, use the knob in
the direction of the arrow while sliding
the top section of the telescopic tube
into or out of the lower section.
- To (dis)assemble the appliance use TORX screw driver no T15
= 4822 395 10329, which is one of a set consisting of T20, T15,
TI0, T9, T8, T7 and T6 = 4822 395 50145.
- Adjusting the PCB on the motor to 220V, 60Hz.
1. Make sure that the potentiometer (item 36) is set at min.
position.
2. Adjust the potentiometer on the PCB item 45, on the motor to
220V/60Hz to allow the motor to run smoothly.
Please note: the standard setting of the spare PCB is 230V/50Hz.
There are open-circuit voltages on all wires.
© Copyright reserved
HR 8572
Subject to modification
