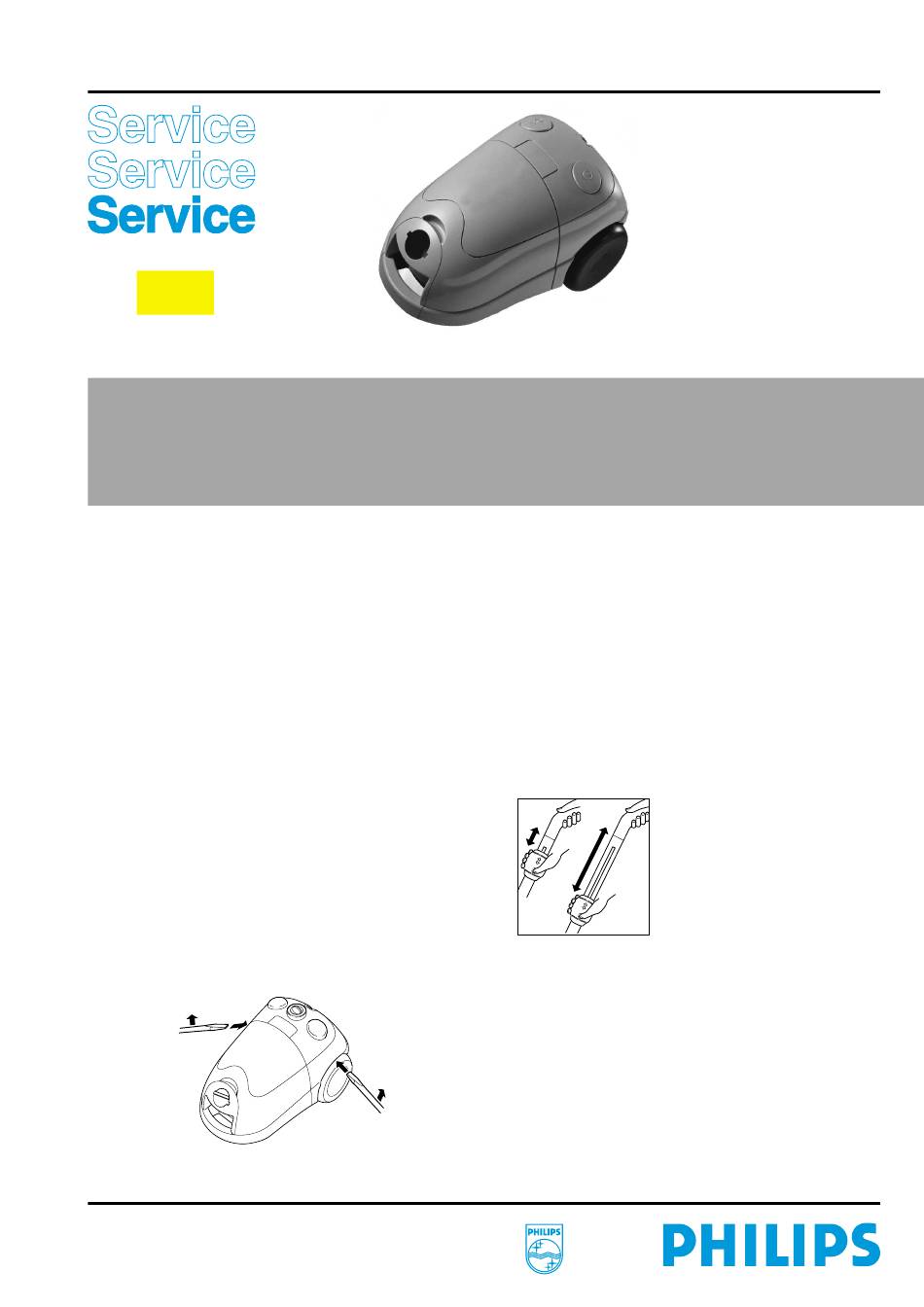

Philips Mobilo HR 8501 Service Manual

!
Service
Information
Philips Domestic Appliances and Personal Care
Service Manual
PRODUCT INFORMATION
- Maximum air displacement
- Maximum vacuum water column
- Power consumption (IEC)
- Dust storage capacity
- Cord length (depends on version) : 6 metre
- Filter system
- Dimensions cleaner
- Weight cleaner
OPTIONAL
- Exhaust air fi lter
- Hard fl oor nozzle
- Active carbon fi lter
- Active carbon fi lter replacem. set HR 6968 = item 12 + 13
- S-class fi lter
- S-class fi lter replacement set
- Sydney cotton dustbag
- Sydney closable pap. dustbag
- Turbo brush
- Sydney 3M-dustbag
SERVICE INFORMATION
- To open the appliance, fi rst remove the 2 screws of the control
panel (item 11) then with a big screw driver disconnect the 2
snap locks of panel and lower housing (see drawing).
Published by Philips Domestic Appliances and Personal Care
4322 277 00203
00/02
PCS 101 336
Mobilo
: 32 I/sec
: 240 cm
: 1200 W
: 3 l
: Paper dustbag
: Motor inlet fi lter
: Exhaust air fi lter
: 44.5 x 29.5 x 25 cm
: 5.5 kg
HR 6932 = 8836 932 01210
HR 6943 = 8836 943 03010
HR 6949 = 8836 949 01010
HR 6992 = 8836 992 01010
HR 6994 = item 19 + 20
HR 6997 = 4322 004 93250
HR 6999 = 8836 999 01010
HR 6988 = 8836 988 01010
HR 6999 = 8836 999 90010
Printed in the Netherlands
Vacuum cleaner
- Component confi guration on exploded view may differ in case
of specifi c versions. However, the actual components are distin-
guished bij means of code numbers.
- If a repair has been made, make sure that all functions of the
appliance are working correctly.
- The spare parts have been standardized as much as possible.
- Item 6, cotton dustbag, is used in those countries where paper
dustbags are not available.
- Item 21 is provided with a long cord-winder spring; both long and
short cords can be used in combination with this spring.
- Cordwinder spring has to be tensioned till maximum minus appox.
1,5 revolution.
- Depending on the original length of the cord, the spare cord must
be shortened.
- Item 71 up to and including item 85. The assembly of accessories
depends on the national version.
To connect the nozzle, the telescopic
tube and the handle: insert the
narrowed section into the wider section
while turning it a little.
To disconnect: pull while rotating.
To adjust the telescopic tube (item 74)
to the required length, use the knob in
the direction of the arrow while sliding
the top section of the telescopic tube
into or out of the lower section.
fi g. 1
- To (dis)assemble the appliance use TORX screw driver no T15
= 4822 395 10329, which is one of a set consisting of T20, T15,
TI0, T9, T8, T7 and T6 = 4822 395 50145.
© Copyright reserved
HR 8501
Subject to modification
