E1 Facility Termination

The E1 facility termination typically enters the customer's premises as two wire pairs
for data. Figure 5 shows the RJ-48C connector, and Table 2 shows its pin configuration.

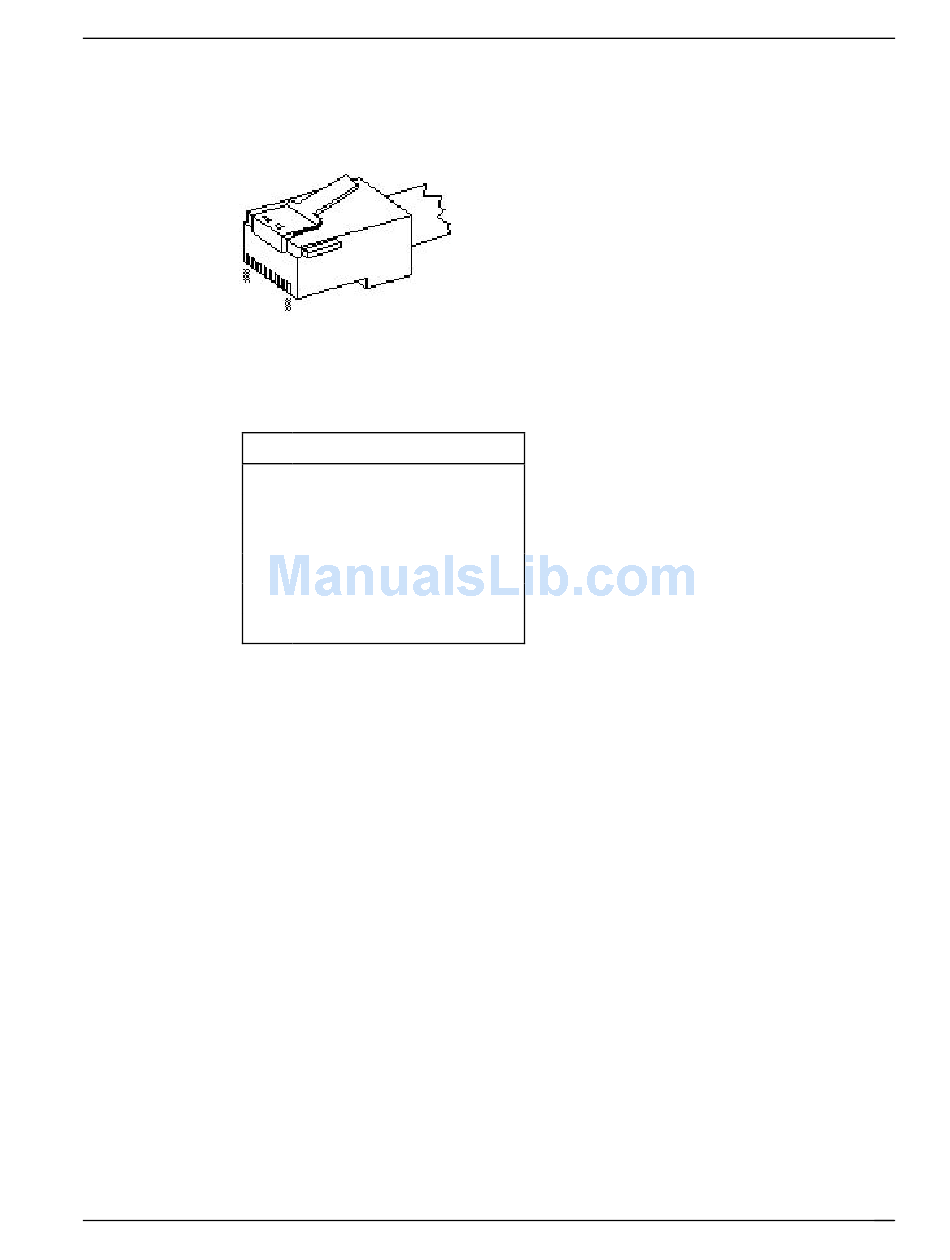

Figure 5. RJ-48C connector.
Table 2. RJ-48C Pin Configuration
Pin
1
2
3, 6
4
5
7, 8
CommPlete Communications Server
Signal
Tip 1 (Receive from network)
Ring 1 (Receive from network)
No Connection
(Transmit to network)
(Transmit to network)
No connection
