General Configuration
Date and Time: The system date and time display in these formats: DD/MM/YYYY / HH:MM:SS. SNTP Client
must be enabled and you must have a live Internet connection for the date and time to display correctly.
IP Configuration
Enter the following addresses for the Ethernet interface.
IP Address (Default = 192.168.2.1), Mask (Default 255.255.255.0), Default Gateway (Default 0.0.0.0), Primary
DNS (Default 0.0.0.0), Secondary DNS (Default 0.0.0.0).
Note: See Appendix A – Table of Commonly Supported Subnets.
Auto Dialout Configuration
Auto Dialout: Check the box to enable/disable Auto Dialout. Default = Enable.
Raw Dialout: Check the box to enable/disable raw mode for an Auto Dialout session. Default = Disable.
Auto Dialout Login:
Auto Dialout Port:
Handle EIA Signal:
duration) used between different electronic devices.
Inactivity: Enter the time in seconds that the auto dialout session will stay active before going inactive.
Syslog Configuration
Syslog: Check the box to enable or disable Syslog. Default = Disable.
Syslog Server IP Address:
remote Syslog.
Auto Discovery
Auto Discovery:
Address, IP Address, and DHCP information to the configured server port. Default = Enable.
Server Port: Enter the Server Port Number. Default port is 1020.
Broadcast Timer:
broadcasting. Default is 10 seconds.
Auto Reboot Timer Configuration
Auto Reboot Timer:
deactivates the timer.
Submit Button
Click the Submit button to save these settings.
completed and submitted all the screens on which you have made changes.

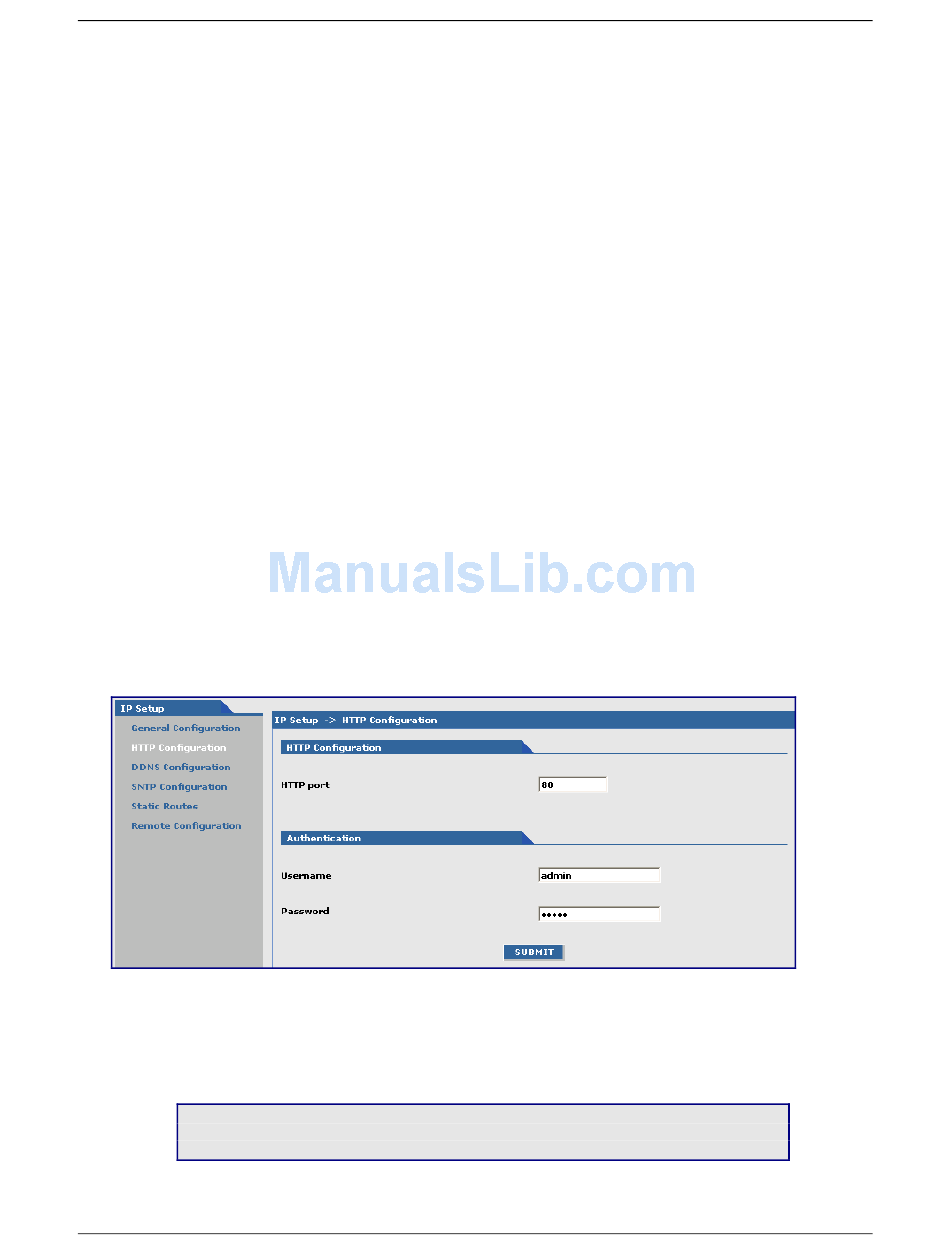

IP Setup > HTTP Configuration
HTTP Configuration
HTTP Port: Enter the port number on which the HTTP server will listen for requests. Default is 80.
Authentication
User Name: Enter the User Name that can access to the Web Management software. Default is admin.
Password: Enter the Password for access to the Web Management software. Default is admin.
Note: You should change the password to one of your choosing. A password can be up to 12 characters.
Password Caution:
sufficiently safe password; a password such as xfT35$4 is better. It is recommended
that you change the default password to better protect the security of your modem.
Submit Button
Click the Submit button to save these settings.
completed and submitted all the screens on which you have made changes.
Multi-Tech Systems, Inc. MultiModem Wireless Modem with Ethernet Interface (S000375B)
Check the box to enable or disable Auto Dialout Login feature. Default = Enable.
Enter the serial Auto Dialout Port number. Default = 5000.
Check the box to enable/disable the EIA standard signal characteristics (time and
If a Remote Syslog Server IP Address is specified, the syslog feature acts as a
Check the box to enable or disable Auto Discovery to broadcast (MAC level), the MAC
Enter the amount of time in seconds for the auto-discovery packet granularity of periodic
Enter the number of hours to lapse between each automatic reboot. The default of zero
Use a safe password! Your first name spelled backwards is not a
Chapter 3 – Using the Web Management Software
Note: You must click Save and Restart once you have
Note: You must click Save and Restart once you have
