Chapter 3 – Application Examples

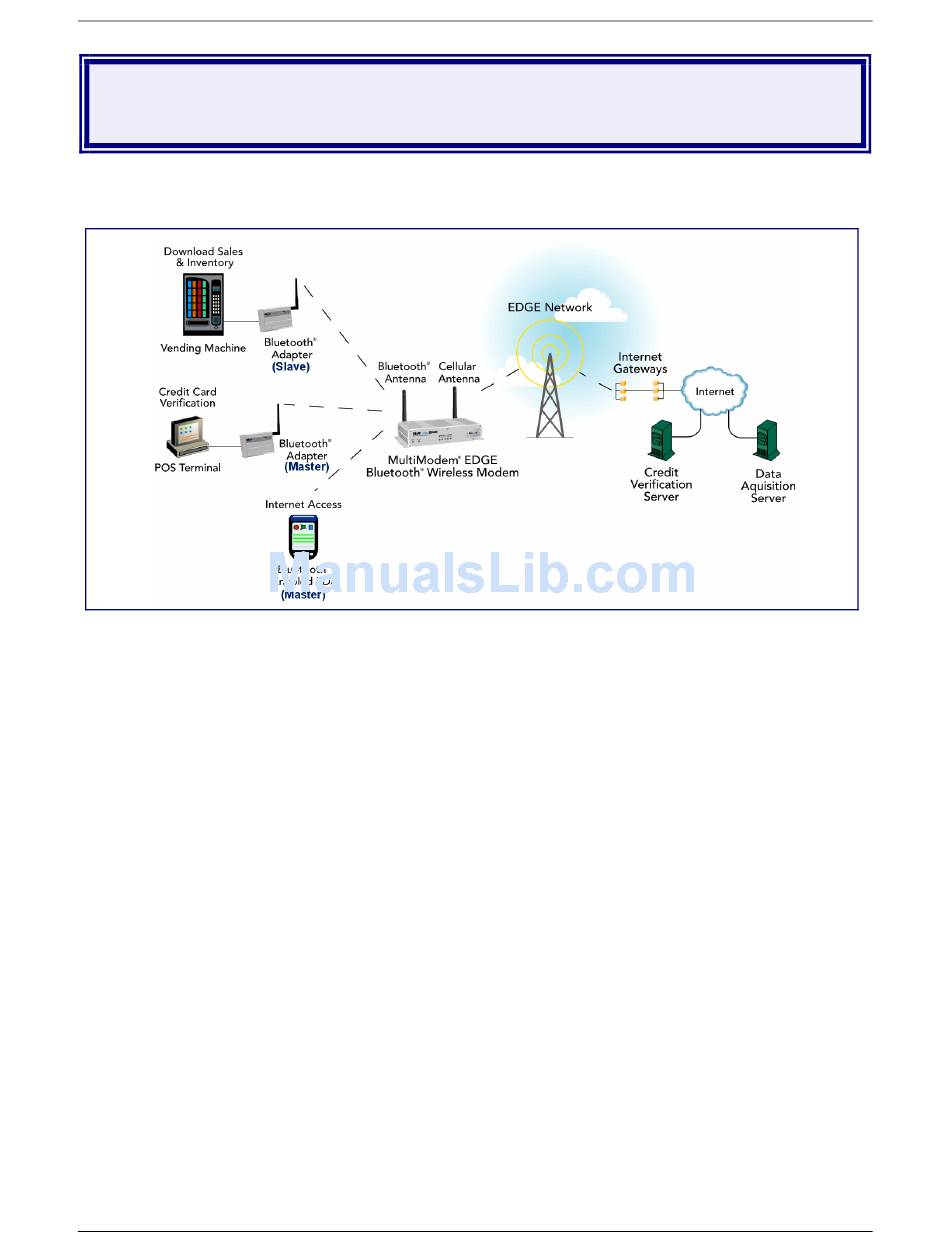

The following diagram shows three uses or applications for the MultiModem EDGE wireless modem with a Bluetooth
interface.

Overview of the Applications Shown Above

The following points give an overview of each example. See the following pages for setup details.
1. Download Sales & Inventory Using an Adapter as Slave
•
A Bluetooth adapter connected to the vending machine (a Multi-Tech MultiModem Bluetooth
adapter is shown in this example) reads the sales and inventory statistics from the vending
machine.
•
This information is sent to the Bluetooth part of the MultiModem EDGE wireless modem.
Note:
•
The information is then transferred from the Bluetooth part of the MultiModem EDGE to the
modem part of the device.
•
The modem then wirelessly transmits the data through the EDGE network tower to the data
acquisition server via the Internet.
2. Credit Card Verification at a Point-of-Sale (POS) Terminal Using an Adapter as a Master
•
A Bluetooth adapter connected to a POS terminal (a Multi-Tech MultiModem Bluetooth adapter is
shown in this example) reads the sales and inventory statistics from the POS.
•
This information is received by the Bluetooth part MultiModem EDGE wireless modem.
Note:
•
The information is then transferred from the Bluetooth part of the MultiModem EDGE to the
modem part of the device.
•
The modem then wirelessly transmits the data through the EDGE network tower to the data
acquisition server via the Internet.
3. Using a Bluetooth-Enabled PDA to Access the Internet
•
To access the Internet, a Bluetooth-enabled PDA connects to the Bluetooth part of the
MultiModem EDGE.
•
Once the Bluetooth connection is made, the PDA is communicating with the modem part of the
device.
•
The PDA then wirelessly connects through the EDGE network tower to the Internet.
