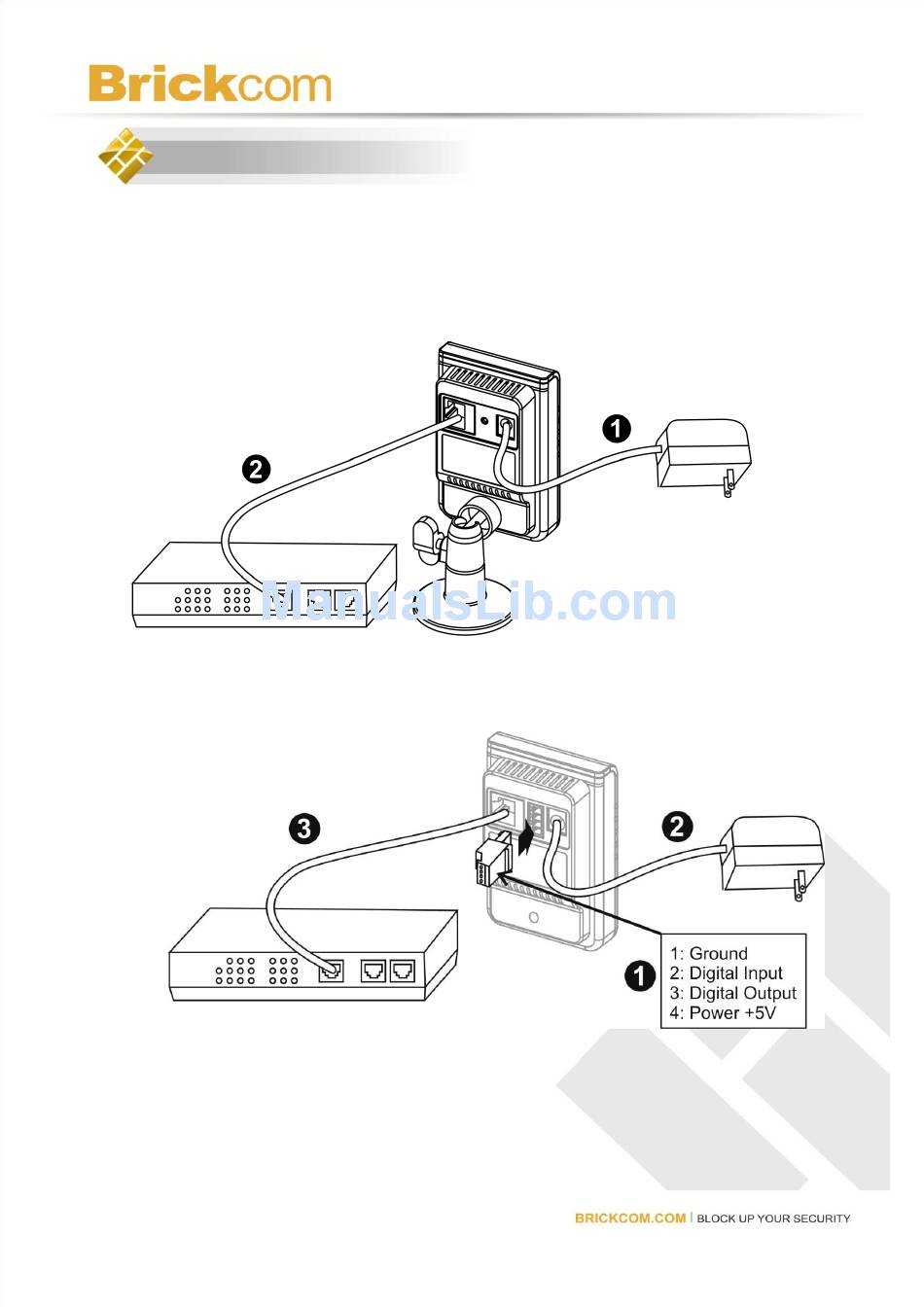

4. Camera Connection

<CB-100A>

Basic Connection

1. Connect the supplied power cable from the camera to the power outlet.

2. Connect the camera to a switch via Ethernet cable.

<CB-101A/CB-102A>

1 Terminal I/O Connector Block Connection

1.1 The supplied terminal I/O connector block can be used to connect

external devices, such as sensors and alarms to the camera. Use
