USER GUIDE
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Drain Pump

NOTICE
PLEASE READ this instruction completely before
attempting to install or operate the unit.
Improper hook-up can result in substantial
property damage! If you are unsure of your
ability to safely connect the drain pump to the
unit, consult a licensed plumber for assistance.
Use these instructions to install the U-Line P60-
20 drain pump in the U-Line Clear Ice Machine
(unit). The drain pump should be installed
before installing the unit.
• The U-Line P60-20 drain pump is designed to be used
exclusively on the U-Line Clear Ice Machine and is CE
recognized only for use on the U-Line Clear Ice
Machine.
• U-Line Corporation assumes no warranties or
responsibility, whether express or implied, if the P60-20
drain pump is used on another ice machine or product
for which it is not CE recognized or listed.
• Modification of the P60-20 drain pump will void all
warranties.
NOTICE
Keep your proof of purchase for warranty
purposes.

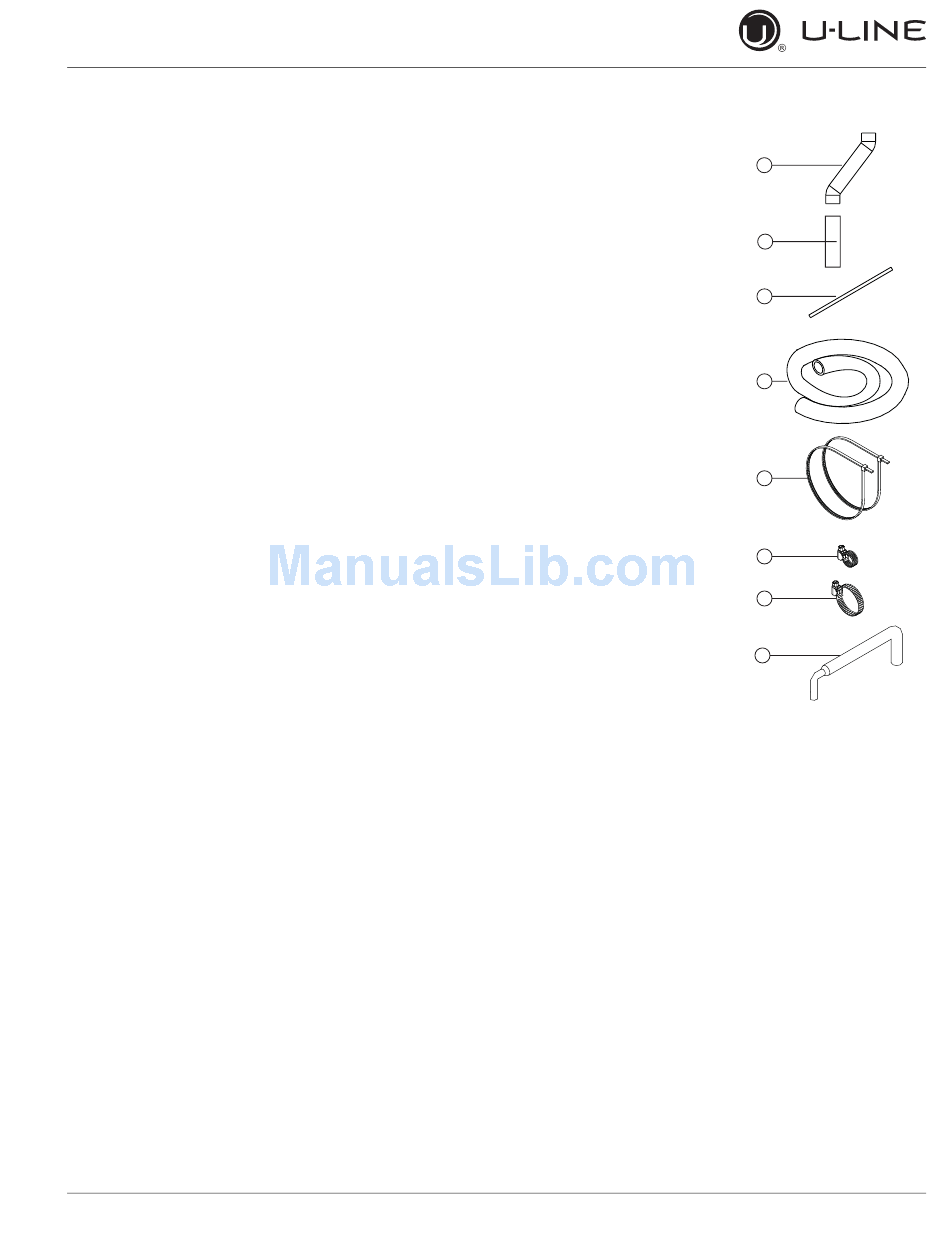

INCLUDED IN KIT:
1. 1x S-shaped Drain Tube
2. 1x Straight Drain Tube
(Not used)
3. 1x Vent Tube
4. 1x Braided Discharge Tube
(Not included in pump kit.
Ice Machine ships with
discharge tube installed.)
5. 2x Vent tube Zip Ties
6. 2x Small Worm Gear
Clamps
7. 1x Large Worm Gear
Clamp
8. 1x P60 Pump
9. 1x Discharge Tub
(Used on older models only)
TOOLS REQUIRED:
• 1/4" x 6" Blade Screwdriver
• Adjustable Pliers
• 1/4" Nut Drive
u-line.com
1
2
3
4
5
6
7
9
Drain Pump 1
