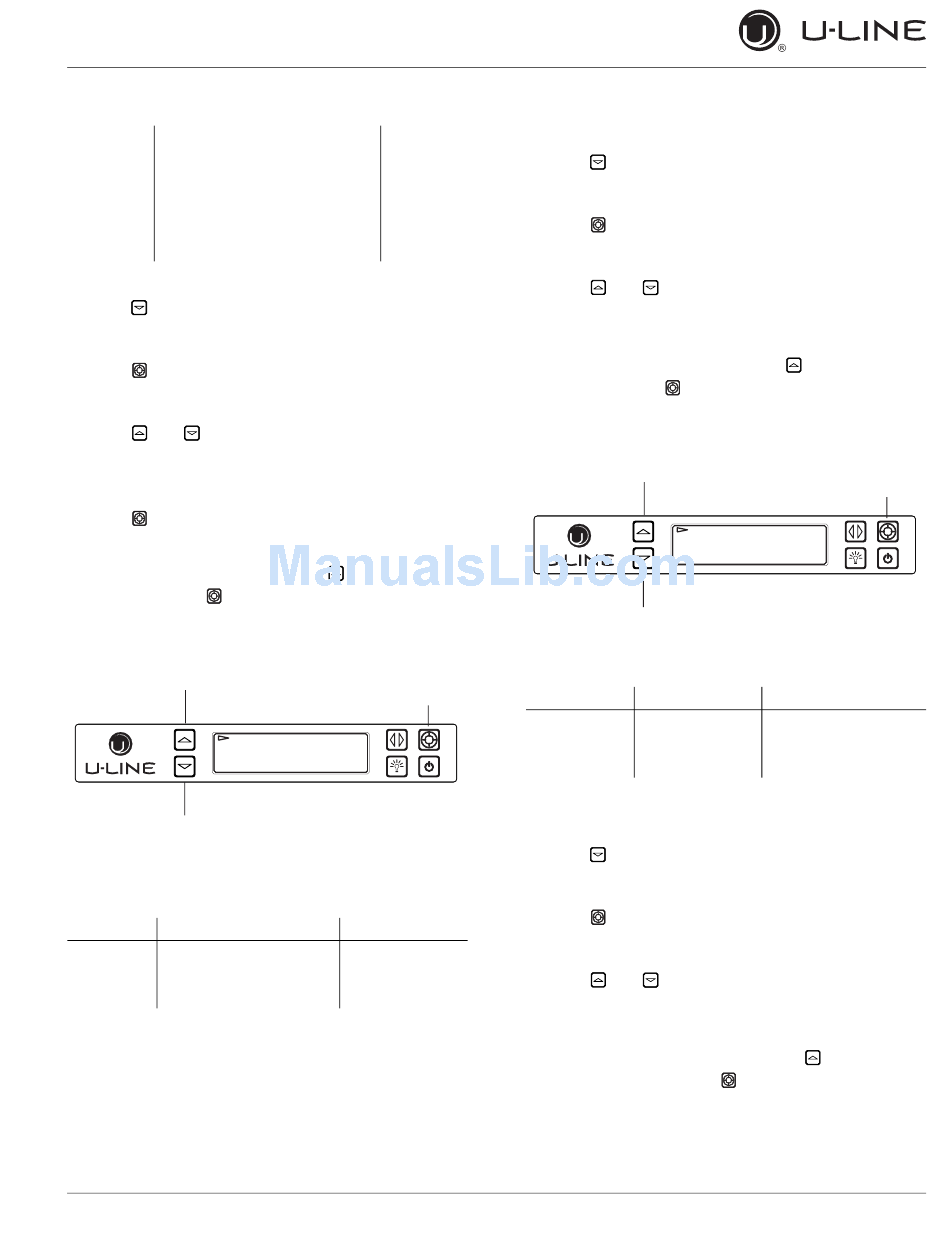

F3 Condenser Fan (Not Used)
L1 Cabinet Lighting
L2 Cabinet Lighting (Not Used)
WV Water Valve
Pump Circulation Pump
Harvest Harvest
To access Relay Toggle
1. Press to select "Relay Toggle".
2. Press .
3. Press and to scroll through each relay or DC
output.
4. Press to toggle.
To exit the Relay Toggle menu, press
to Menu" and press to confirm.
Input Status
Up
Down
Input status displays the current state of each available
input.
ID Description
Door Door Switch
IN2 Input 2 - Not Used
Test Input Factory Test Input
AC
DC
DC
AC
AC
AC
to select "Return
Select
RETURN TO MENU
INPUT STATUS
DOOR OPEN
IN2 OPEN
States
Open - Closed
Open
Open
To access Input Status
1. Press to select "Input Status".
2. Press .
3. Press and to scroll through available
information.
To exit the Input Status menu, press
to Menu" and press to confirm.
Outputs
Up
CONDENSER FAN=0%
Down
Outputs is used to monitor the state of DC outputs.
ID Description
Evap Fan Evaporator Fan
Condenser Fan Condenser Fan
Light Interior Lighting
To access Outputs
1. Press to select "Outputs".
2. Press
3. Press and to scroll through available
information.
To exit the Outputs Status menu, press
"Return to Menu" and press
u-line.com
to select "Return
Select
RETURN TO MENU
OUTPUTS
EVAP FAN=0%
States
0 - 100%
0 - 100%
Off - Low - Med - High
to select
to confirm.
Control Operation - Service 4
