Cutout Dimensions

PREPARE SITE
Your U-Line product has been designed exclusively for a
built-in installation. When built-in, your unit does not
require additional air space for top, sides, or rear.
However, the front grille (plinth strip/base fascia) must
NOT be obstructed.
The Modular 3000 Series units are engineered with a
variety of adjustment features to help ensure a seamless
installation. Adjustable doors, leveling legs and grille will
assist in fine tuning the installation.
All 3000 Series models fully integrate into overlay/face
frame, inset or European/frameless cabinet styles.
!
CAUTION
Unit can NOT be installed behind a closed cabinet
door.
For cabinet depths less than 24-3/8" (620 mm),
electrical socket MUST be located in the adjacent
cabinet or recessed in the wall. The power cord
length is 6ft (180 cm).
U-Line products are designed and manufactured
to be seamlessly installed in the specified cutout
openings shown, and variance to the floors or
cabinetry must be accounted for in your
installation.

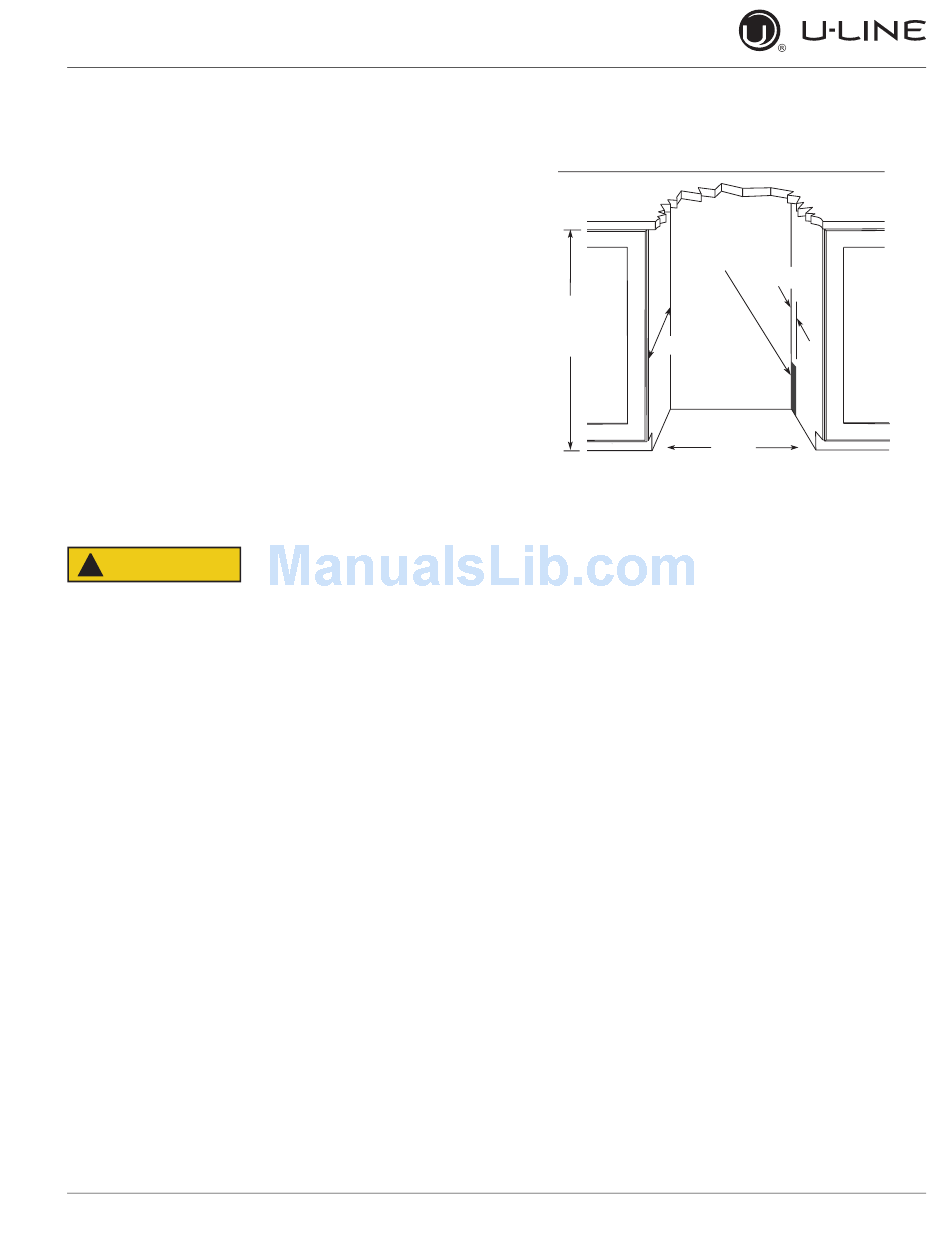

CUTOUT DIMENSIONS
Preferred location
for drain, water
line and receptacle
is in adjacent
cabinet.
33-7/8"
(860 mm)
to
24"
34-7/8"
(610 mm)
(886 mm)
u-line.com
5/8"
(16 mm)
17-3/4"
(450 mm)
