Toa N-8033MS Installation Manual

Flush-Mount Master station
Thank you for purchasing TOA's Flush-Mount Master Station.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.

1. General DesCriPtion

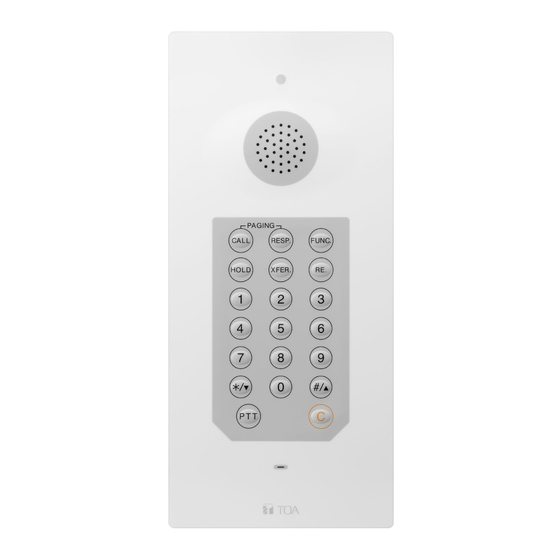

The N-8033MS is a flush-mount master station designed to operate in conjunction with TOA IP Intercom Exchange and
features high quality hands-free conversation.
Using an optional YC-841 Wall-mount box, this station can be mounted on a wall.
Connecting a foot switch or other external switch to the external dial input terminal permits one-touch dialing operation by
way of such switches.

2. Wall MountinG

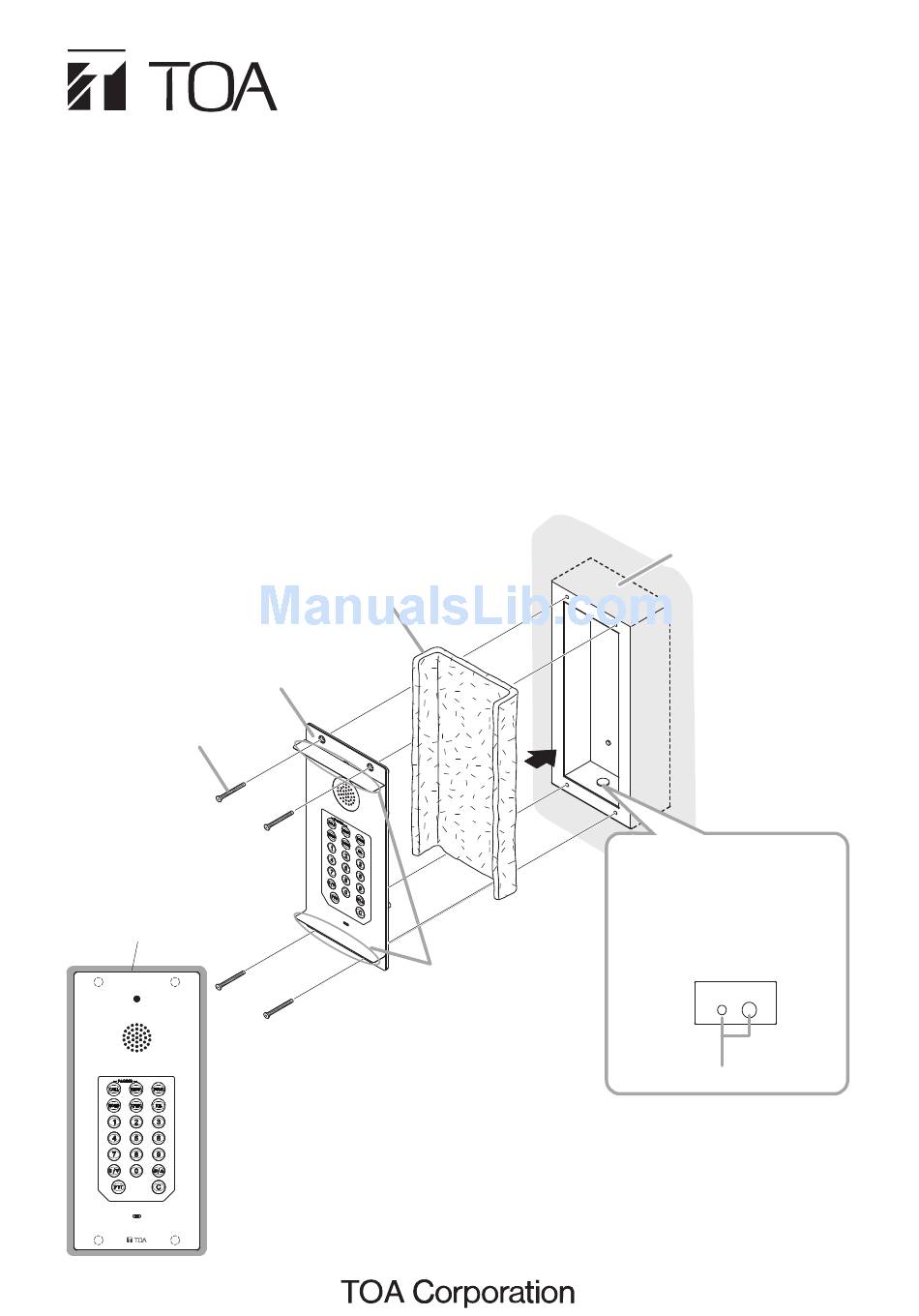

2.1. in-Wall Mounting using an electrical box
the YC-841 Wall-mount box or an electrical box installed in a wall.
Attach the N-8033MS to
A
coustic material (accessory)
Note
Lay it down along the inside of the box.
N-8033MS
Machine screw M4 x 35
(accessory)
Seal the panel edges.
note
When installing the N-8033MS outdoors or at locations where it gets wet with water, tightly
seal the panel edges. For sealing method, consult your TOA dealer.
Wall surface
After installing the N-8033MS,
check if conversations can be
made, then adhere both ends
of adhesive sheet to the panel
by removing exfoliate paper.
installation Manual
n-8033Ms
YC-841 or electrical box
tip
Refer to the next
page for YC-841
d i m e n s i o n a l
drawing.
Note
Remove either of the 2 knockout
holes in the bottom so that it can
work as a weep hole (to allow
water to exit), and secure the
YC-841 to a wall.
YC-841 bottom
Knockout holes
