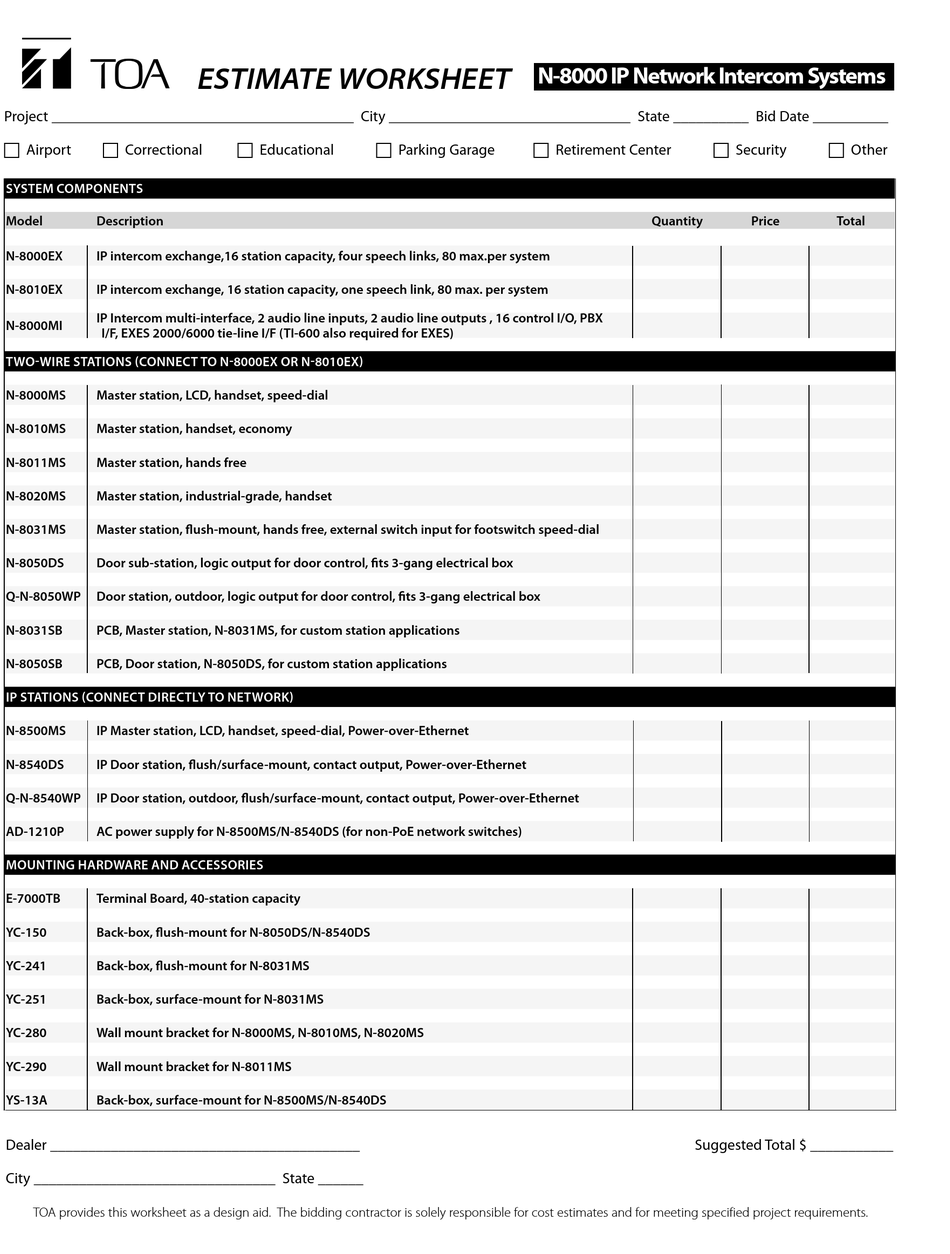

Toa AD-1210P Worksheet

Project ________________________________________ City ________________________________ State __________ Bid Date __________
c Airport c Correctional

SYSTEM COMPONENTS

Model Description
N-8000EX IP intercom exchange,16 station capacity, four speech links, 80 max.per system
N-8010EX IP intercom exchange, 16 station capacity, one speech link, 80 max. per system
IP Intercom multi-interface, 2 audio line inputs, 2 audio line outputs , 16 control I/O, PBX
N-8000MI
I/F, EXES 2000/6000 tie-line I/F (TI-600 also required for EXES)
TWOWIRE STATIONS CONNECT TO N8000EX OR N8010EX
N-8000MS Master station, LCD, handset, speed-dial
N-8010MS Master station, handset, economy
N-8011MS Master station, hands free
N-8020MS Master station, industrial-grade, handset
N-8031MS Master station, flush-mount, hands free, external switch input for footswitch speed-dial
N-8050DS Door sub-station, logic output for door control, fits 3-gang electrical box
Q-N-8050WP Door station, outdoor, logic output for door control, fits 3-gang electrical box
N-8031SB PCB, Master station, N-8031MS, for custom station applications
N-8050SB PCB, Door station, N-8050DS, for custom station applications
IP STATIONS CONNECT DIRECTLY TO NETWORK
N-8500MS IP Master station, LCD, handset, speed-dial, Power-over-Ethernet
N-8540DS IP Door station, flush/surface-mount, contact output, Power-over-Ethernet
Q-N-8540WP IP Door station, outdoor, flush/surface-mount, contact output, Power-over-Ethernet
AD-1210P AC power supply for N-8500MS/N-8540DS (for non-PoE network switches)

MOUNTING HARDWARE AND ACCESSORIES

E-7000TB Terminal Board, 40-station capacity
YC-150 Back-box, flush-mount for N-8050DS/N-8540DS
YC-241 Back-box, flush-mount for N-8031MS
YC-251 Back-box, surface-mount for N-8031MS
YC-280 Wall mount bracket for N-8000MS, N-8010MS, N-8020MS
YC-290 Wall mount bracket for N-8011MS
YS-13A Back-box, surface-mount for N-8500MS/N-8540DS
Dealer _________________________________________
City ________________________________ State ______
TOA provides this worksheet as a design aid. The bidding contractor is solely responsible for cost estimates and for meeting specified project requirements.
ESTIMATE WORKSHEET
c Educational
N-8000 IP Network Intercom Systems
c Parking Garage c Retirement Center c Security c Other
Quantity Price
Suggested Total $ ___________
Total
