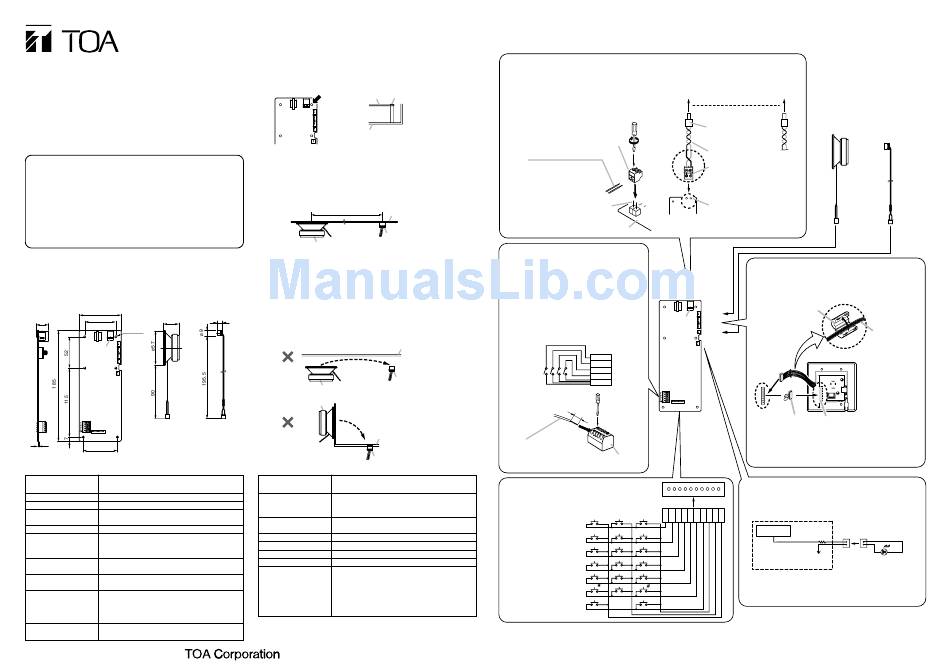

INSTALLATION MANUAL
MASTER STATION BOARD N-8031SB
1. GENERAL DESCRIPTION
The N-8031SB is a printed circuit board unit for the N-8031MS
Flush-Mount Hands-Free Master Station. You can make the
master station suitable for applications using the N-8031SB in
combination with the operation panel section to be prepared
separately.
Use the N-8000 software* to perform settings. Set up the same
items as performed to the N-8031MS since the N-8031SB is
handled as the N-8031MS on the software.
Key and status indicator operations are exactly the same as
those of the N-8031MS.
For settings, functions, and operations, read the descriptions
about the N-8031MS in the N-8000 Series instruction manual*.
* Included in the CD supplied with the N-8000EX/8010EX
Exchange.
2. DIMENSIONAL DIAGRAM
2.1. N-8031SB
2.2. Accessory
[Side]
[Front
[Hands-free
[Hands-free
(Component side)]
speaker]
microphone]
70
52
Mounting
20.6
26
hole
6-ø3.5
CN303
CN101
CN302
CN301
CN304
CN306
CN307
1.6
57
3. SPECIFICATIONS
Power Source
48 V DC (supplied from the N-8000EX/8010EX
IP Intercom Exchange)
Power Consumption
1.8 W (rated), 2.4 W (max.)
Wiring Method
Non-polar one pair stranded wire system
Transmission System
2-wire 160 kbps echo canceller transmission
system
Signal Level
Under 0 dB*
Speech Method
Hands-free conversation
(Handset conversation can be established in
conjunction with the RS-191.)
Audio Frequency
300 – 7,000 Hz
Range
Transmission Range
Max. 1,500 m (ø 0.65 mm, Loop resistance
170 Ω or less)
Hands-Free
Speaker (accessory):
5.7 cm cone-type, 0.6 W, 8 Ω
Microphone (accessory):
Omni-directional electret condenser microphone
Line Connection
Pin header (2 pins)
Terminal
4. MOUNTING TO A METAL CASE OR PANEL
4.1. Installation Precautions
To prevent a malfunction or breakdown due to static
electricity, be sure to use a metal case or metal panel, and
screw the board at the indicated hole, so that the board is
electrically conducted to the case or panel.
N-8031SB
N-8031SB
Metal case or metal panel
Cover the whole board with a case when installing.
4.2. Speaker and Microphone Installation
To prevent acoustic feedback, attach the speaker and
microphone closely to the panel and position them at least
16cm away from each other's center as shown below.
16 cm or more
Speaker
Speaker opening ratio should be 36% (Example: ø4 mm x 61
holes) as a guide.
Keep the board from coming in contact with the speaker to
avoid short-circuit between them.
Make a microphone opening with the microphone rubber's
inside diameter (ø4.5 mm), and position the microphone in
the way that its center comes to the opening center.
8.5
Never install them as shown below. Doing so may cause the
speaker sound to enter the microphone.
Sound enters
the microphone.
Speaker
Speaker
Sound enters the microphone.
Case or panel
Unit: mm
Microphone
Status Indicator LED
Solderless connector (2 pins, male),
Connecting Terminal
voltage: 5 V, maximum load current: 5 mA
Dial Input
Solderless connector (10 pins, male), open
voltage: 3.3 V DC, short-circuit current: 1 mA,
screwless connector (5 pins)
External Dial Input
No-voltage make contact input, open voltage:
5 V DC, screwless connector (5 pins)
Operating Temperature
0°C to +40°C
Operating Humidity
Under 90% RH (no condensation)
Dimensions
70 (w) x 185 (h) x 20.6 (d) mm
Weight
205 g (including accessories)
Accessories
Removable terminal plug (2 pins, preinstalled on
the unit) ... 1, Handset jumper (8 pins,
preinstalled on the unit) ... 1, Ferrite clamp ... 1,
Hands-free speaker (with connection cord) ... 1,
Hands-free microphone (with connection cord)
... 1
* 0 dB = 1 V
Note: The design and specifications are subject to change without notice for improvement.
5. CONNECTIONS
5.1. Connection to the Exchange
Connect the CN101 terminal to the Exchange's
network connection terminal via the E-7000TB
Terminal Board.
Board fixing screw
For details, read the installation manual supplied
with the Exchange.
[Connections]
Removable terminal plug
(accessory)
Cable
Bared end: 7 mm
Conductor diameter:
ø 0.4 – 1.6 mm (AWG14 – 26),
Solid or Stranded wire
Insert into the CN101's pin header.
Case or panel
Microphone
5.2. External Dial Switch Connection
Connecting external switches such as
footswitches permits them to perform the
same operation as the dial keys "7," "8,"
"9," and "C".
An electrical current of 1 mA flows through
each contact.
Note
The cable length from the external switch
should not exceed 3 m.
Case or panel
Microphone
[Connections]
Cable
Conductor diameter:
ø 0.8 – 1.3 mm (AWG16 – 20),
Solid or Stranded wire
5.3. Dial Key Connection
Connect a keyboard of
which circuit
configuration is as
shown in the figure.
An electrical current of
1 mA flows through
each contact.
Note
For the CN307 connection,
use the PHR-10 connector
manufactured by J.S.T.
Mfg. Co., Ltd. or equivalent.
To N-8000EX/8010EX Exchange
16 lines
Mini-clamp connector
(Supplied with the
Tighten
Exchange)
Twisted pair cable
2-pin removable terminal plug
(accessory,
factory-attached to the CN101)
1 2
CN101
N-8031SB
N-8031SB
5.4. RS-191 Connection
CN303
CN101
CN302
CN301
CN304
CN306
7
8
9
C
COM
CN306
CN307
8 mm
CN302
Push down.
CN306
CN307
5.5. Status Indicator (LED) Connection
1
10
Use an LED with high brightness.
CALL
RESP.
FUNCTION
1
2
3
4
5
6
7
8
9
10
HOLD
TRANSFER
REDIAL
2
1
3
4
5
6
8
7
9
Note
For the CN304 connection, use the XHP-2 connector
0
manufactured by J.S.T. Mfg. Co., Ltd. or equivalent.
PTT
C
Note
Be sure to use the accessories.
Hands-free
Hands-free
speaker
microphone
(accessory)
(accessory)
To CN303
To CN301
Connecting the RS-191 Option Handset to
the N-8031SB permits handset conversation.
Ferrite clamp
(accessory)
Handset cable
Note
RS-191 rear
Run the cables along
the ferrite groove, and
clamp them.
2
1
Socket
Handset jumper
Note
(accessory, factory-
Though the socket on the PC
attached to the
CN302)
board is faced inside, you can
insert the handset jumper into
the socket from the side.
(Internal circuit)
Control IC
CN304
2
1 kΩ
TTL level output
1
+5 V DC
Status indicator (LED)
Printed in Japan
1 3 3 - 0 6 - 2 7 3 - 9 0
