3.1 Flue
Ventilation must be provided in accordance with the
rules in force in the countries of destination.
The following information refers specifically to this
boiler:

3.2 Flue Position and Length

The air and flue ducting connect to the top of the boiler
using the air box and can be positioned in one of three
directions:
rearward, left or right.

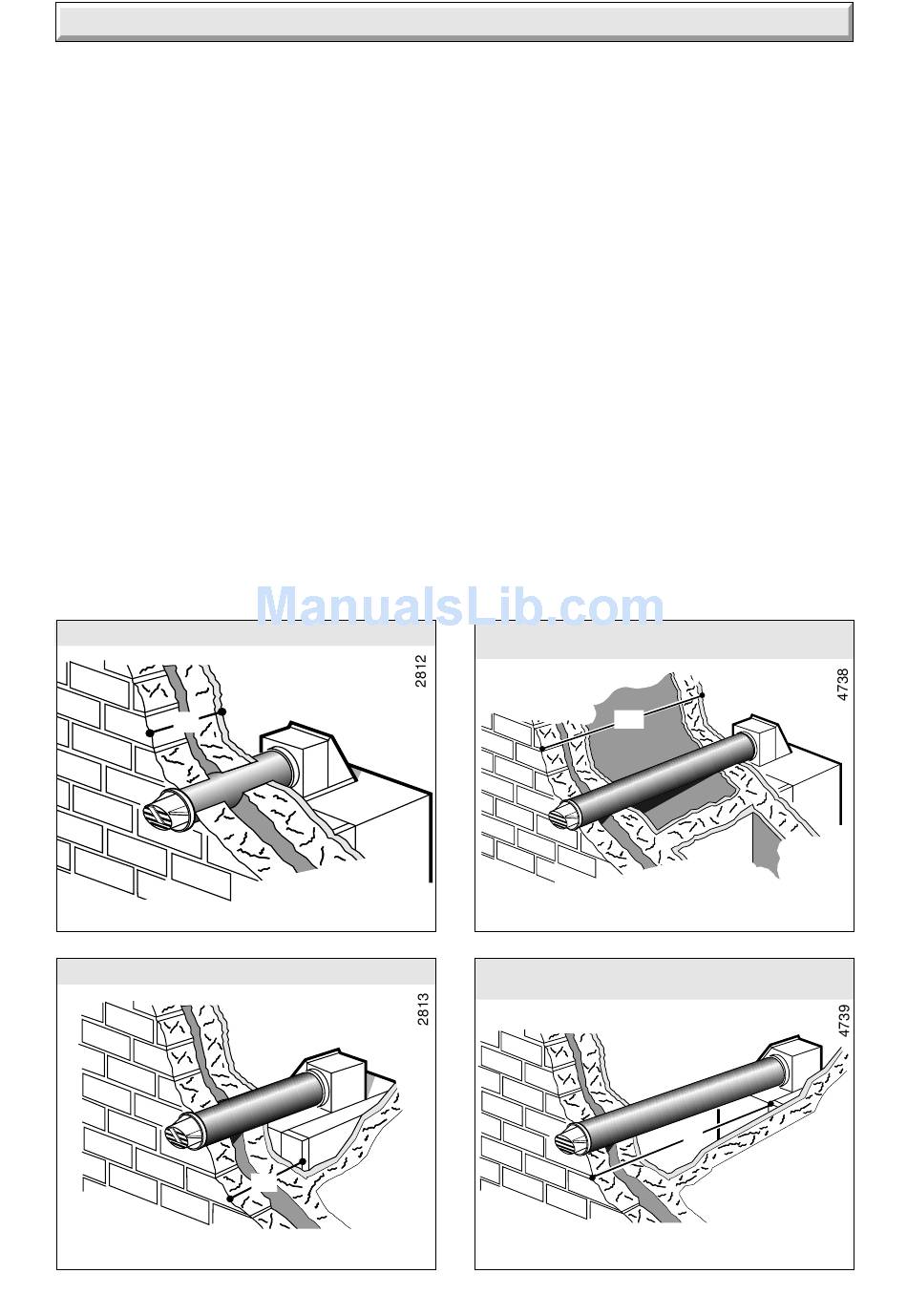

The standard flue is able to provide the duct length
range shown in diagram 3.1 for a rear flue or diagram
3.2 for a side flue.
If a longer flue duct is required, do not extend the
ductings.
A 1 or 2metre flue system and elbow terminal kit must
be used and can be supplied.
This is able to provide the duct length range shown in
diagram 3.3 for a rear flue, diagram 3.4 for a side flue.
WALL THICKNESS 'X': 75 TO 588mm
"X"
REAR FLUE - STANDARD
DISTANCE 'Y': 80 TO 533mm
SIDE FLUE - STANDARD
Left or Right
221017B
3 F l u e a n d V e n t i l a t i o n
Diagram 3.1
"Y"
Diagram 3.2
3.3 Internal Access Flue
The flue can be installed from inside the building, when
access to the outside wall face is not practicable. An
internal access kit is provided in the standard carton.

3.4 Terminal Position

The flue terminal shall be located in accordance with
AG601 - Gas Installation Code.
1m DISTANCE 'X' = 75 TO 898mm
2m DISTANCE 'X' = 75 TO 1898mm
"X"
REAR FLUE - 1 and 2 metre
1m DISTANCE 'Y' = 80 TO 843mm
2m DISTANCE 'Y' = 80 TO 1843mm
SIDE FLUE - 1 and 2 metre
Left or Right
6
Diagram 3.3
"Y"
Diagram 3.4
