11.11 Completion
The user control door is designed for left or right hand
hinging. If required the hinge can be moved to the other
side to that supplied, as follows:
Remove the hinge pin bracket securing screw then
remove the hinge pin retaining bracket and, holding the
door, remove the hinge pin. Prise out the hinge pin
bushes and fit on to the opposite side of the door,
see diagram 11.6.
Remove the screw and nut and fit to the opposite side of
the case. After removing the other hinge pin retaining
bracket refit the door and hinge pin. Refit the hinge pin
retaining bracket and fit the securing screw.
Fit the catch assembly, supplied on the loose items pack,
see diagram 11.6.
If required, fit the plastic covers to hide the bracket
securing screw.
Change the position of the "Push" label to suit new door
opening.
Stick the casing label to the right hand side.
Fit the outer case, secure with the two screws, see
diagram 6.1.
Set the boiler and any remote heating control to the
desired settings, then close the door.
11.12 Instruct the User
Instruct and demonstrate the lighting procedure and
advise the user on the safe and efficient operation of the
boiler.
Instruct on and demonstrate the operation of any heating
system controls.
Advise the user on the use and maintenance of any scale
reducer and pass on any relevant instructional
documents.
Advise that to ensure the continued efficient and safe
operation of the boiler it is recommended that it is
checked and serviced at regular intervals. The frequency
of servicing will depend upon the installation conditions
and usage, but in general, once a year should be enough.
Advise the user of the precautions necessary to prevent
damage to the system, boiler and the building, in the
event of the heating system being out of use during frost
or freezing conditions.
Advise the user that the permanent mains electrical
supply MUST NOT be switched off whilst the pilot
flame is alight.
Reminder - Hand the Installation, Servicing and User
Instructions to the user.
221017B
1 1 C o m m i s s i o n i n g

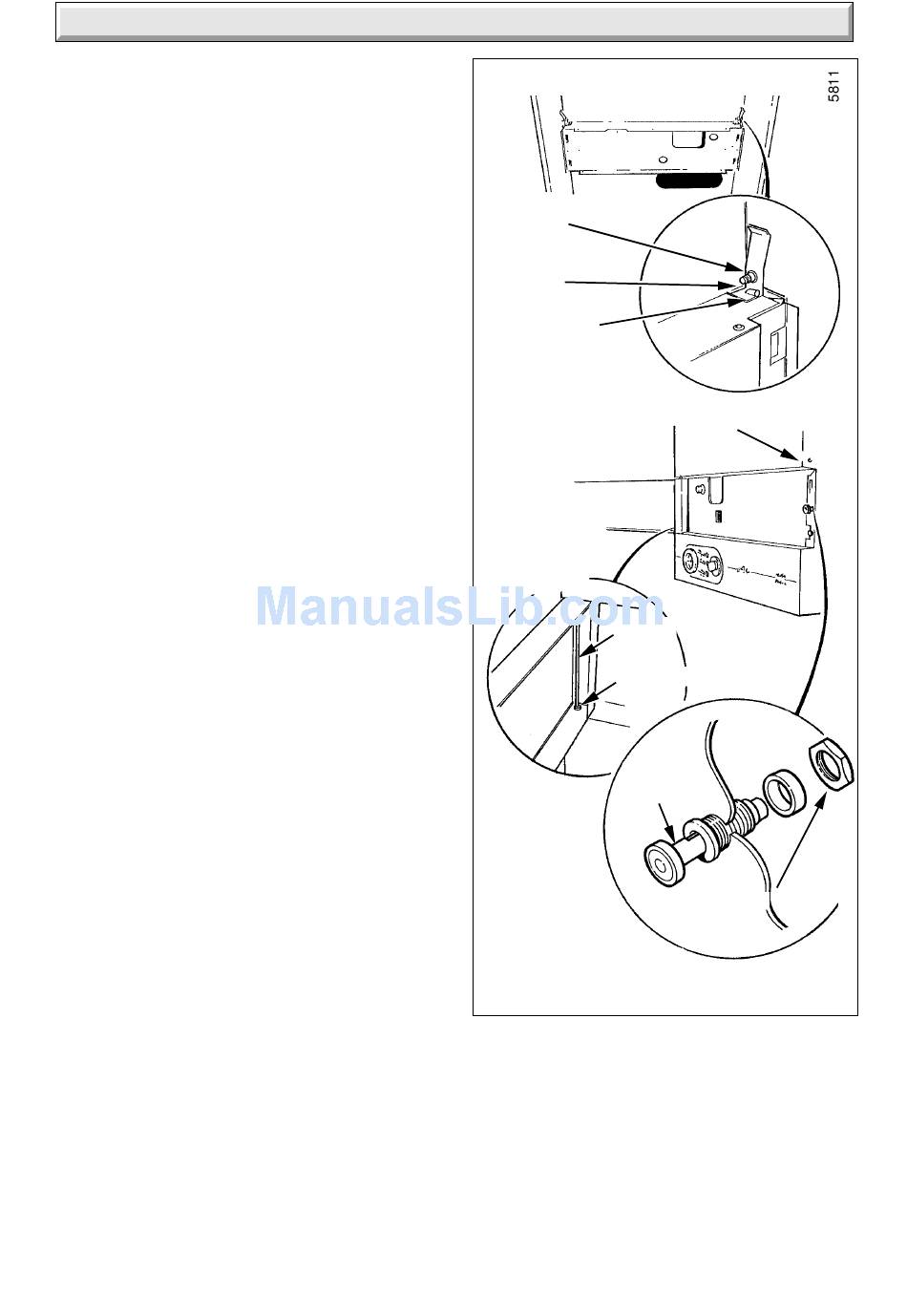

HINGE PIN
RETAINING
BRACKET
BRACKET
SECURING
SCREW
26
HINGE PIN
PLASTIC COVERS
HINGE PIN
PLASTIC BUSH (2)
CATCH
ASSEMBLY
SECURING NUT
Diagram 11.5
