Glow-worm Swift flow 100 Installation Instructions Manual page 15

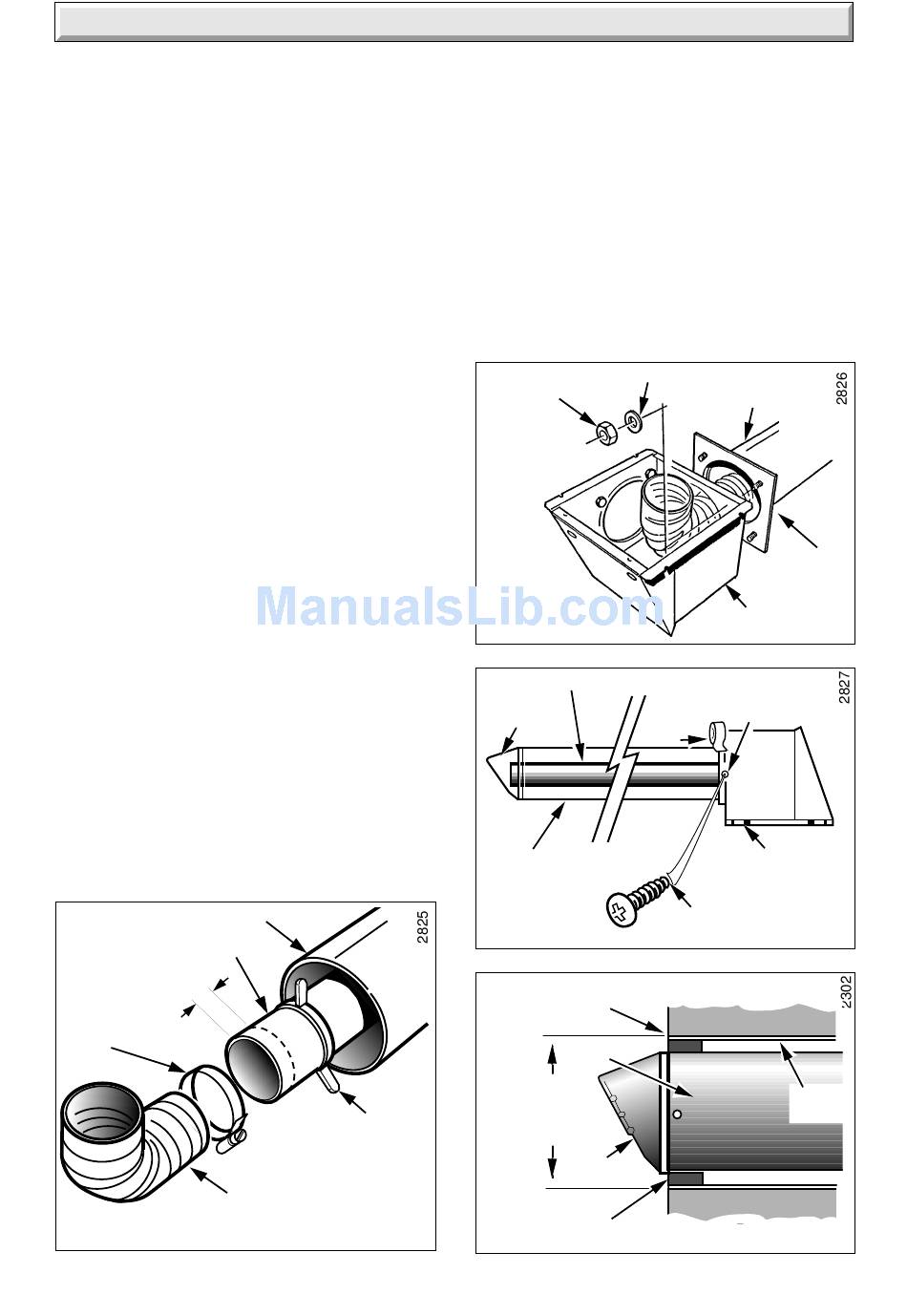

7.4 Flue Assembly
Fit and secure the flue elbow, see diagram 7.4.
Fit loose spacer onto the flue duct, at the opposite end.
Insert the flue and spacer into the air duct.
Fit the air box spigot plate in the correct position on the
air box according to left, right or rear flue.
Fit the air and flue duct assembly to the boiler, see
diagram 7.5.
Note: Fully insert the air duct into the air box spigot.
Make sure the flue terminal is in the correct orientation,
marked TOP and the flue duct is engaged in the flue
terminal.
Drill a hole, diameter as shown in diagram 7.6, in each
side of the air duct, through the holes in the air box.
Secure the air duct to the air box using the two screws
provided in the loose items pack.
Note: If side or front access is restricted then it may be
necessary to carry out the above operation after passing
the flue through the wall.
Seal around the joint between the air duct and the air box
using the tape provided in the loose items pack.
Place the flue assembly into the flue hole, to make sure
that the flue terminal is correctly positioned and sticking
out the correct distance from the outside wall face, see
diagram 7.1 and the appropriate diagram 7.2 or 7.3.
Remove flue assembly.
7.5 Internal Access Flue
If access to the outside wall surface is not practicable,
the flue system can be installed from inside using the
internal access wall sleeve and seal. A core drilled hole,
diameter as shown in diagram 7.7, is required for the
sleeve.
AIR DUCT
FLUE DUCT
MARK LINE
34mm
CLIP
STANDARD FLUE
7 F l u e P r e p a r a t i o n
FLUE
DUCT
SPACER
FLUE ELBOW - Excercise
caution when handling this
component (push onto, flue
duct up to the line)
Diagram 7.4
Place the wall sleeve into the hole, flush with the outside
wall face and seal around the sleeve to make it
weatherproof on the outside and internally "good".
The wall sleeve is suitable for wall thicknesses up to
300mm.
For a wall thickness less than 300mm the wall sleeve
must be cut to the same length as the wall thickness.
Fix the self adhesive seal to the air duct, see diagram 7.7.
Place the flue assembly into the flue hole to ensure that
the flue terminal is correctly positioned and sticking out
the correct distance from the outside wall face, see
diagram 7.1 and the appropriate diagram 7.2 or 7.3.
WASHER (4)
SECURING
NUT (4)
AIR BOX / FLUE
ASSEMBLY
FLUE DUCT
FLUE
TERMINAL
AIR DUCT
STANDARD FLUE ILLUSTRATED
OUTSIDE
WALL FACE
AIR
DUCT
115 DIA.
CORE
DRILLED
HOLE
FLUE
TERMINAL
SEAL
STANDARD FLUE ILLUSTRATED
15
AIR DUCT
AIR BOX
SPIGOT
PLATE
AIR BOX
Diagram 7.5
3.3 DIA
HOLE IN EACH SIDE
OF THE AIR DUCT
TAPE
AIR BOX
SCREW (2)
Diagram 7.6
WALL
SLEEVE
Diagram 7.7
