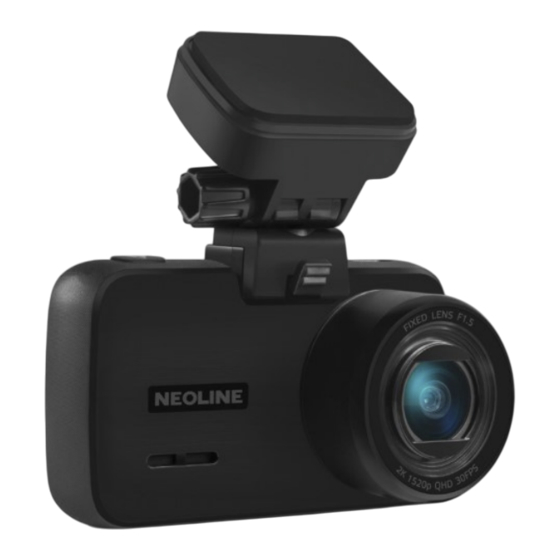

Dear customer! Thank you for purchasing the Neoline G-Tech X83 car digital video recorder! Please read this manual carefully and all through to ensure proper use and longer service life of the device. Keep the user manual to consult it when necessary.
• Do not disassemble or modify the product. • Neoline is not responsible for any data loss and/or direct or indirect damage caused to the user or a third party by incorrect use of the device or software, their incorrect installation, or the use of accessories not included in the package.
DVR in a place where it can block the view and compromise your safe driving. Neoline and its authorized partners ARE NOT responsible for any damage or data loss due to improper installation of the holder. • The built-in supercapacitor helps you finish your recording correctly. Normal operation of the device requires an external power source.
This user manual is valid at the time of printing. The current version of the instructions can be found at www.neoline.com in the Download section. 3. List of Equipment: • Neoline G-Tech X83 DVR •...
4. DVR/Buttons Description 1. USB Type-C connector 7. Microphone 2. ON / OFF key 8. Touchscreen display 3. Memory card slot. 9. Operation indicator 4. Contact area 10. USB Type-C connector 5. Lens 11. Contact area 6. Speaker...
Page 7
Description of the Keys Description ON/OFF (It is active only Press and hold to turn the device on/off. when external power is Press to stop/start recording in Video Recording connected) mode. Touchpad You can control the settings and functions of the DVR using this touch panel. Press the touch screen after turning on the device, and 3 icons will appear on the display.
Page 8
Navigating the Device Menu After entering the settings menu, a submenu will appear on the screen: Tap the icon to access Video Settings. Tap the icon to access System Settings. Tap the icon to view files on the memory card. Tap the icon to return to the Main Screen.
5. Mounting the DVR Installation on the windshield Please determine the location of the video recorder in advance. Hold the holder base firmly and secure it to the windshield. CAUTION! Adjusting the viewing angle can only be done along the vertical line, so be sure to position the device correctly on the windshield along the horizontal line as close as possible to the windshield's centre.
Page 10
Adjusting the Viewing Angle To get the best record, ensure that the camera captures the image in a proportion of 30% sky / 70% road. Fix the position of the holder after adjusting the viewing angle along the vertical line. Power connection Use only the power adapter included to power the device and to charge the battery.
6. DVR Operation Device preparation A. Insert the microSD card into the memory card slot. Turn off the device before installing a memory card; insert the memory card until it is locked. Installing the card: Turn the microSD card to the slot as shown in the picture and insert it until it clicks.
Page 12
Press and hold the power button for 3 seconds to turn the device off. Loop recording 1) Insert the microSD card into the memory card slot; the Loop Recording mode turns on automatically. 2) Set the duration of video recordings in the appropriate section of the menu of Loop recording.
Page 13
Event folder. Updating the firmware 1) Please download the firmware file at www.neoline.com and extract the file. 2) Then format the memory card and move the extracted file(s) to the microSD memory card.
Page 14
CAUTION! The device can be used in Parking mode when it is connected to the vehicle's auxiliary power outlet using the Neoline Fuse Cord X81/X83. You can purchase this cable at the official online store www.neoline.com or at any authorized retailer.
Page 15
Playback/Delete Files Playback Go to the View Files menu when in standby mode and select one of the available folders to view the files: Event (for emergency recording), Video (for normal recording), Photo. Select the file to view using the touch panel and touch the file icon to start its playback.
Page 16
Unlock (for the Event folder). When entering this menu item, the user can unlock the current file, i.e. make it recordable. In this case, such a file will be moved to the Video folder. Note: Deleted files cannot be restored. Backup all necessary files before deletion. Menu Items Video Settings - Video resolution...
- Auto power off - Reset - System information View Files - Event - Video - Photo 7. Troubleshooting This section helps you to eliminate problems the device may have under normal operation. - Cannot take pictures/record video Check if there is enough free space on the microSD card and if it is not blocked. - Spontaneous stop at recording Too many video files stored.
Page 18
Manufactured for “Neolainas” LTD Vilnius, Lithuania Made in PRC Official site: www.neoline.com Tech.Support: support@neoline.com Warranty: 24 month Charger: 5V DC, 1.5A Operation environment temperature: -10˚C...+60˚C Importer and authorized service organization: please see the package...
