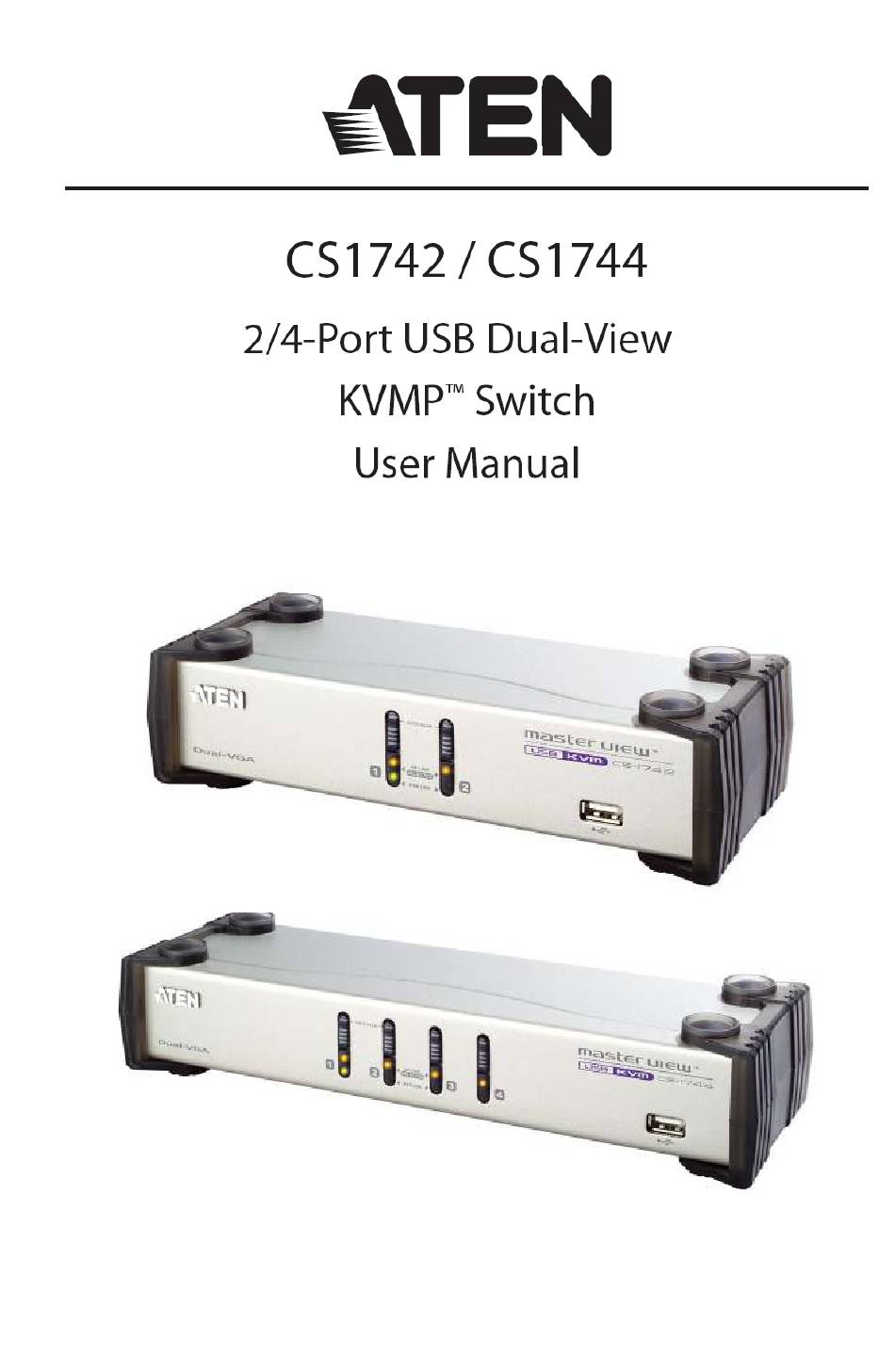

- Page 1 www.aten.com...
-
Page 2: Emc Information
CS1742 / CS1744 User Manual EMC Information FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 3: Sj/T 11364-2006
CS1742 / CS1744 User Manual SJ/T 11364-2006 The following contains information that relates to China. -
Page 4: User Information
86-400-810-0-810 Japan 81-3-5615-5811 Korea 82-2-467-6789 North America 1-888-999-ATEN ext. 4988 United Kingdom 44-8-4481-58923 User Notice All information, documentation, and specifications contained in this manual are subject to change without prior notification by the manufacturer. The manufacturer makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties as to merchantability or fitness for any particular purpose. -
Page 5: Package Contents
CS1742 / CS1744 User Manual Package Contents The CS1742 / CS1744 Dual-View KVM Switch package consists of: 1 CS1742 or CS1744 Dual-View KVM Switch 2 Custom Audio/Video Cable Sets (CS1742) 2 Custom USB/Video Cable Sets (CS1742) 4 Custom Audio/Video Cable Sets (CS1744) 4 Custom USB/Video Cable Sets (CS1744) 1 Firmware Upgrade Cable 1 User Instructions*... -
Page 6: Table Of Contents
CS1742 / CS1744 User Manual Contents EMC Information..........ii RoHS . - Page 7 CS1742 / CS1744 User Manual Keyboard Operating Platform ....... 18 List Hotkey Settings.
-
Page 8: About This Manual
CS1742 / CS1744 User Manual About this Manual This User Manual is provided to help you get the most from your system. It covers all aspects of installation, configuration and operation. An overview of the information found in the manual is provided below. Chapter 1, Introduction, introduces you to the CS1742 / CS1744 system. -
Page 9: Conventions
For information about all ATEN products and how they can help you connect without limits, visit ATEN on the Web or contact an ATEN Authorized Reseller. Visit ATEN on the Web for a list of locations and telephone numbers: International http://www.aten.com... - Page 10 CS1742 / CS1744 User Manual This Page Intentionally Left Blank...
-
Page 11: Chapter 1 Introduction

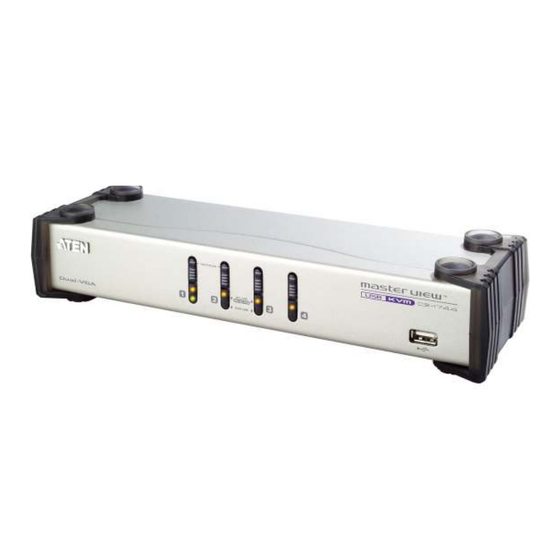

Overview The Master View Dual-View CS1742 or CS1744 USB KVM Switch brings dual head video functionality to ATEN's USB KVM switch technology. Now, two (CS1742) or four (CS1744) dual head computers can be accessed and controlled from a single console that consists of a USB keyboard, USB mouse, and two VGA, SVGA, or Multisync monitors. -
Page 12: Features
CS1742 / CS1744 User Manual Features Provides a second video channel to support dual head computers One console controls 2 (CS1742) or 4 (CS1744) dual head computers Two USB ports for USB device sharing Audio jacks for speaker and microphone sharing Independent (asynchronous) switching of the KVM, USB, and audio focus Fully compliant with the USB 1.1 specification –... -
Page 13: Requirements
1. Introduction Requirements Console Monitors capable of the highest resolution that you will be using on any computer in the installation A USB mouse A USB keyboard Computer The following equipment must be installed on each computer: A VGA, SVGA or Multisync port USB Type A port Cables Only Custom cable sets specifically designed to work with this switch may be... -
Page 14: Cs1742 / Cs1744 Front View
CS1742 / CS1744 User Manual CS1742 / CS1744 Front View... - Page 15 1. Introduction The front panel components are described in the table below: Component Description Port Pressing a front panel port selection pushbutton brings the Selection focus to the computer attached to its corresponding port. Switches Press a port selection pushbutton for less than two seconds to bring the KVM, USB hub, and audio focus to the computer attached to its corresponding port.
-
Page 16: Cs1742 / Cs1744 Rear View
CS1742 / CS1744 User Manual CS1742 / CS1744 Rear View... - Page 17 1. Introduction The rear panel components are described in the table below: Component Description Power Jack If you choose to use external power, the power adapter cable plugs into this jack. Note: Use of a power adapter (DC 5V) is optional, and requires a separate purchase.
- Page 18 CS1742 / CS1744 User Manual This Page Intentionally Left Blank...
-
Page 19: Chapter 2. Hardware Setup
Chapter 2 Hardware Setup 1. Important safety information regarding the placement of this device is provided on page 29. Please review it before proceeding. 2. Make sure that the power to all devices connected to the installation are turned off. You must unplug the power cords of any computers that have the Keyboard Power On function Cable Connection To set up your Master View CS1742 / CS1744 installation, refer to the... - Page 20 CS1742 / CS1744 User Manual Installation Diagram...
-
Page 21: Chapter 3. Basic Operation
Chapter 3 Basic Operation Manual Switching There are two convenient methods to access the computers: Manual - which involves pressing the pushbutton port selection switches located on the unit's front panel; and Hotkey - which involves entering combinations from the keyboard. -
Page 22: Powering Off And Restarting
CS1742 / CS1744 User Manual Powering Off and Restarting If it becomes necessary to Power Off the unit, do the following: 1. Disconnect all the KVM cables from the CPU Port section of the switch (refer to page 10). 2. If you are using an external power adapter, unplug the switch's power adapter cable. -
Page 23: Chapter 4. Hotkey Operation
Chapter 4 Hotkey Operation The CS1742 / CS1744 hotkey function makes it convenient to operate your KVM installation from the keyboard. Asynchronous (independent) switching of the KVM, USB hub, and audio focus is supported. You can give one computer the KVM console focus, another the USB hub focus, while a third has the audio focus. -
Page 24: Going Directly To A Port
CS1742 / CS1744 User Manual Going Directly to a Port Hotkey Action [Scroll Lock] [Scroll Lock] [n] Brings the KVM, USB hub, and audio focus to the [Enter] computer attached to the port corresponding to the specified Port ID. Note: The KVM, USB hub, and audio focus all go to this port even if they were on different ports to begin with. -
Page 25: Auto Scanning
4. Hotkey Operation Auto Scanning The CS1742 / CS1744's Auto Scan feature automatically cycles the KVM focus through the computer ports at regular intervals. This allows you to monitor the computer activity without having to take the trouble of switching from port to port manually. -
Page 26: Hotkey Settings Mode
CS1742 / CS1744 User Manual Hotkey Settings Mode Hotkey Settings Mode (HSM) is used to set up your CS1742 / CS1744 switch configuration. All operations begin with invoking HSM. Invoking HSM To invoke HSM, do the following: 1. Press and hold down the Num Lock key. 2. -
Page 27: Alternate Hsm Invocation Keys
4. Hotkey Operation Alternate HSM Invocation Keys An alternate set of HSM invocation keys is provided in case the default set conflicts with programs running on the computers. To switch to the alternate HSM invocation set, do the following: 1. Invoke HSM (see page 16). 2. -
Page 28: Keyboard Operating Platform
CS1742 / CS1744 User Manual Keyboard Operating Platform The CS1742 / CS1744's default port configuration is for a PC Compatible keyboard operating platform. If you have a Mac or Sun attached to a port, you can change the port's keyboard operating platform configuration as follows: 1. -
Page 29: Usb Reset
4. Hotkey Operation USB Reset If the USB loses focus and needs to be reset, do the following: 1. Invoke HSM (see page 16). 2. Press and release the F5 function key. Hotkey Beeper Control The Beeper can be hotkey toggled On and Off. To toggle the Beeper, do the following: 1. -
Page 30: Restore Default Settings
CS1742 / CS1744 User Manual Restore Default Settings To reset the CS1742 / CS1744 to its default hotkey settings, do the following: 1. Invoke HSM (see page 16). 2. Press [R] [Enter]. All hotkey settings return to their factory default values. A table showing the CS1742 / CS1744's default settings is provided in the appendix on page 33. -
Page 31: Chapter 5. Keyboard Emulation
Chapter 5 Keyboard Emulation Mac Keyboard The PC compatible (101/104 key) keyboard can emulate the functions of the Mac keyboard. The emulation mappings are listed in the table below. PC Keyboard Mac Keyboard [Shift] Shift [Ctrl] Ctrl [Ctrl] [1] [Ctrl] [2] [Ctrl] [3] [Ctrl] [4] [Alt]... -
Page 32: Sun Keyboard
CS1742 / CS1744 User Manual Sun Keyboard The PC compatible (101/104 key) keyboard can emulate the functions of the Sun keyboard when the Control key [Ctrl] is used in conjunction with other keys. The corresponding functions are shown in the table below. PC Keyboard Sun Keyboard [Ctrl] [T]... -
Page 33: The Firmware Upgrade Utility
New firmware upgrade packages are posted on our web site as new firmware revisions become available. Check the web site regularly to find the latest packages and information relating to them: http://www.aten.com Preparation 1. From a computer that is not part of your KVM installation go to our... -
Page 34: Starting The Upgrade
CS1742 / CS1744 User Manual Starting the Upgrade To upgrade your firmware: 1. Run the downloaded Firmware Upgrade Package file - either by double clicking the file icon or by opening a command line and entering the full path to it. The Firmware Upgrade Utility Welcome screen appears: Note: The screens shown in this section are for reference only. - Page 35 6. The Firmware Upgrade Utility 4. After you have made your device selection(s), click Next to perform the upgrade. The firmware [Ver 1.0.] is not newer than the current firmware [Ver 1.0.090] in device CS1742/CS1744 [MAIN]: 000 Continue upgrade? [Yes/No] If you enabled Check Firmware Version, the Utility compares the device’s firmware level with that of the upgrade file.
-
Page 36: Upgrade Successful
CS1742 / CS1744 User Manual Upgrade Successful After the upgrade has completed, a screen appears to inform you that the procedure was successful: CS1742/CS1744 [MAIN].. CS1742/CS1744 [MAIN] CS1742/CS1744 [MAIN] CS1742/CS1744 [MAIN] To complete the upgrade: 1. Click Finish to close the Firmware Upgrade Utility. 2. -
Page 37: Upgrade Failed
6. The Firmware Upgrade Utility Upgrade Failed If the upgrade successful notice does not appear, it means that the upgrade failed to complete successfully; in which case, you should repeat the upgrade procedure from the beginning. Upgrade Interrupted If the firmware upgrade procedure is abnormally halted (due to computer crash, power failure, etc.), the switch may become inoperable. - Page 38 CS1742 / CS1744 User Manual This Page Intentionally Left Blank...
-
Page 39: Appendix
Appendix Safety Instructions General Read all of these instructions. Save them for future reference. Follow all warnings and instructions marked on the device. This product is for indoor use only. Do not place the device on any unstable surface (cart, stand, table, etc.). If the device falls, serious damage will result. - Page 40 CS1742 / CS1744 User Manual Install the power supply before connecting the power cable to the power supply. Unplug the power cable before removing the power supply. If the system has multiple sources of power, disconnect power from the system by unplugging all power cables from the power supplies. Never push objects of any kind into or through cabinet slots.
-
Page 41: Rack Mounting
Appendix Rack Mounting Before working on the rack, make sure that the stabilizers are secured to the rack, extended to the floor, and that the full weight of the rack rests on the floor. Install front and side stabilizers on a single rack or front stabilizers for joined multiple racks before working on the rack. -
Page 42: Technical Support
CS1742 / CS1744 User Manual Technical Support International For online technical support – including troubleshooting, documentation, and software updates: http://eservice.aten.com For telephone support, see Telephone Support, page iv. North America Email Support support@aten-usa.com Online Troubleshooting http://www.aten-usa.com/support Technical Documentation Support Software Updates... -
Page 43: Factory Default Settings
Appendix Factory Default Settings Pushbuttons and Hotkeys Setting Default Port Switching [Scroll Lock] [Scroll Lock] Invoking HSM [Num Lock] [ - ] Auto Scan Interval 5 seconds Beeper Keyboard Operating Platform PC-Compatible - Auto Detect Port Switching Keys Enabled... -
Page 44: Specifications
CS1742 / CS1744 User Manual Specifications Function CS1742 CS1744 Computer Connections Port Selection Front Panel Switches, Hotkey Connectors Console 1 x USB Type A F (Black) Ports Video 2 x HDB-15 F (Blue) Mouse 1 x USB Type A F (Black) Speaker 1 x Mini Stereo Jack F (Green) Mic. -
Page 45: Troubleshooting
Appendix Troubleshooting Operation problems can be due to a variety of causes. The first step in solving them is to make sure that all cables are securely attached and seated completely in their sockets. In addition, updating the product’s firmware may solve problems that have been discovered and resolved since the prior version was released. -
Page 46: About Sphd Connectors
CS1742 / CS1744 User Manual About SPHD Connectors This product uses SPHD connectors for its KVM and/or Console ports. We have specifically modified the shape of these connectors so that only KVM cables that we have designed to work with this product can be connected. Limited Warranty IN NO EVENT SHALL THE DIRECT VENDOR'S LIABILITY EXCEED THE PRICE PAID FOR THE PRODUCT FROM THE DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR... - Page 50 Manual Date: January 4, 2016, 12:00 pm © Copyright 2016 ATEN ® International Co., Ltd. ATEN and the ATEN logo are registered trademarks of ATEN International Co., Ltd. All rights reserved. All other brand names and trademarks are the registered property of their respective owners.
