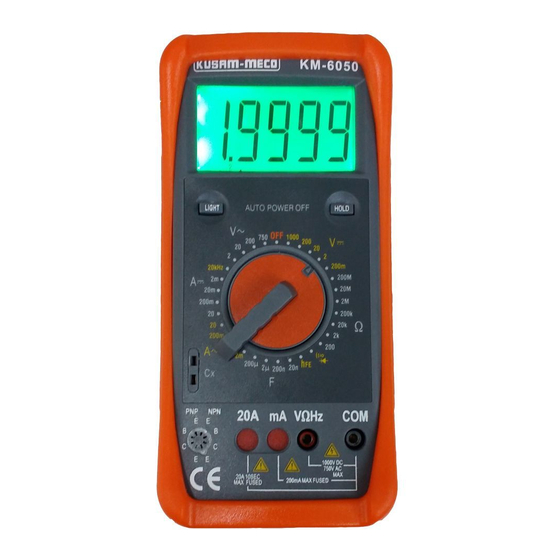

KM 6050
OPERATION
MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the KM 6050 and is the answer not in the manual?

Questions and answers

Related Manuals for Kusam-meco KM 6050

Summary of Contents for Kusam-meco KM 6050

  • Page 1 AC Clamp Adaptor DIGITAL AC/DC Current Adaptor Transistorised Electronic Analog & Digital MULTIMETER Insulation Resistance Testers(upto 10 KV) KM 6050 Digital Sound Level Meter & Sound Level Calibrator Digital contact & Non-contact Type Tachometer Digital Non-contact (infrared) Thermometer Thermo Hygrometer Thermo Anemometer Wood &...
  • Page 2 we damage them or “burn them out”. If you incorrectly...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS 1. GENERAL DESCRIPTION KM 6050 Digital Multimeter is featured with precise TITLE PAGE design, convenient operation, high performance multifunction, a new protection holster and big LCD SAFETY..............1 display. To avoid improper operation, the current jack applies mechanical protection device. Only when you select current measurement, the mA or CAUTION &...

  • Page 4: General Specification

    3. GENERAL SPECIFICATIONS 5) Never input signal level exceeding the limit value to avoid shock or damaging the Low power consumption CMOS double instrument. integration, A/D transform integrated circuit, Auto zero Calibration, Auto polarity display, 6) Don’t turn the function / range switch when Data hold, low battery and Over-range taking measurement.

  • Page 5: Electrical Specification

    4. ELECTRICAL SPECIFICATIONS DC CURRENT Accuracy : ± (% reading + digit) one year warranty. Range Accuracy Resolution Environment temperature : 23 C ± 5 C Relative humidity : <75% ±(0.5% + 2) DC VOLTAGE ±(0.75% + 5) 200 mA Range Accuracy Resolution...
  • Page 6 RESISTANCE FREQUENCY Range Accuracy Resolution Range Accuracy Resolution ±(0.2% + 5) ±(2% + 5) 0.01 20 kHz Voltage Protection : 250V DC or AC peak value. Input sensitivity : 150 mV RMS. ±(0.2% + 1) 200 K TRIODE HFE PARAMETER MEASUREMENT ±(0.5% + 5) Range Description...

  • Page 7: Electrical Symbols

    ELECTRICAL SYMBOLS 6. MULTIMETER STRUCTURE DC Current or Voltage AC Current or Voltage Diode Buzzer Low Battery Cautions Double Insulation Earth (Ground) 20A mA Danger High Voltage V Hz 1. LCD display 2. Function / range selection 3. Test lead jack 4.

  • Page 8: Measurement Procedure

    ” indicates not to measure voltage over 1000V. Although it may display the digit, it 1. DC Voltage Measurement : may damage the meter. D. Take extreme care when measuring high KM 6050 voltage. 2. AC Voltage Measurement : POWER LIGHT...
  • Page 9 Now replace the Fuse. The Fuse specifications is 0.2A / 250V. 3. DC Current Measurement : D. When doing 20A jack input, time for inputing the highest current 20A should not exceed 15 KM 6050 seconds. 4. AC Current Measurement : Supply KM 6050...
  • Page 10 5. Resistance Measurement : capacitors on the tested circuit. D. 200M position, there are about 10 digits KM 6050 when the red & black test leads are in short- circuit. Deduct these digits from the reading when measuring.
  • Page 11 C. Measurement unit : 1pF=10 F; 1nF=10 F. D. Don’t insert the capacitors with high voltage small signal. into the test jack direct. 8. Transistor hFE parameter measurement 7. Frequency Measurement: KM 6050 KM 6050 HOLD POWER LIGHT Insert Leads...
  • Page 12 9. Diode measurement : Remark : KM 6050 A. When the two test leads are in open-circuit state, it will display over-range (only “1” is displayed). LIGHT HOLD POWER B. Current going through the tested components Auto Power off 2K 20K 200K is approx 1mA.
  • Page 13 (360 ) and observe the motion of the resistance board. This will help you to get familiar with the meter’s function. Model KM 6050 digital Multimeter is provided with the mechanical protection function device as follows:...

  • Page 14: Maintenance

    2. Don’t forget to pull out the test lead before Select the display angle of the meter : turning the function / range switch so as not to KM 6050 provided with protection holsters, damage the mechanical protection system. which can support the meter in different angles as 3.

  • Page 15: Test Certificate

    The instrument has been calibrated by using equipment which has already been calibrated to standards traceable to national standards. KM 6050 MODEL NO. ___________ SERIAL NO. ___________ DATE: ___________ ISO 9001 KUSAM-MECO REGISTERED...

  • Page 16: Warranty

    WARRANTY THIS WARRANTY IS BUYER’S SOLE AND EXCLUSIVE REMEDY AND IS IN LIEU OF ALL Each “KUSAM-MECO” product is warranted to be OTHER WARRANTIES, EXPRESS OR IMPLIED, free from defects in material and workmanship INCLUDING BUT NOT LIMITED TO ANY IMPLIED under normal use &...
