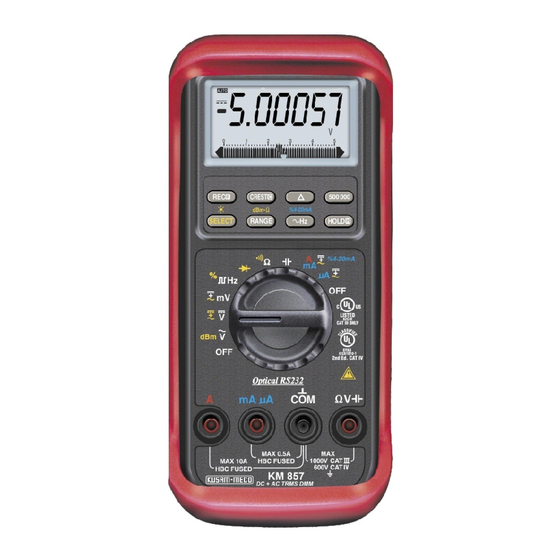

KM 857 / KM 859CF
OPERATION
MANUAL
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kusam-meco KM 857
Summary of Contents for Kusam-meco KM 857
- Page 1 AC/DC Current Adaptor DIGITAL Transistorised Electronic Analog & Digital MULTIMETER Insulation Resistance Testers(upto 10 KV) Digital Sound Level Meter & Sound Level KM 857 / KM 859CF Calibrator Digital contact & Non-contact Type Tachometer Digital Non-contact (infrared) Thermometer Thermo Hygrometer Thermo Anemometer Wood &...
-
Page 2: Digital Multimeter
TAKE MEASUREMENTS CAREFULLY AND YOU’LL SPARE YOUR METER AND YOURSELF, SOME PAIN we damage them or “burn them out”. If you incorrectly DIGITAL MULTIMETER KM 857 KM 859CF... -
Page 3: Table Of Contents
TABLE OF CONTENTS 1) SAFETY This manual contains information and warnings TITLE PAGE that must be followed for operating the instrument safely and maintaining the instrument in a safe SAFETY..............1 operating condition. If the instrument is used in a manner not specified by the manufacturer, the protection provided by the instrument may be CAUTION &... - Page 4 Do not measure any current that exceeds the Measurement Category III (CAT III) is for measure- current rating of the protection fuse. ments performed in the building installation. Examples are measurements on distribution boards, Do not attempt a current measurement to any circuit-breakers, wiring, including cables, bus-bars, circuit where the open circuit voltage is above the junction boxes, switches, socket-outlets in the fixed...
-
Page 5: General Specification
Category IV 600V AC & DC. stable mode 5-4/5 digits 500,000counts Overload Protections : for DC Voltage, & 6 digits 999,999 counts KM 857 : for Hz Polarity : Automatic A & mA : 1A/600V, IR 10kA or better,... -
Page 6: Electrical Specification
4) ELECTRICAL SPECIFICATIONS APO Consumption : 55 A typical for (KM 857) 30 A typical for (KM859CF) Accuracy is ± (% reading digits + number of digits) or otherwise specified, at 23 C ± 5 C & less than Dimension : 186(L) x 87(W) x 35.5(H)mm 75% relative humidity. - Page 7 DC VOLTAGE 5kHz--20kHz 1kHz--20kHz Range KM859CF KM857 500.00mV 0.5%+20d 1dB** Accuracy* 5.0000V, 0.8%+20d 2dB** 500.00mV, 50.000V 0.02%+2d 0.03%+2d 5.0000V, 50.000V 500.00V 0.5%+20d 3dB** 500.00V 0.04%+2d 0.05%+2d 1000.0V Unspec'd Unspec'd 20kHz--100kHz 1000.0V 0.05%+2d 0.1% +2d 500.00mV 2.5%+40d NMRR : >60dB @50/60Hz 5.0000V, CMRR : >120dB @DC, 50/60Hz, Rs=1k 4.0%+40d**...
- Page 8 CAPACITANCE AC & AC+DC CURRENT Range Accuracy* KM859CF KM857 Burden Range 50.00nF 0.8% + 3d Voltage Accuracy 500.0nF 0.8% + 3d 50Hz -- 60Hz 1.5% + 3d 5.000 F 500.00 A 0.15mV/ A 2.5% + 3d 50.00 F 500.0 F** 3.5% + 5d 5000.0 A 0.15mV/ A...
-
Page 9: Product Description
DC LOOP CURRENT %4--20MA 5) PRODUCT DESCRIPTION 4mA = 0% (zero) Panel IIIustration 20mA = 100% (span) Resolution : 0.01% Accuracy : ± 25d Crest mode (Instantaneous Peak Hold) Accuracy : Specified accuracy ±100 digits for changes > 0.8ms in duration ~ HZ LINE LEVEL FREQUENCY Function Sensitivity... - Page 10 Average sensing RMS calibrated DC+AC True RMS RMS (Root-Mean-Square) is the term used to DC + AC True RMS calculates both of the AC and describe the effective or equivalent DC value of an DC components given expression AC signal. Most digital multimeters use average DC +(AC rms) When making measurement, and sensing RMS calibrated technique to measure RMS can respond accurately to the total effective RMS...
-
Page 11: Operation
NMRR (Normal Mode Rejection Ratio) 6) OPERATION NMRR is the DMM's ability to reject unwanted AC noise effect that can cause inaccurate DC CAUTION measurements. NMRR is typically specified in Before and after hazardous voltage measurements, terms of dB (decibel). This series has a NMRR test the voltage function on a known source such specification of >... - Page 12 Note : In dBm function, power up default reference impedance will be displayed for 1 second before displaying the dBm readings. Press dBm- (RANGE) button momentary to select different reference impedance of 4, 8, 16, 32, 50, 75, 93, 110, 125, 135, 150, 200, 250, 300, 500, 600, 800, 900, 1000, up to 1200 .
- Page 13 Note : Line Level Frequency measuring function input sensitivity varies automatically with voltage (or current) function range selected. The lower the measuring range the higher the sensitivity. That is, mV function has the highest and the 1000V range has the lowest as in voltage function ranges. It is recommended to first measure the signal voltage (or current) level then activate the Hz function in that voltage (or current) range to...
- Page 14 T1-T2 Dual Channels Temperature function (KM859CF only) Press SELECT button momentarily to toggle between C and F readings, and the new setting will be saved automatically in the non-volatile memory as power up default. Press T1-T2(RANGE) button momentarily to select T1,T2, or T1-T2 readings.
- Page 15 RESISTANCE, CONTINUITY FUNCTIONS CAPACITANCE, DIODE TEST Press SELECT button momentarily to toggle FUNCTION between Continuity function. The new Press SELECT button momentarily to toggle setting will be saved automatically to the non- between Capacitance and Diode test volatile memory as power up default. Continuity function.
- Page 16 A, mA, A, and %4-20mA Current functions Insert the red test lead into the correct A/mA or A input jack. Press SELECT button momentarily to select DC, AC, or DC+AC. The new settings will be saved automatically to the non-volatile memory as power up default.
- Page 17 MAX/MIN RECORDING mode Warning: When measuring a Press REC button momentarily to activate 3-phase system, special M A X / M I N r e c o r d i n g m o d e . T h e L C D attention should be taken to annunciators "R"...
- Page 18 500000 high resolution stable mode Beep-Jack Input Warning In DC voltage and frequency functions, press the The meter beeps as well as displays “InErr” to 500000 button momentarily to toggle between the 4- warn the user against possible damage to the 4/5 digits fast mode and the 5-4/5 digits high meter due to improper connections to the resolution stable mode.
-
Page 19: Maintenance
measuring functions through this terminal will then 7) MAINTENANCE be open circuit. The series fusible resistors and the WARNING spark gaps should then be replaced by qualified To avoid electrical shock, disconnect the meter technician. Refer to the LIMITED WARRANTY from any circuit, remove the test leads from the section for obtaining warranty or repairing service. -
Page 20: Test Certificate
Fuse replacement (and also Battery replacement for splash proof version without battery access door): Loosen the 4 screws from the case bottom. Lift the KM 857 / KM 859CF MODEL NO. _____________________ end of the case bottom nearest the input jacks until it unsnaps from the case top. -
Page 21: Limited Warranty
LIMITED WARRANTY THIS WARRANTY IS BUYER’S SOLE AND EXCLUSIVE REMEDY AND IS IN LIEU OF ALL Each “KUSAM-MECO” product is warranted to be OTHER WARRANTIES, EXPRESS OR IMPLIED, free from defects in material and workmanship INCLUDING BUT NOT LIMITED TO ANY IMPLIED under normal use &...
Need help?
Do you have a question about the KM 857 and is the answer not in the manual?
