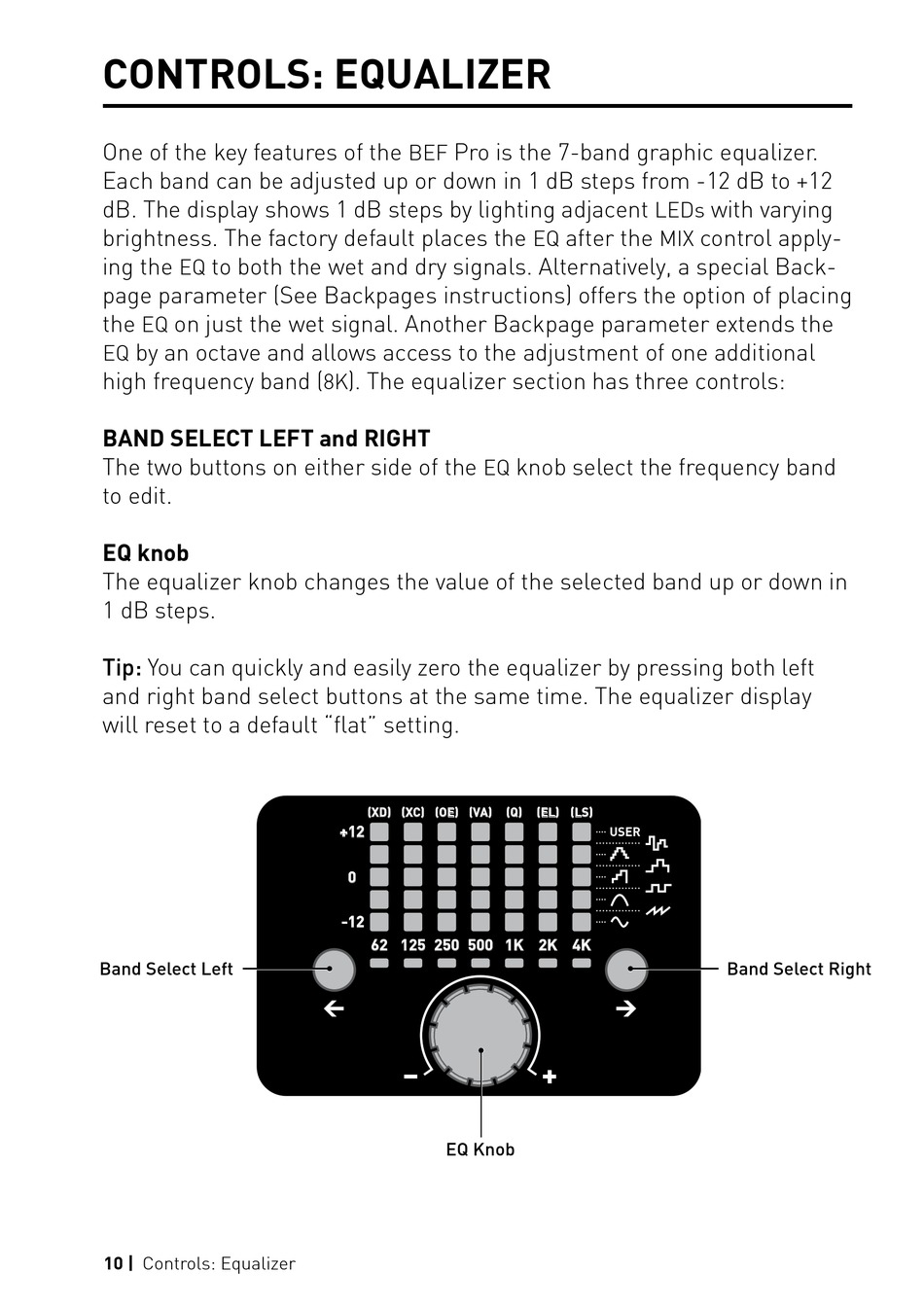

CONTROLS: EQUALIZER
One of the key features of the Pro is the 7-band graphic equalizer.
BEF
Each band can be adjusted up or down in 1 dB steps from -12 dB to +12
dB. The display shows 1 dB steps by lighting adjacent with varying
LEDs
brightness. The factory default places the after the control apply-
EQ MIX
ing the to both the wet and dry signals. Alternatively, a special Back-
EQ
page parameter (See Backpages instructions) offers the option of placing
the on just the wet signal. Another Backpage parameter extends the
EQ
by an octave and allows access to the adjustment of one additional
EQ
high frequency band ( ). The equalizer section has three controls:
8K
BAND SELECT LEFT and RIGHT
The two buttons on either side of the knob select the frequency band
EQ
to edit.
EQ knob
The equalizer knob changes the value of the selected band up or down in
1 dB steps.
tip: You can quickly and easily zero the equalizer by pressing both left
and right band select buttons at the same time. The equalizer display
will reset to a default "flat" setting.
(XD) (XC) (OE) (VA) (Q) (EL) (LS)
+12
USER
0
-12
62 125 250 500 1K 2K 4K
Band Select Left Band Select Right
< >
Eq Knob
