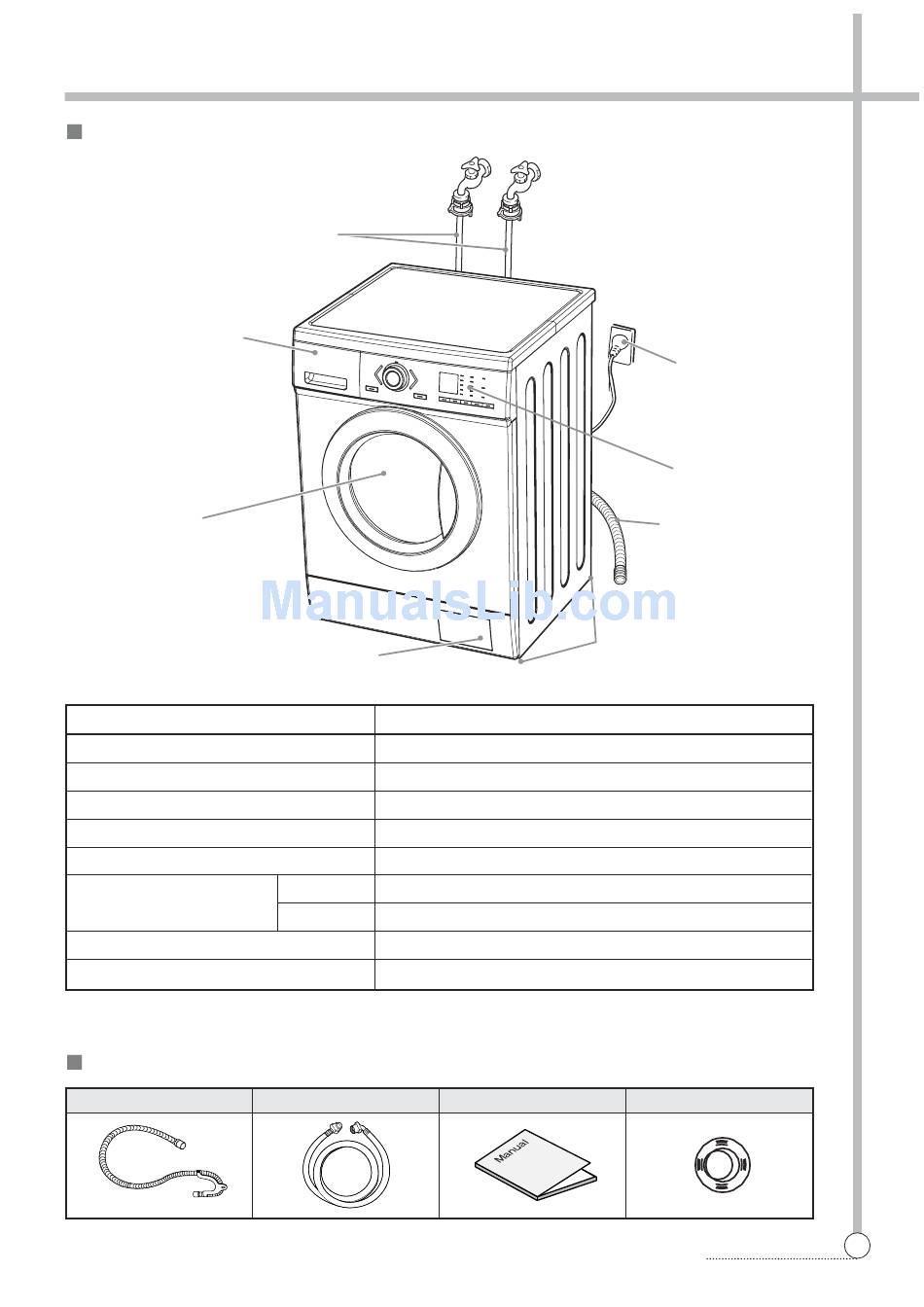

DWD-FD145X SERIES
DETERGENT CASE
DOOR
MODEL
POWER SOURCE
DiMENSION (WXDXH)
WEIGHT
WATER CONSUMPTION
POWER CONSUMPTION
MAXIMUM MASS
OF TEXTILE
WASHER TYPE
OPERATING WATER PRESSURE
Accessories
Hose drain
HOT
(OPTION)
INLET HOSE
LOWER COVER
WASH
SPIN
DRUM TYPE (FRONT LOADING WASHING MACHINE)
Inlet hose
COLD
ADJUSTABLE LEG
DWD-FD1451/1452/1453/1454/1455
220-240V/50-60Hz
595mm x 540mm x 850mm
58 kg
56.1ℓ
2200W
7 kg
7 kg
0.3 ~ 8kgf/cm
(29.4 ~ 784kPa)
2
Manual
POWER CORD
CONTROL PANEL
HOSE DRAIN
Cap holder(3EA)
SPECIFICATIONS
5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DWD-FD1451 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Daewoo DWD-FD1451

Summary of Contents for Daewoo DWD-FD1451

  • Page 1 COLD (OPTION) INLET HOSE DETERGENT CASE POWER CORD CONTROL PANEL DOOR HOSE DRAIN ADJUSTABLE LEG LOWER COVER MODEL DWD-FD1451/1452/1453/1454/1455 POWER SOURCE 220-240V/50-60Hz DiMENSION (WXDXH) 595mm x 540mm x 850mm WEIGHT 58 kg WATER CONSUMPTION 56.1ℓ POWER CONSUMPTION 2200W MAXIMUM MASS...

  • Page 2: Installation

    2. INSTALLATION Transit bolts Transit bolts The appliance is fitted with transit bolts to prevent internal damage during transport. The appliance is fitted with transit bolts to prevent internal damage during transport. Removing transit bolts Removing transit bolts 1. To prevent internal damage during transport, the 2.

  • Page 3: Installation Place Requirement

    Installation place requirement Level floor : Allowable slope under entire washer is 1°. Power outlet : Must be with 1.5 meters of entire side of location of washer. Do not overload the outlet with more than one appliance. Additional Clearance : For wall, door and floor modeling is required.

  • Page 4: Connecting Inlet Hose

    Connecting inlet hose In using only one water tap or in case of only one water inlet valve, connect the inlet hose to the cold water inlet valve. Option : Be careful not to confuse hot water inlet and cold water inlet. FOR ORDINARY TAP 1 Pull down the collar 2 Loosen the four...

  • Page 5: Installation Of Drain Hose

    Installation of drain hose Installation of drain hose • When installing the drain hose in sink, secure it tightly with a string. • Proper securing of the drain hose will protect the floor from damage due to water leakage. • The drain hose should not be placed higher than 100cm above the floor.

  • Page 6: Level Adjustment

    Level adjustment 1. The level adjustment of the washing machine prevents excessive noise and vibration. Install the washing machine on a solid and even floor surface, if possible, in a corner of the room. Note: The wooden floor may cause excessive vibration.

  • Page 7: Maintenance

    3. MAINTENANCE Before cleaning the washer interior, unplug the electrical power cord avoid electrical shock hazards. Cleaning your washer 1. Exterior Proper care of your washer can extend its life. The outside of the machine can be cleaned with warm water and a neutral non abrasive household detergent. Immediately wipe off any spills.

  • Page 8: Cleaning The Water Inlet Filter

    Cleaning the water inlet filter Cleaning the water inlet filter • "IE" error message will blink on the control panel when water does not enter the detergent drawer. • "IE" error message will blink on the control panel when water does not enter the detergent drawer. •...

  • Page 9: Cleaning The Detergent Case

    Cleaning the detergent case Cleaning the detergent case After a while detergents and fabric softeners leave a deposit in the detergent case. After a while detergents and fabric softeners leave a deposit in the detergent case. • It should be cleaned from time to time with a jet of running water. •...

  • Page 10: Direction For Disassembly

    4. DIRECTION FOR DISASSEMBLY DOOR LOCK SWITCH 1) Open the door and remove the gasket clamp. 2) Remove the gasket from the front cabinet. 3) Remove two screws, and remove the door lock switch. HEATER AND THERMISTOR 1) Remove five screws on the COVER B and separate 2) Remove the connectors of the HEATER.
  • Page 11 3) Remove the nut using the 10mm hex wrench and 4) Loose the nut of the HEATER and pull out the remove the earth terminal from the HEATER. HEATER. BLDC MOTOR 1) Remove the nut using the 17mm hex wrench. 2) Pull out the ROTOR.

  • Page 12: Drain Pump

    DRAIN PUMP 1) Lay the right side of the washer on the floor, and 2) Remove connectors. remove the lower panel by pressing six sanp fits. 3) Remove the screw, and remove the drain pump from 4) Remove the drain hose. the lower frame.

  • Page 13: Explode View And Parts List

    5. EXPLODE VIEW AND PARTS LIST BOX INLET AS DWD-F1X6X SERIES DWD-F1X7X SERIES EXPLODE VIEW AND PARTS LIST...
  • Page 14 PANEL FRONT AS (DWD-FD145X SERIES) Time Save Door Lock Child Lock PART NAME PART CODE SPECIFICATION Q'TY REMARK 3614290100 HIPS, D-FU125'S DWD-FD1451(2) PANEL F 3614290110 ABS D-FU1253'S DWD-FD1453 3616644900 DWD-FD1451(2) BUTTON POWER 3616644910 ABS + SPRAY DWD-FD1453 WINDOW COURSE 3615509500...
  • Page 15 Detailed Part Code of PCB AS (DONGSUH) No. PART NAME PART CODE SPECIFICATION Q'TY REMARK PRPSSWFE51 RENE, FAIR, NON-EC, COLD, HOT, BUBBLE, 1W PRPSSWFE52 RENE, FAIR, NON-EC, COLD, HOT, NON-BUBBLE, 1W PRPSSWFE53 RENE, FAIR, NON-EC, COLD, BUBBLE, 1W PRPSSWFE54 RENE, FAIR, NON-EC, COLD, NON-BUBBLE, 1W PRPSSWFE55 RENE, FAIR, EC, COLD, HOT, BUBBLE, 1W PRPSSWFE56...
  • Page 16 No. PART NAME PART CODE SPECIFICATION Q'TY REMARK PRPSSWFE7E RENE, FAIR, EC, COLD, HOT, BUBBLE, NON-1W 3rd PANEL PRPSSWFE7F RENE, FAIR, EC, COLD, HOT, NON-BUBBLE, NON-1W (DWD- FD143X PRPSSWFE7G RENE, FAIR, EC, COLD, BUBBLE, N0N-1W SERIES) PRPSSWFE7H RENE, FAIR, EC, COLD, NON-BUBBLE, NON-1W PRPSSWFE81 RENE, FAIR,, NON-EC, COLD, HOT, BUBBLE, 1W PRPSSWFE82...
  • Page 17 Detailed Part Code of PCB AS (NEWMOTECH) PART NAME PART CODE SPECIFICATION Q'TY REMARK PRPSSWFF51 D-FD141,RENE,FAIR,NON-EC,HOT,BB,1W,N/M PRPSSWFF52 D-FD141,RENE,FAIR,NON-EC,HOT,NON-BB,1W,N/M PRPSSWFF53 D-FD141,RENE,FAIR,NON-EC,COLD,BB,1W,N/M PRPSSWFF54 D-FD141,RENE,FAIR,NON-EC,COLD,NON-BB,1W,N/M PRPSSWFF55 D-FD141,RENE,FAIR,EC,HOT,BB,1W,N/M PRPSSWFF56 D-FD141,RENE,FAIR,EC,HOT,NON-BB,1W,N/M 1st PANEL PRPSSWFF57 D-FD141,RENE,FAIR,EC,COLD,BB,1W,N/M (DWD- PRPSSWFF58 D-FD141,RENE,FAIR,EC,COLD,NON-BB,1W,N/M FD141X PRPSSWFF5A D-FD141,RENE,FAIR,NON-EC,HOT,BB,NON-1W,N/M SERIES) PRPSSWFF5B D-FD141,RENE,FAIR,NON-EC,HOT,NON-BB,NON-1W,N/M PRPSSWFF5C D-FD141,RENE,FAIR,NON-EC,COLD,BB,NON-1W,N/M PRPSSWFF5D D-FD141,RENE,FAIR,NON-EC,COLD,NON-BB,NON-1W,N/M...
  • Page 18 PART NAME PART CODE SPECIFICATION Q'TY REMARK PRPSSWFF7E D-FD143,RENE,FAIR,EC,HOT,BB,NON-1W,N/M 3rd PANEL (DWD- PRPSSWFF7F D-FD143,RENE,FAIR,EC,HOT,NON-BB,NON-1W,N/M FD143X PRPSSWFF7G D-FD143,RENE,FAIR,EC,COLD,BB,NON-1W,N/M SERIES) PRPSSWFF7H D-FD143,RENE,FAIR,EC,COLD,NON-BB,NON-1W,N/M PRPSSWFF81 D-FD144,RENE,FAIR,NON-EC,HOT,BB,1W,N/M PRPSSWFF82 D-FD144,RENE,FAIR,NON-EC,HOT,NON-BB,1W,N/M PRPSSWFF83 D-FD144,RENE,FAIR,NON-EC,COLD,BB,1W,N/M PRPSSWFF84 D-FD144,RENE,FAIR,NON-EC,COLD,NON-BB,1W,N/M PRPSSWFF85 D-FD144,RENE,FAIR,EC,HOT,BB,1W,N/M PRPSSWFF86 D-FD144,RENE,FAIR,EC,HOT,NON-BB,1W,N/M PRPSSWFF87 D-FD144,RENE,FAIR,EC,COLD,BB,1W,N/M 4th PANEL (DWD- PRPSSWFF88 D-FD144,RENE,FAIR,EC,COLD,NON-BB,1W,N/M FD144X PRPSSWFF8A D-FD144,RENE,FAIR,NON-EC,HOT,BB,NON-1W,N/M SERIES)
  • Page 19 CABINET FRONT AS • 2 pcs Type PART NAME PART CODE SPECIFICATION Q'TY REMARK 3610811220 SECD 0.7T DWD-FD14X1(2) CABINET *F 3610811210 PCM, SGCC 0.8T, SILVER DWD-FD14X3 SWITCH DOOR LOCK 3619047100 DL-LC BITRON_3P 250V 16A BI-METAL SCREW TAPPING 7122401208 T2S TRS 4X12 SUS PLATE HINGE SUPPORT 3614531900 SGCC T1.6...
  • Page 20 TUB ASS’Y EXPLODE VIEW AND PARTS LIST...
  • Page 21 PART NAME PART CODE SPECIFICATION Q'TY REMARK BALANCER WEIGHT F L/R 3616106320 FRONT, 5.5kg SPECIAL SCREW(BALANCER) 3616029400 SWCH 8.5X30 GASKET 3612321400 EPDM CLAMP GASKET AS 3611204520 HSW3,GS TUB *F 3618821010 FRPP FH7304GM SPECIAL SCREW(TUB) 3616029800 SWCH 6.5X30 FIXTURE HEATER 3612007300 SUS 0.7T 440°ø45 DRUM SUB AS 3617004002...
  • Page 22 CABINET AS EXPLODE VIEW AND PARTS LIST...
  • Page 23 PART NAME PART CODE SPECIFICATION Q'TY REMARK CABINET 3610811101 SGCC(GI), 0.7TX825.7X1630.8 DWD-FD'S SPECIAL SCREW 3616029100 M4x12.5, MACHINE FRAME UPPER 3612205801 SGCC T1.0 55X580 SCREW TAPPING 3616029950 TTS"S" HEX F/L 4X8 FRAME TOP *L 3612205601 SGCC T1.4 52x500 FRAME TOP *R 3612205701 SGCC T1.4 52x500 STOPPER SPRING...
  • Page 24 PLATE T AS + PANEL LOWER AS PART NAME PART CODE SPECIFICATION Q'TY REMARK 3614532900 DWD-800W(HIPS, MFC, WH) DWD-F1411(2) 3614532910 ABS+UV SPRAY, MFC, SILVER DWD-F1413 3614532920 DWD-F142X(HIPS, MFC, WH) DWD-F1421(2) 3614532930 ABS+UV SPRAY, MFC, SILVER DWD-F1423 3614533300 FX1X31~2, 41~2(HIPS, MFC, WH) DWD-F1431(2) DWD-F1441(2) DWD-F1451(2)
  • Page 25 DWD-FD145X SERIES Power Button Press this button to turn the power ON or OFF. Start/Pause Button This button is use to start wash cycle or stop temporarily. When you want to change program in operating, press this button. Temperature Button This button can be used to adjust temperature of water according to types of the load to be washed.
  • Page 26 Time Save Button By pressing this button, you can decrease pre-set washing time to 10 minutes. Time save is available in Cotton, Eco and Synthetic. Time Delay Button If you want to reserve the finishing time of washing, use this button. If the Time Delay button is pressed, '2:00' is displayed.

  • Page 27: Functions Of The Controller

    7. FUNCTIONS OF THE CONTROLLER ■ Sequence Chart Cotton Sythetic Division Progress Time Small Small Small Sensing 20sec. Water Supply 2min. Pre Wash 10min. 8min. Drain 1min. B-Spin 1min. Middle Spin 3min. Sensing 20sec. Water Supply 2min. Wash 1 90min. (Heating) 35min.
  • Page 28 Delicate Sports wear Wool Hand wash Quick 30 Rinse + Spin Division Progress Time 1X~5X 6X,7X Small Small Small Small Small Soak 30min. Water Supply 2min. (1min.) Wash 1 60min. (Heating) 50min. 35min. 30min. 5min. (13min.) Wash 2 20min. 10min. 5min.
  • Page 29 ■ Sequence Chart (for apply 'Islamic Rinse' option) Example) Apply 'Islamic Rinse' option with Cotton/Normal course. Cotton/Normal Islamic Rinse Option Division Progress Time S (A) L (B) S (a) L (b) Sensing 20sec. Water Supply 2min. Wash 1 30min. Same as Same as MAIN (Heating)

  • Page 30: Function Of The Convenient Service

    8. FUNCTION OF THE CONVENIENT SERVICE The test mode of the operation You can check the PCB AS and the operation of the washing machine simply. • The method to test and operate 1 Press the Power button. 2 Press the Option button 3 times while press the Temp button. At this time, the version is displayed on the Custom LED 3 Whenever the Time Delay button is pressed, the washing machine is operated as following.
  • Page 31 The spinning test mode You can continually spin the washing machine with constant speed. • The method to test and operate 1 Press the Power button. 2 Press the Time Save button 3 times while press Temp button. 3 '400' displays on '18:88 LED'. 400 means the spinning rpm. You can adjust the spinning rpm by pressing Spin button.

  • Page 32: Troubleshooting Guide

    9. TROUBLESHOOTING GUIDE This wahing machine is equipped with automatic safety function which detect and diagnose faults at an early stage and react appropriately. When the machine does not function properly or does not fuction at all, check the following points. SYMPTOM CAUSE SOLUTION...
  • Page 33 SYMPTOM CAUSE SOLUTION Washer does not start. Electronical power cord may not be Make sure plug fits tightly in wall outlet. plugged in or connection may be loose. House fuse blown, circuit breaker Reset circuit breaker or replace fuse. tripped, or a power outage has Do not increase fuse capacity.
  • Page 34 MESSAGE ERROR CAUSE SOLUTION The water tap is closed. Open the water tap. The filter of the valve inlet is clogged. Clean the filter of the valve inlet. The valve inlet is an inferior product or broke down. Change the valve inlet. WATER INLET The water level sensor (sensor pressure) is an inferior product Change the water level sensor...
  • Page 35 MESSAGE ERROR CAUSE SOLUTION The water temp. is over 45˚C in delicate & wool course. WATER TEMP. Change the thermistor wash. ERROR (The thermistor wash is an inferior product or broke down.) The heater wash dose not work. HEATER WASH Change the heater wash.

  • Page 36: Wiring Diagram

    10. WIRING DIAGRAM WIRING DIAGRAM...
