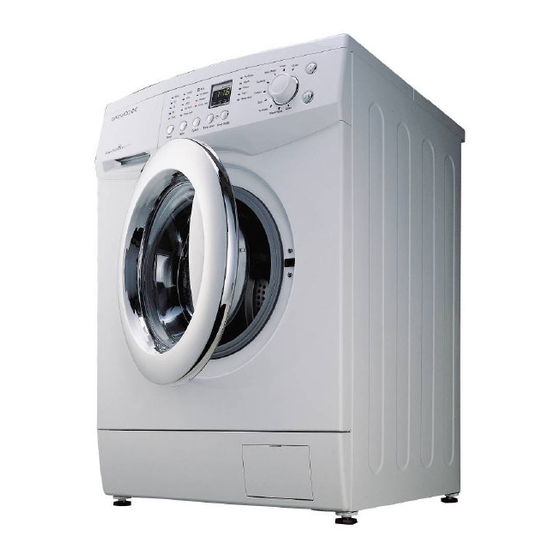

Service Manual

Washing Machine

Model: DWD-FD1411/1412/1413
DWD-FD1421/1422/1423
DWD-FD1431/1432/1433
Caution
: In this Manual, some parts can be changed for improving,
their performance without notice in the parts list. So, if you
need the latest parts information, please refer to PPL(Parts
Price List) in Service Information Center (http://svc.dwe.co.kr).
DAEWOO ELECTRONICS CORP.
http : //svc.dwe.co.kr
S/M No. :
Feb. 2007

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DWD-FD1411 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Daewoo DWD-FD1411

Summary of Contents for Daewoo DWD-FD1411

  • Page 1: Service Manual

    S/M No. : Service Manual Washing Machine Model: DWD-FD1411/1412/1413 DWD-FD1421/1422/1423 DWD-FD1431/1432/1433 Caution : In this Manual, some parts can be changed for improving, their performance without notice in the parts list. So, if you need the latest parts information, please refer to PPL(Parts Price List) in Service Information Center (http://svc.dwe.co.kr).

  • Page 2: Table Of Contents

    AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER...

  • Page 3: Specifications

    (OPTION) INLET HOSE DETERGENT CASE POWER CORD CONTROL PANEL DOOR HOSE DRAIN ADJUSTABLE LEG LOWER COVER MODEL DWD-FD1411 / 1412 POWER SOURCE 220-240V, 50/60Hz DiMENSION (WXDXH) 595mm x 540mm x 850mm WEIGHT 58 kg WATER CONSUMPTION 56.1 POWER CONSUMPTION 2200W...
  • Page 4 (OPTION) INLET HOSE DETERGENT CASE POWER CORD CONTROL PANEL DOOR HOSE DRAIN LOWER COVER ADJUSTABLE LEG MODEL DWD-FD1411/1412/1413, DWD-FD1421/1422/1423, DWD-FD1431/1432/1433 POWER SOURCE 220-240V, 50/60Hz DiMENSION (WXDXH) 595mm x 540mm x 850mm WEIGHT 58 kg WATER CONSUMPTION 56.1 POWER CONSUMPTION 2200W...

  • Page 5: Installation

    2. INSTALLATION Transit bolts Transit bolts The appliance is fitted with transit bolts to prevent internal damage during transport. The appliance is fitted with transit bolts to prevent internal damage during transport. Removing transit bolts Removing transit bolts 1. To prevent internal damage during trnasport, the 2.

  • Page 6: Installation Place Requirement

    Installation place requirement Level floor : Allowable slope under entire washer is 1° Power outlet : Must be with 1,5 meters of entire side of location of washer. Do not overload the outlet with more than one appliance. Additional Clearance : For wall, door and floor modeling is required.

  • Page 7: Connecting Inlet Hose

    Connecting inlet hose In using only one water tap or in case of only one water inlet valve, connect the inlet hose to the cold water inlet valve. Option : Be careful not to confuse hot water inlet and cold water inlet. FOR ORDINARY TAP 1 Pull down the collar 2 Loosen the four...

  • Page 8: Installation Of Drain Hose

    Installation of drain hose Installation of drain hose • When installing the drain hose in sink, secure it tightly with a string. • Proper securing of the drain hose will protect the floor from damage due to water leakage. • The drain hose should not be placed higher than 100cm above the floor.

  • Page 9: Level Adjustment

    Level adjustment 1. The level adjustment of the washing machine pre- vents excessive noise and vibration. Install the washing machine on a solid and even floor surface, if possible, in a corner of the room. Note: the wooden floor may cause excessive vibration.

  • Page 10: Maintenance

    3. MAINTENANCE Before cleaning the washer interior, unplug the electrical power cord avoid electrical shock hazards. Cleaning your washer 1. Exterior Proper care of your washer can extend its life. The outside of the machine can be cleaned with warm water and a neutral non abrasive houshold detergent. Immediately wipe off any spills.

  • Page 11: Cleaning The Water Inlet Filter

    Cleaning the water inlet filter Cleaning the water inlet filter • "IE" error message will blink on the control panel when water does not enter the detergent drawer. • "IE" error message will blink on the control panel when water does not enter the detergent drawer. •...

  • Page 12: Cleaning The Detergent Case

    Cleaning the detergent case Cleaning the detergent case After a while detergents and fabric softeners leave a deposit in the detergent case. After a while detergents and fabric softeners leave a deposit in the detergent case. • It should be cleaned from time to time with a jet of running water. •...

  • Page 13: Direction For Disassembly

    4. DIRECTION FOR DISASSEMBLY DOOR LOCK SWITCH 1) Open the door and remove the gaske clamp. 2) Remove the gasket from the front cabinet. 3) Remove two screws, and remove the door lock switch. HEATER AND THERMISTOR 1) Remove five screws on the COVER B and separate 2) Remove the connectors of the HEATER.
  • Page 14 3) Remove the nut using the 10mm hex wrench and 4) Loose the nut of the HEATER and pull out the remove the earth terminal from the HEATER. HEATER. BLDC MOTOR 1) Remove the nut using the 17mm hex wrench. 2) Pull out the ROTOR.

  • Page 15: Drain Pump

    DRAIN PUMP 1) Lay the right side of the washer on the floor, and 2) Remove connectors. remove the lower panel by pressing six sanp fits. 3) Remove the screw, and remove the drain pump from 4) Remove the drain hose. the lower frame.

  • Page 16: Explode View And Parts List

    5. EXPLODE VIEW AND PARTS LIST BOX INLET AS PART NAME PART CODE SPECIFICATION Q'TY REMARK 3612608700 DWD-FD1411(2) 3612608710 ABS+SPRAY DWD-FD1413 HANDLE CASE 3612608900 DWD-FD1421(2) 3612608910 ABS+SPRAY DWD-FD1423 3612609700 DWD-FD1431(2) 3612609710 ABS+SPRAY DWD-FD1433 CASE DETERGENT 3611140300 CAP SOFTENER 3610916600 BOX INLET...
  • Page 17 PANEL FRONT AS (DWD-FD141X SERIES) PART NAME PART CODE SPECIFICATION Q'TY REMARK 3814282700 DWD-FD1411(2) PANEL F 3814282710 SILVER SPRAY DWD-FD1413 3616603600 DWD-FD1411 BUTTON POWER 3616603620 ABS + AL COATING DWD-FD1412(3) WINDOW DIAL 3615503100 ABS-TR 3616603500 DWD-FD1411 BUTTON SELECT 3616603520 ABS + AL COATING...
  • Page 18 PANEL FRONT AS (DWD-FD142X SERIES) PART NAME PART CODE SPECIFICATION Q'TY REMARK 3614284500 DWD-FD1421(2) PANEL F 3614284510 SILVER SPRAY DWD-FD1423 3616604200 DWD-FD1421 BUTTON POWER 3616604210 ABS+AL COATING DWD-FD1422(3) WINDOW DIAL 3615503400 3616604100 DWD-FD1421 BUTTON SELECT 3616604110 ABS+AL COATING DWD-FD1422(3) WINDOW LED 3615503300 Refer to PCB AS...
  • Page 19 PANEL FRONT AS (DWD-FD141X SERIES) PART NAME PART CODE SPECIFICATION Q'TY REMARK 3614285800 DWD-FD1431(2) PANEL F 3614285810 ABS + SPRAY DWD-FD1433 3616635300 DWD-FD1431 BUTTON POWER 3616635310 ABS + SPRAY DWD-FD1432(3) WINDOW DIAL 3615504200 ABS-TR 3616635400 DWD-FD1431 BUTTON SELECT 3616635410 ABS + SPRAY DWD-FD1432(3) WINDOW DISPLAY 3615504300...
  • Page 20 Detailed Part Code of PCB AS PART NAME PART CODE SPECIFICATION Q'TY REMARK PCB AS PRPSSWFD07 DWD-FD141’s, EC, COLD V/V, NON-BB 1st PANEL PRPSSWFD08 DWD-FD141’s, EC, COLD V/V, BB PRPSSWFD09 DWD-FD141’s, EC, HOT V/V, NON-BB PRPSSWFD10 DWD-FD141’s, EC, HOT V/V, BB PRPSSWFD11 DWD-FD141’s, NON-EC, COLD V/V, NON-BB PRPSSWFD12...
  • Page 21 PIN HANDLE 3618200200 SUS304, D3, L48 SPRING HOOK 3615114600 SUS D1.4 HOOK DOOR 3613100700 ZNDC DOOR GLASS 361A110700 GLASS PI300 3612205100 DWD-FD1411 FRAME DOOR O 3612205140 CR6+ GILDING DWD-FD1412 SCREW TAPPING 7115402008 T1S FLT 4*20 SUS EXPLODE VIEW AND PARTS LIST...
  • Page 22 TUB ASS’Y EXPLODE VIEW AND PARTS LIST...
  • Page 23 PART NAME PART CODE SPECIFICATION Q'TY REMARK D01 BALANCER WEIGHT F L/R 3616106320 FRONT, 5.5kg D02 SPECIAL SCREW(BALANCER) 3616029400 SWCH 8.5X30 D03 GASKET 3612321400 EPDM D04 CLAMP GASKET AS 3611204500 HSWR D=1.8 D05 TUB FRONT 3618821010 FRPP FH7304GM D06 SPECIAL SCREW(TUB) 3616029800 SWCH 6.5X30 D07 FIXTURE HEATER...
  • Page 24 CABINET AS EXPLODE VIEW AND PARTS LIST...
  • Page 25 PART NAME PART CODE SPECIFICATION Q'TY REMARK CABINET 3610811100 SGCC, T0.8, PAINTING SPECIAL SCREW 3616029100 M4x12.5, MACHINE FRAME UPPER 3612205800 SGCC T1.2 55X580 SCREW TAPPING 3616029950 TTS"S" HEX F/L 4X8 FRAME TOP-L 3612205600 SGCC T1.6 52x500 FRAME TOP-R 3612205700 SGCC T1.6 52x500 STOPPER SPRING 3615202200 COVER B...
  • Page 26 PLATE T AS + PANEL LOWER AS PART NAME PART CODE SPECIFICATION Q'TY REMARK 3614532900 DWD-FD1411(2) 3614532910 SILVER SPRAY DWD-FD1413 3614532920 DWD-FD1421(2) PLATE T AS 3614532930 SILVER SPRAY DWD-FD1423 3614533300 DWD-FD1431(2) 3614533310 SILVER SPRAY DWD-FD1433 SCREW TAPPING 7122401411 T2S TRS 4X14 MFZN...

  • Page 27: Functions Of The Control Panel

    6. FUNCTIONS OF THE CONTROL PANEL DWD-FD141X SERIES Power Button Press this buton to turn the power ON or OFF. Start/Hold Button This button is use to start wash cycle or stop temporarily. When you want to change program in operating, press this button. Temperature Button This button can be used to adjust temperature of water according to types of the load to be washed.
  • Page 28 Time Save Button By pressing this button, you can decrease pre-set washing time to 10 minutes. Time save is available in Cotton, Eco and Synthetic. Time Delay Button If you want to reserve the finishing time of washing, use this button. If the Time Delay button is pressed, "2:00"...
  • Page 29 DWD-FD142X SERIES Power Button Press this buton to turn the power ON or OFF. Start/Hold Button This button is use to start wash cycle or stop temporarily. When you want to change program in operating, press this button. Temperature Button This button can be used to adjust temperature of water according to types of the load to be washed.
  • Page 30 Time Save Button By pressing this button, you can decrease pre-set washing time to 10 minutes. Time save is available in Cotton, Eco and Synthetic. Time Delay Button If you want to reserve the finishing time of washing, use this button. If the Time Delay button is pressed, "2:00"...
  • Page 31 DWD-FD143X SERIES Power Button Press this buton to turn the power ON or OFF. Start/Hold Button This button is use to start wash cycle or stop temporarily. When you want to change program in operating, press this button. Temperature Button This button can be used to adjust temperature of water according to types of the load to be washed.
  • Page 32 Time Save Button By pressing this button, you can decrease pre-set washing time to 10 minutes. Time save is available in Cotton, Eco and Synthetic. Time Delay Button If you want to reserve the finishing time of washing, use this button. If the Time Delay button is pressed, "2:00"...

  • Page 33: Functions Of The Controller

    7. FUNCTIONS OF THE CONTROLLER SEQUENCE CHART Cotton Synthetic Division Progress Time Sensing 20sec. Water Supply 2min. 10min. Pre Wash 8min. Drain 1min. B-Spin 1min. Middle Spin 3min. Sensing 20sec. Water Supply 2min. 70min. 60min. Wash 1 35min. (Heating) 30min. 20min.
  • Page 34 Wool Delicate Hand Wash Quick 30 Rinse+Spin Division Progress Time Soak 30min. 2min. Water Supply 1min. 15min. Wash 1 10min. (Heating) 5min. 20min. Wash 2 10min. 5min. Drain 1min. B-Spin 1min. Middle Spin 4min. 2min. Water Supply 1min. Rinse 1 3min.

  • Page 35: Function Of The Convenient Service

    8. FUNCTION OF THE CONVENIENT SERVICE The test mode of the operation You can check the PCB AS and the operation of the washing machine simply. • The method to test and operate 1 Press the Power button. 2 Press the Option button 3 times while press the Temp button. At this time, the version is displayed on the Custom LED 3 Whenever the Time Delay button is pressed, the washing machine is operated as following.
  • Page 36 The spinning test mode You can continually spin the washing machine with constant speed. • The method to test and operate 1 Press the Power button. 2 Press the Time Save button 3 times while press Temp button. 3 “300” displays on “18:88 LED”. 300 means the spinning rpm. You can adjust the spinning rpm by pressing Spin button.

  • Page 37: Troubleshooting Guide

    9. TROUBLESHOOTING GUIDE This wahing machine is equipped with automatic safety function which detect and diagnose faults at an early stage and react appropriately. When the machine does not function properly or does not fuction at all, check the following points. SYMPTOM CAUSE SOLUTION...
  • Page 38 SYMPTOM CAUSE SOLUTION Washer does not start. Electronical power cord may not be Make sure plug fits tightly in wall outlet. plugged in or connection may be loose. House fuse blown, circuit breker Reset circuit breaker or replace fuse. tripped, or a power outage has Do not increase fuse capacity.
  • Page 39 MESSAGE ERROR CAUSE SOLUTION The water tap is closed. Open the water tap. The filter of the valve inlet is clogged. Clean the filter of the valve inlet. The valve inlet is an inferior product or broke down. Change the valve inlet. WATER INLET The water level sensor (sensor pressure) is an inferior product Change the water level sensor...
  • Page 40 MESSAGE ERROR CAUSE SOLUTION The heater worked without the water in the tub. Check the water level. THERMISTOR WASH OVERHEATING The thermistor wash is an inferior product or broke down. Change the thermistor wash. ERROR The water temp. is over 45°C in delicate & wool course. WATER TEMP.
  • Page 42 DAEWOO ELECTRONICS CORP. 686, AHYEON-DONG MAPO-GU SEOUL, KOREA C.P.O. BOX 8003 SEOUL, KOREA TELEX: DWELEC K28177-8 CABLE: “DAEWOOELEC” PRINTED DATE: Mar. 2005 S/M No. :...
