MPS1/2 Speaker Cable Connections
and Suspension Instructions
In addition to the Main suspension Drop Cable,
a backup Safety Cable is required for proper
installation. Use wire rope or other drop line rated
for at least 100 lbs. to ensure a proper safety margin.
The attachment point on the structure from which
the speaker is to be anchored also must be able to
handle 100 lbs.
NOTE: If using suspension cables with a cladding,
be sure to strip away any coating so that clamping
device being used will be pressed in direct contact
with the bare wire cores.

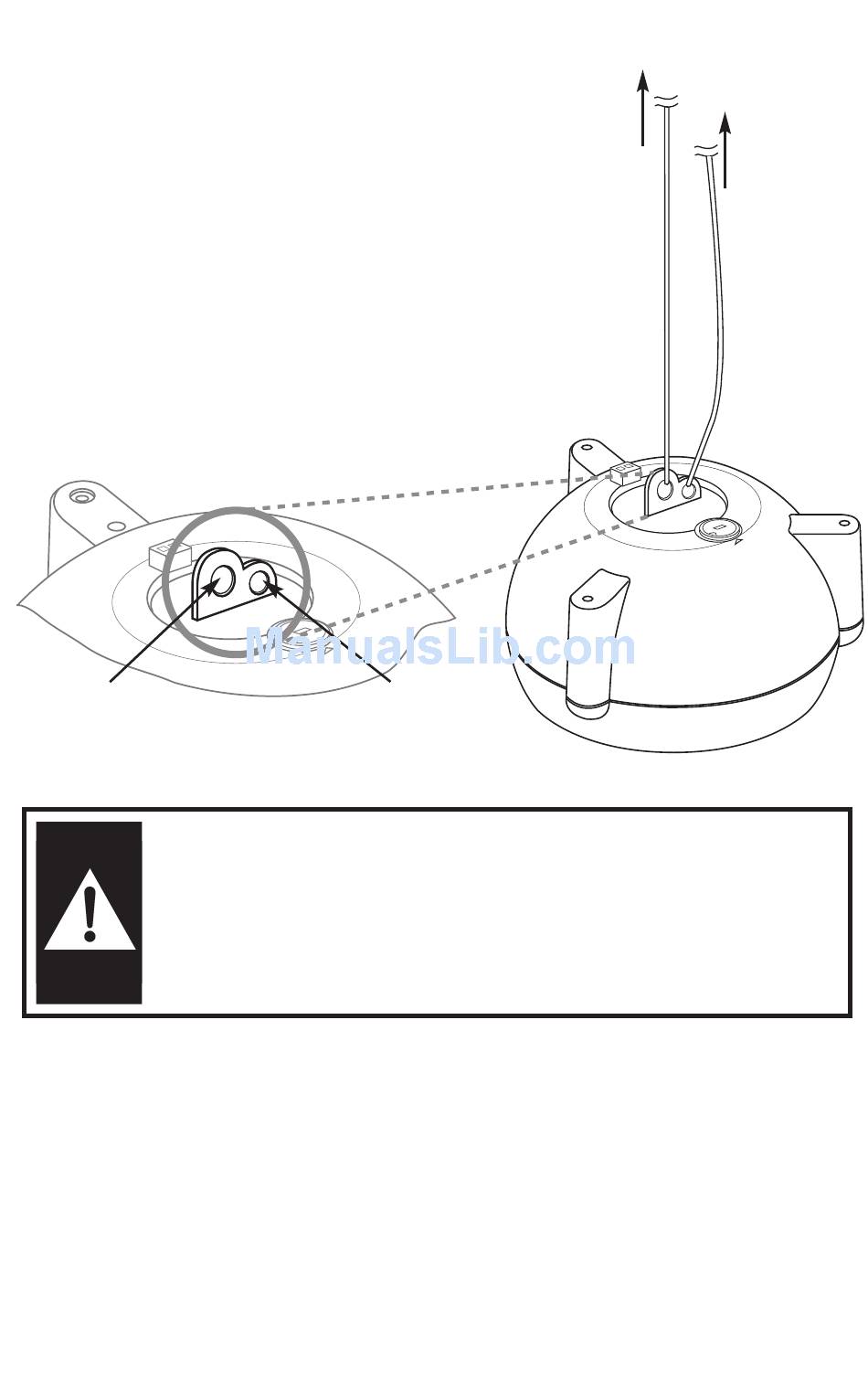

MPS1/2 SUSPENSION
ATTACHMENT
MAIN DROP
CABLE HOLE
NOTE: ALONG WITH THE MAIN DROP CABLE, YOU MUST ALSO
USE A SAFETY CABLE WHEN SUSPENDING AN MPS1/2 PENDANT
SPEAKER. BE SURE TO SECURE ALL RIGGING POINTS AND
FOLLOW ALL THE CABLE MANUFACTURERʼS MATERIAL
RECOMMENDATIONS & INSTALLATION INSTRUCTIONS. FAILURE
TO DO SO MAY RESULT IN PROPERTY DAMAGE, INJURY OR
DEATH, AND LEGAL LIABILITY FOR YOU AND/OR YOUR COMPANY.
Attach the main drop cable to the MPS1/2 Main Drop Cable hole in the Suspension
Attachment located on the top of the speaker. This Main Drop Cable will be the primary
connection that will hold all the suspended speakerʼs weight to the anchor point.
Likewise, attach the Safety Cable to the Safety Cable hole in the Suspension Attachment.
This Safety Cable is meant to be a safeguard only, so when attaching to an anchor point
allow for a small amount of slack in the wire, as the Safety Cable should not bear any of
the speakerʼs direct supension weight to keep the speaker hanging level.
IMPORTANT: The MPS1/2 Mini Pendant is not an outdoor speaker. DO NOT expose the
speaker to rain or moisture. The MPS1/2 should be installed by qualified personnel.
SAFETY
CABLE HOLE
TO SPEAKER
ANCHOR
POINT
MAIN
SAFETY
DROP
CABLE
CABLE
MINI PENDANT
SPEAKER
