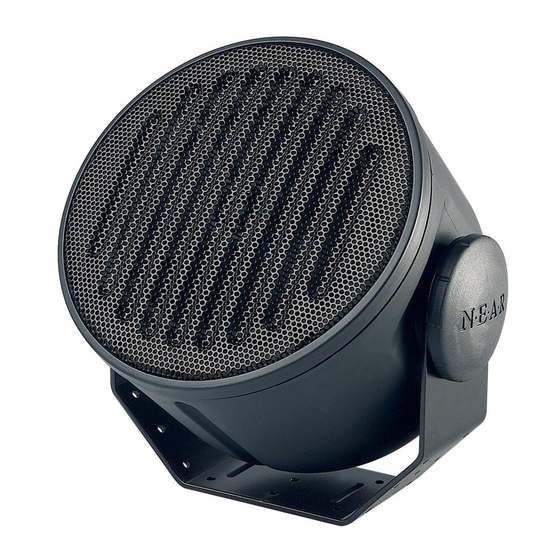

- Page 1 OWNER’S GUIDE MODELS A2, A6, A8, AND VARIATIONS A-SERIES ENVIRONMENT-PROOF INDOOR/OUTDOOR LOUDSPEAKERS 54-2033-02R2 Printed in Taiwan 0010...
- Page 2 NEAR A-SERIES ENVIRONMENT-PROOF INDOOR/OUTDOOR LOUDSPEAKERS BRACKET INSTALLATION A2 MODELS ONLY! FLAT SURFACE 90-DEGREE ADJOINING SURFACES CANTED (secure both ends) A6 and A8 models are too heavy for this type of mounting WARNING: Mounting brackets must be secured in accordance with local codes. If in doubt, consult a professional contractor to determine the integrity of the structure to which the bracket will be attached.
- Page 3 BACK-PANEL CONNECTIONS BACK PANEL OF 70V/100V MODELS BACK PANEL OF 8Ω MODELS MODEL A2T/E A6T/E A8T/E IN FROM AMP OR PRECEDING SPEAKER TAP (+) CONNECTIONS OUT TO NEXT SPEAKER COMMON (–) CONNECTIONS EXAMPLE OF 70V/100V SYSTEM CONFIGURATION AMPLIFIER WITH 70V/100V OUTPUT 70V/100V 5 SPEAKERS CONNECTED IN PARALLEL USING 16W TAPS NOTE: The total number of speakers multiplied by the tap value cannot exceed the output power...
-
Page 4: Specifications
• Long-term operation is more consistent since fluid doesn't change characteristics • Longer excursions with smaller diameter woofers; spiders limit excursions Ramsey, NJ 07446 U.S.A. tel 201-934-8500 fax 201-934-9832 • e-mail: nearspeakers@bogen.com www.nearspeakers.com • Specifications are subject to change without notice. ©2000 Bogen Communications, Inc.
