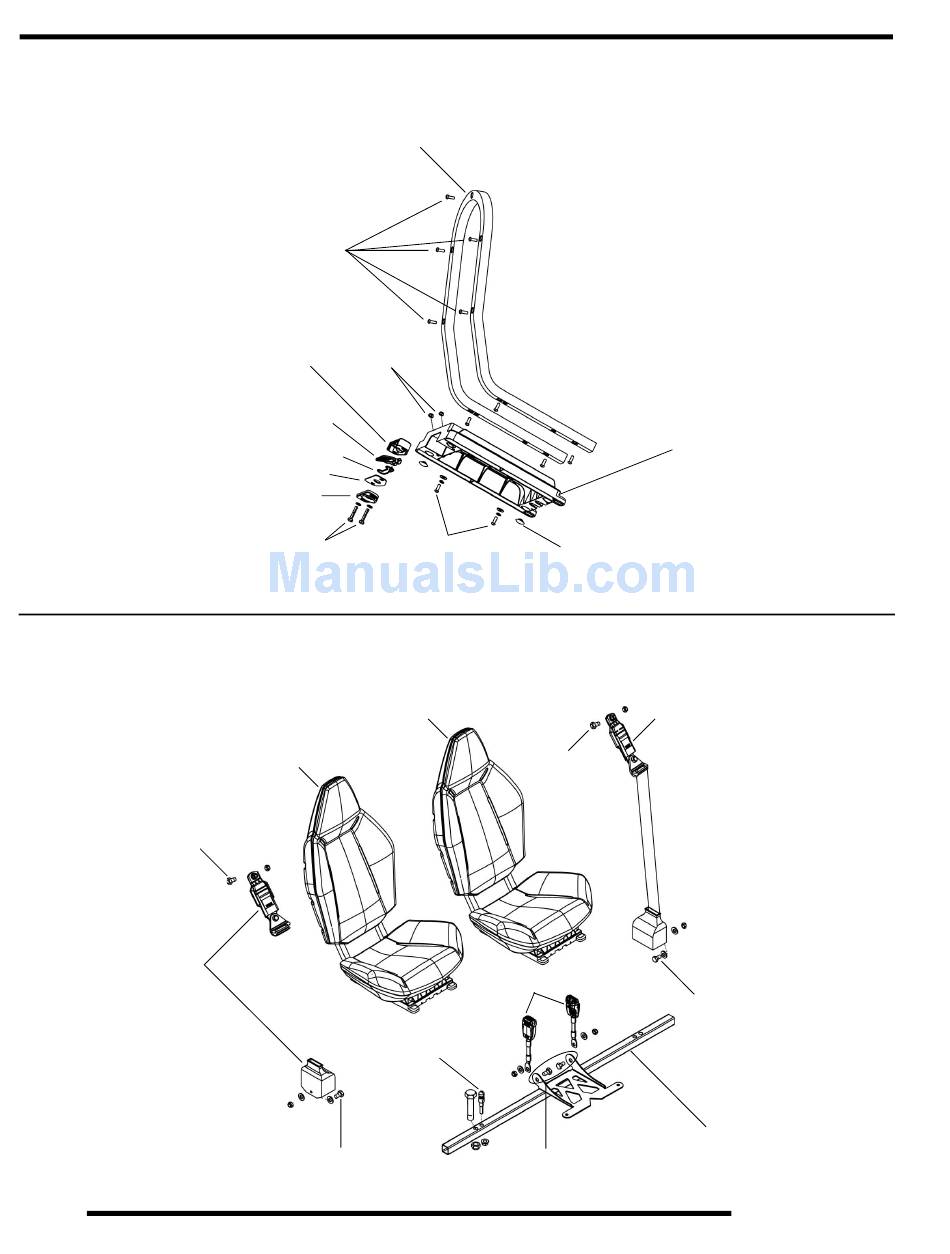

Seat Assembly

Seat Belts / Mounting

NOTE:Seat Style May
Differ Depending on
Model Number
40 ft. lbs.
(54 Nm)
3 Point
Seat Belt
5.6
Seat
Hoop Tube
48 in. lbs.
(5.4 Nm)
Latch Body
Nuts
Lever
Spring
Plate
Cap
41-57 in. lbs. 41-57 in. lbs.
(4.6-6.4 Nm)
(4.6-6.4 Nm)
Driver
Seat
Passenger
Seat
Latch
Plunger
40 ft. lbs.
(54 Nm)
Grommets
Seat Belt
40 ft. lbs.
(54 Nm)
3 Point
Seat Belt
40 ft. lbs.
(54 Nm)
Seat Base Asm.
3 Point
40 ft. lbs.
(54 Nm)
Rear
Seat Base
