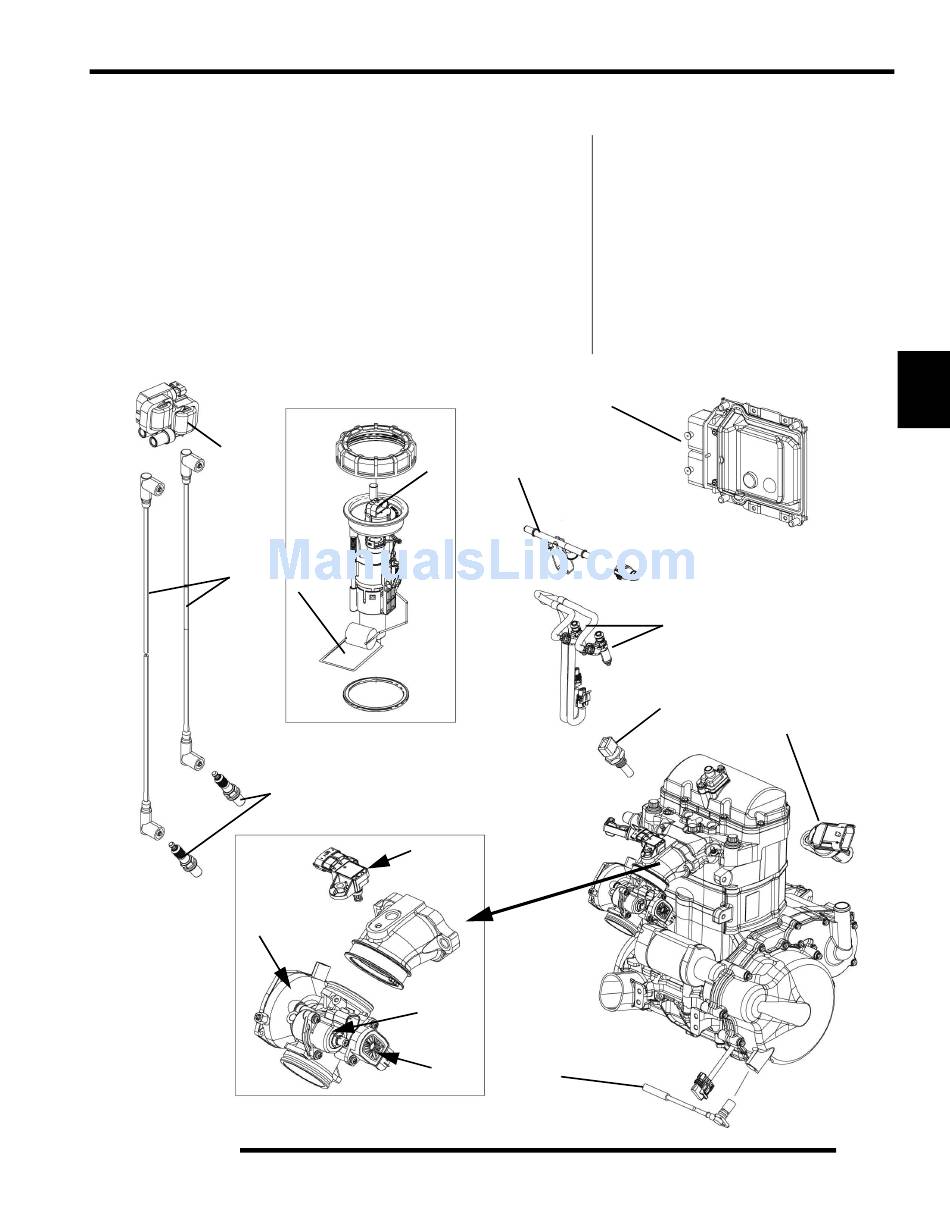

EFI System Exploded View

1. Electronic Control Unit (ECU)
2. Temperature / Manifold Absolute Pressure Sensor (T-MAP)
3. Crankshaft Position Sensor (CPS)
4. Fuel Injectors
5. Fuel Filter
6. Fuel Pump / Regulator / Fuel Level Sender (located in fuel tank)
7. Fuel Rail
8. Engine Coolant Sensor (ECT)
9. Throttle Position Sensor (TPS)
10. Throttle Body
11. Ignition Coil
12. Spark Plugs
11
13
10
6
5
12 12
2
14
9
ELECTRONIC FUEL INJECTION
13. Spark Plug Wires
14. IAC Motor (Idle Air Control Motor)
15. Camshaft Phase Sensor
1
7
4
8
3
4
15
4.5
