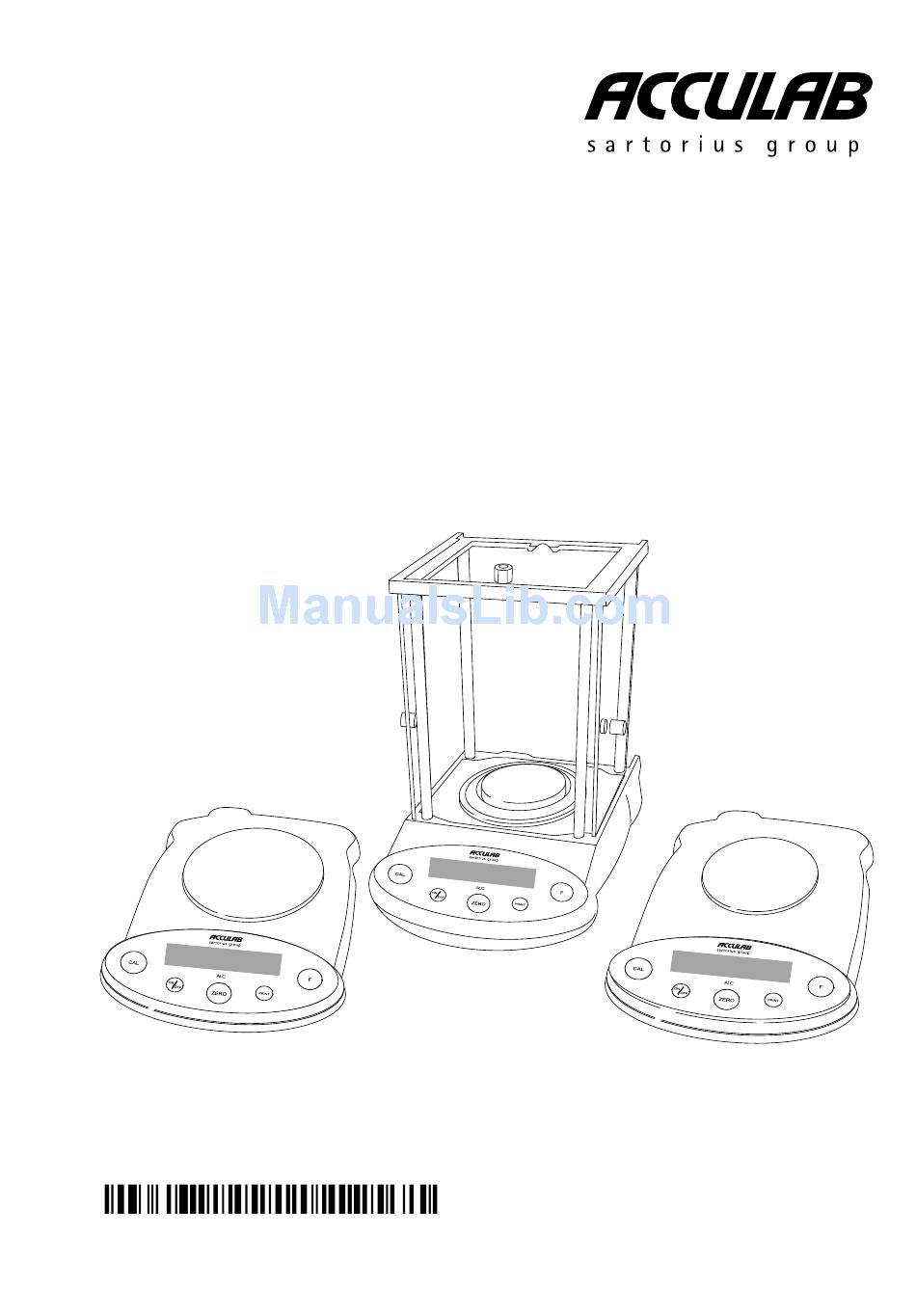

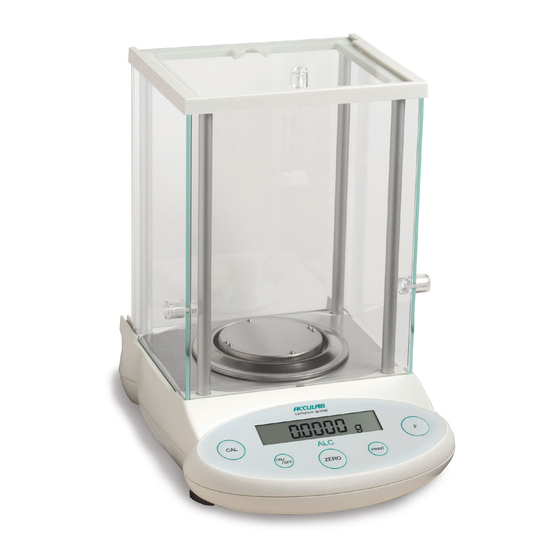

- Page 1 Acculab deep discount distributor Operating Instructions | Betriebsanleitung | Mode d’emploi | Istruzioni per l’uso | Manual de instrucciones ALC Models | ALC-Modelle | Modèles ALC | Modelli ALC | Serie ALC Electronic Analytical Balances and Precision Scales | Elektronische Analysen- und Präzisionswaagen | Balances électroniques d’analyse et de précision | Bilance elettroniche analitiche e di precisione |...
- Page 2 Acculab deep discount distributor Languages English page 3 In cases involving questions of interpretation, the German-language version shall prevail. Deutsch Seite 30 Im Auslegungsfall ist die deutsche Sprache maßgeblich. Français page 57 En cas de questions concernant l’interprétation, la version...
-
Page 3: Table Of Contents
Acculab deep discount distributor Practical Use Contents The Acculab ALC Series offers precision balances/scales 3 Practical Use with capacities ranging from 0.1 mg to 6 kg. 3 Warning and Safety Information 4 Getting Started These balances/scales meet the highest requirements on... -
Page 4: Getting Started
Acculab deep discount distributor Getting Started Storage and Shipping Conditions Installation Instructions Do not expose the balance/scale to shocks, vibration, Your balance/scale is designed to provide reliable moisture or extreme temperatures. weighing results under normal ambient conditions. - Page 5 Acculab deep discount distributor Setting up the Balance/Scale Balances/Scales with an Analytical Draft Shield Chamber: § Place the components listed below inside the chamber in the order given: – Shield plate – Shield ring – Pan support –...
- Page 6 Acculab deep discount distributor Connecting the Balance/Scale to AC Power/Safety Precautions Use only original Acculab AC adapters: – for Europe: 6971948 – for the RSA: 6971949 – for the U.S.: 6971947 – for Australia: 6971950 § Insert the right-angle plug into the jack §...
- Page 7 Acculab deep discount distributor Selecting the Line Voltage (Mains Voltage) Use the following original AC adapters for selecting the line voltage: – AC adapter TNG8, order no. 6971951 (universal) – AC adapter TNG8, order no. 6971952 (for the U.K.)
-
Page 8: Operating The Balance/Scale
Acculab deep discount distributor Operating the Balance/Scale Basic Weighing Function Available Features – Taring the balance/scale You can tare the balance/scale within the entire weighing range. Preparation § Turn on the balance/scale: Press [ON/OFF] § To change configurations: See the chapter entitled “Configuring the Balance/Scale”... -
Page 9: Calibration/Adjustment
Acculab deep discount distributor Calibration/Adjustment* Always calibrate/adjust the balance/scale after setting it up in a new location. Available Features Calibration/adjustment can only be performed when – there is no load on the balance/scale, – the balance/scale is tared, –... -
Page 10: Application Programs
Acculab deep discount distributor Application Programs Net-Total Formulation/Second Tare Memory With this application program you can weigh in components for formulation of a mixture. Preparation Configure the Net-Total Formulation/Second Tare Memory application in the operating menu: See “Configuring the Balance/Scale”... -
Page 11: Counting
Acculab deep discount distributor Counting Purpose With the Counting program you can determine the number of parts that each have approximately equal weight. Available Features – Store the current weight value to have it loaded as the preset reference sample quantity next time you initialize the Counting application –... - Page 12 Acculab deep discount distributor Example Determine an unknown piece count; weigh the preset reference sample quantity Settings (changes in the factory settings required for this example): Menu: Application program: Counting (menu code 2. 1. 4) Reference sample quantity: 20 pcs (menu code 3. 3. 3)
-
Page 13: Weighing In Percent
Acculab deep discount distributor Weighing in Percent Purpose This application program allows you to obtain weight readouts in percent which are in proportion to a reference weight. Available Features – Store the current weight value to have it loaded as the preset reference percent- age next time you initialize the Weighing in Percent application –... - Page 14 Acculab deep discount distributor Example Determine an unknown percentage; store the weight on the balance/scale as a reference percentage Settings (changes in the factory settings required for this example): Menu: Application program: Weighing in percent (menu code 2. 1. 5) Menu: Reference percentage 100 % (menu code 3.
-
Page 15: Weigh Averaging
Acculab deep discount distributor Weigh Averaging Purpose Use this program to determine weights under unstable ambient conditions. In this program, the balance/scale calculates the weight as the average value from a defined number of individual weighing operations. These weighing operations are also known as “subweighing operations”... - Page 16 Acculab deep discount distributor Example Determine the weight of a sample in extremely unstable ambient conditions by calculating the average of 10 subweighing operations. Settings (changes in the factory settings required for this example): Menu: Application program: Weigh Averaging (menu code 2. 1.12)
-
Page 17: Toggle Between Weight Units
Acculab deep discount distributor Toggle Between Weight Units With this application program you can toggle the display of a weight value back and forth between two weight units. Configure the “Toggle Weight Units” application in the operating menu: See “Configuring the Balance/Scale,”... -
Page 18: Configuring The Balance/Scale
Acculab deep discount distributor Configuring the Balance/Scale Setting the Parameters (Menu Codes) You can configure your ALC balance to meet individual requirements by selecting from the parameters available in the menu. Example: Adapt the balance/scale to unstable ambient conditions:... -
Page 19: Balance/Scale Operating Menu (Overview)
Acculab deep discount distributor Balance/Scale Operating Menu (Overview) ο Factory setting √ User setting Menu 1. Balance/ 1.1. Adapt filter 1.1.1 Minimum vibration scale functions 1.1.2 ο Normal vibration 1.1.3 Strong vibration 1.1.4 Extreme vibration 1.3. Stability range 1.3.1... - Page 20 Acculab deep discount distributor 6. Print for Manual/auto 6.1.1 Manual without stability Weighing print mode 6.1.2 o Manual at stability 6.1.3 Automatic without stability 6.1.4 Automatic at stability 7. Print with Line format of 7.1.1 Without data ID Codes...
-
Page 21: Data Interface
Acculab deep discount distributor Data Interface Purpose Preparation Your balance/scale comes equipped with an interface You can set these parameters for other port for connection to a computer or other peripheral devices in the Setup menu (see the chapter device. -
Page 22: Error Codes
The weight readout The balance/scale has not Calibrate/adjust the balance/scale is obviously wrong been calibrated/adjusted The balance/scale was not Tare before weighing tared before weighing If any other errors occur, please contact your local Acculab Service Center. -
Page 23: Care And Maintenance
Acculab deep discount distributor Care and Maintenance Repairs Repair work must be performed by trained service technicians. Any attempt by untrained persons to perform repairs may lead to hazards for the user. Cleaning Disconnect the balance/scale from the AC adapter and unplug any interface... -
Page 24: Instructions For Recycling
– the AC adapter has been stored for a relatively long period under unfavorable conditions In this case, notify your nearest Acculab Service Center or the International Technical Support Unit based in Goettingen, Germany. Maintenance and repair work may only be performed by service technicians who are authorized by Acculab and who –... -
Page 25: Overview
Acculab deep discount distributor Overview Specifications Model ALC-80.4 ALC-110.4 ALC-210.4 Weighing capacity Readability Tare range (subtractive) Repeatability ≤±mg Linearity ≤±mg Operating temperature range +10…+30 °C (50 to 86°F) Allowable ambient operating temperature +5…+40 °C (41 to 104°F) Sensitivity drift –6... - Page 26 Acculab deep discount distributor Model ALC-150.3 ALC-210.3 ALC-320.3 Weighing capacity Readability 0.001 Tare range (subtractive) Repeatability <±mg 0.0015 Linearity <±mg 0.003 Operating temperature range +10…+30 °C (50 to 86°F) Allowable ambient operating temperature +5…+40 °C (41 to 104°F) Sensitivity drift within –6...
- Page 27 Acculab deep discount distributor Model ALC-810.2 ALC-1100.2 ALC-2100.2 ALC-3100.2 Weighing capacity 1100 2100 3100 Readability 0.01 0.01 Tare range (subtractive) 1100 2100 3100 Repeatability <±g 0.01 0.03 Linearity <±g 0.02 0.03 Operating temperature range +10…+30 °C (50 to 86°F)
- Page 28 Acculab deep discount distributor Model ALC-2100.1 ALC-4100.1 ALC-6100.1 Weighing capacity 2100 4100 6100 Readability Tare range (subtractive) 2100 4100 6100 Repeatability <±g Linearity <±g Operating temperature range +10…+30 °C (50 to 86°F) Allowable ambient operating temperature +5…+40 °C (41 to 104°F) Sensitivity drift within –5...
-
Page 29: Accessories (Options)
The operator shall be responsible for any modifications under ambient conditions requiring higher safety to Acculab equipment and for any connections of cables or standards, you must comply with the provisions as equipment not supplied by Acculab and must check and, specified in the applicable regulations for installation in if necessary, correct these modifications and connections.
