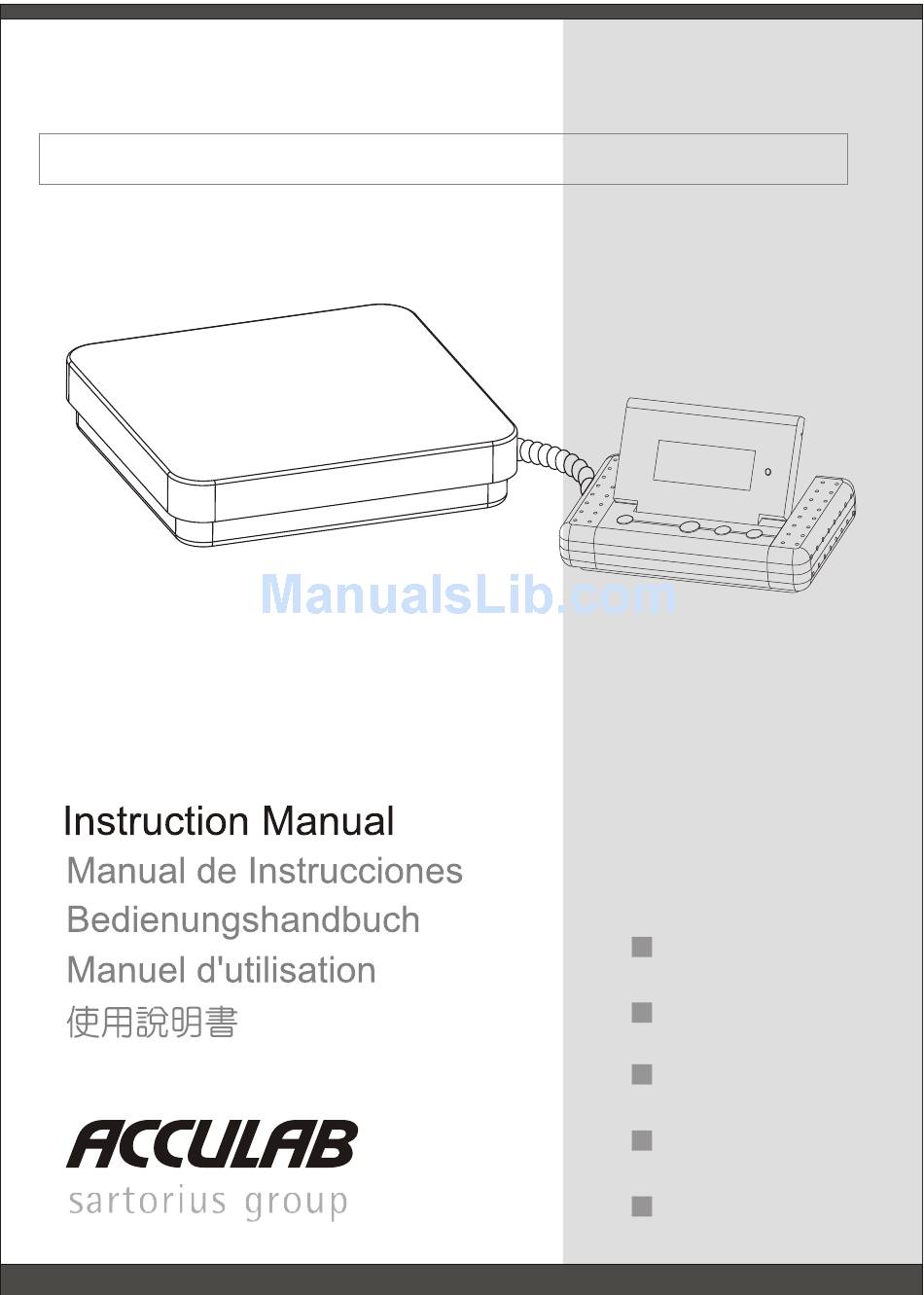

- Page 1 SVI SERIES PROFESSIONAL PRECISION INDUSTRIAL SCALE SVI-10A SVI-20B SVI-50C SVI-100E SVI-200F...
-
Page 2: Table Of Contents
Table of Contents Introduction Important Information Installation & Operating Instructions AC Adapter Battery Operation Key Functions / Description On / Off Cal / Print “F” Key Zero / Tare Light Calibration Application Programs Weight Unit Counting Totaling Features Digital Calibration Power Up Test Overload Auto Off... -
Page 3: Introduction

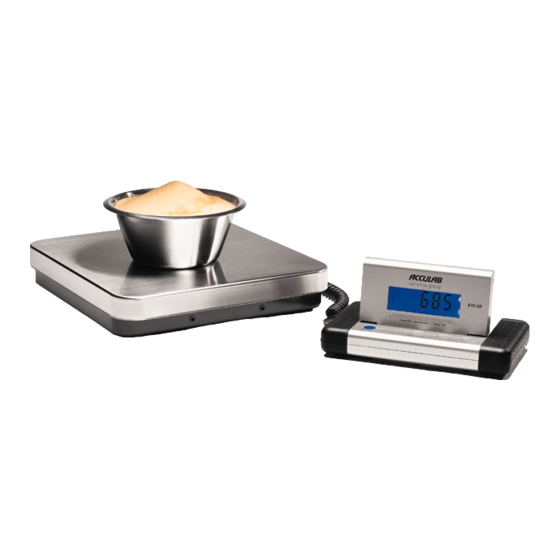

ENGLISH Introduction Thank you for purchasing an Acculab SVI Series Professional Scale. Please read all of the operating instructions to ensure optimum performance. The unit is pre-calibrated at the factory and is ready to use with the supplied AC adapter. -
Page 4: Key Functions / Description
ENGLISH Key Functions / Description: LIGHT ON / OFF TARE / ZERO CAL / PRINT 1. ON/OFF: Press to turn scale ON or OFF. 2. ZERO/TARE: Pushing ZERO/TARE key “zero’s” display, pushing and holding ZERO/TARE key for more than 3 seconds accesses application menu. -
Page 5: Application Programs
ENGLISH Please remove weight and zero scale. Place cal-weight back on to pan and the result should be within +/- 1d. Calibration complete. Calibration Notes: The actual calibration weight needs to be within +/- 5% of the selected weight. If the scale is not zeroed before calibration, error “E-01” will be displayed. If calibration weight is positively “above”... -
Page 6: Totaling
ENGLISH To exit “Counting” press and hold “TARE/ZERO” key for more than 3 seconds to access application menu and select “UNIT” (default setting). Totaling: To select the application “Totaling” press and hold “TARE/ZERO” key for more than 3 seconds to access application menu. -
Page 7: Menu Settings
ENGLISH Menu Settings: Set up Menu / Configuring Scale (Factory set parameters are marked “0”.) Turn off scale. Turn on while holding the ZERO/TARE key. Page or level value “1” will be displayed. To navigate within a menu level press “F”, when you reach the last menu item, the first item is shown again. To select the next line or level within a group press and release “CAL/PRINT”... -
Page 8: Interface Description
ENGLISH Interface Description Type of Interface: Serial Operating Mode: Full Duplex Transmission Rates: 1200, 2400, 4200, 9600 Baud Parity: Mark, Space, Odd, Even Data Output Format: 16 Characters Factory settings: Please See Scale Operating Menu Pin Assignment: Pin2: Tx, Pin3: Rx, Pin5: grnd Commands ASCII Print... -
Page 9: Product Specifications
ENGLISH... - Page 10 If you have any questions please contact your local Acculab supplier, visit our website www.acculab.com or contact: Si tiene alguna duda, póngase en contacto con su proveedor local de Acculab, visite nuestra página web www.acculab.com o póngase en contacto con: Wenden Sie sich bei Fragen an Ihren Aculab-Lieferanten vor Ort, besuchen Sie unsere Internetseite www.acculab.com oder wenden Sie sich an:...
