1020 Battery pack
For access, remove this FRU:
• "1010 Base cover" on page 32
DANGER
Only use the battery specified in the parts list for your computer. Any other battery
could ignite or explode.

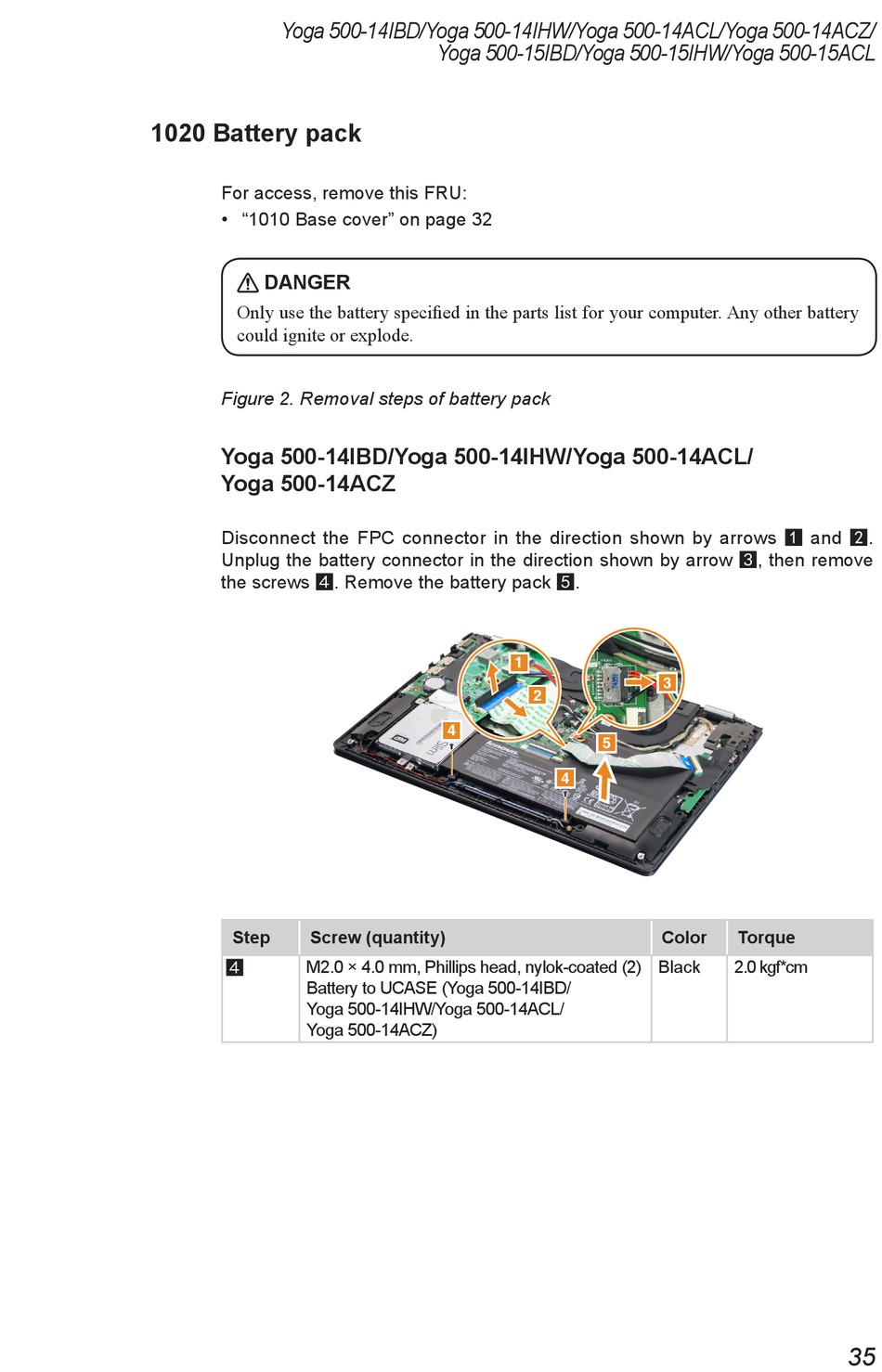

Figure 2. Removal steps of battery pack
Yoga 500-14IBD/Yoga 500-14IHW/Yoga 500-14ACL/
Yoga 500-14ACZ
Disconnect the FPC connector in the direction shown by arrows 1 and 2.
Unplug the battery connector in the direction shown by arrow 3, then remove
the screws 4. Remove the battery pack 5.
Step
Screw (quantity)
M2.0 × 4.0 mm, Phillips head, nylok-coated (2)
4
Battery to UCASE (Yoga 500-14IBD/
Yoga 500-14IHW/Yoga 500-14ACL/
Yoga 500-14ACZ)
Yoga 500-15IBD/Yoga 500-15IHW/Yoga 500-15ACL
1
Color
Torque
Black
2.0 kgf*cm
35
