Boot Release Configurations - Hawk ha-280 pro Installer Manual

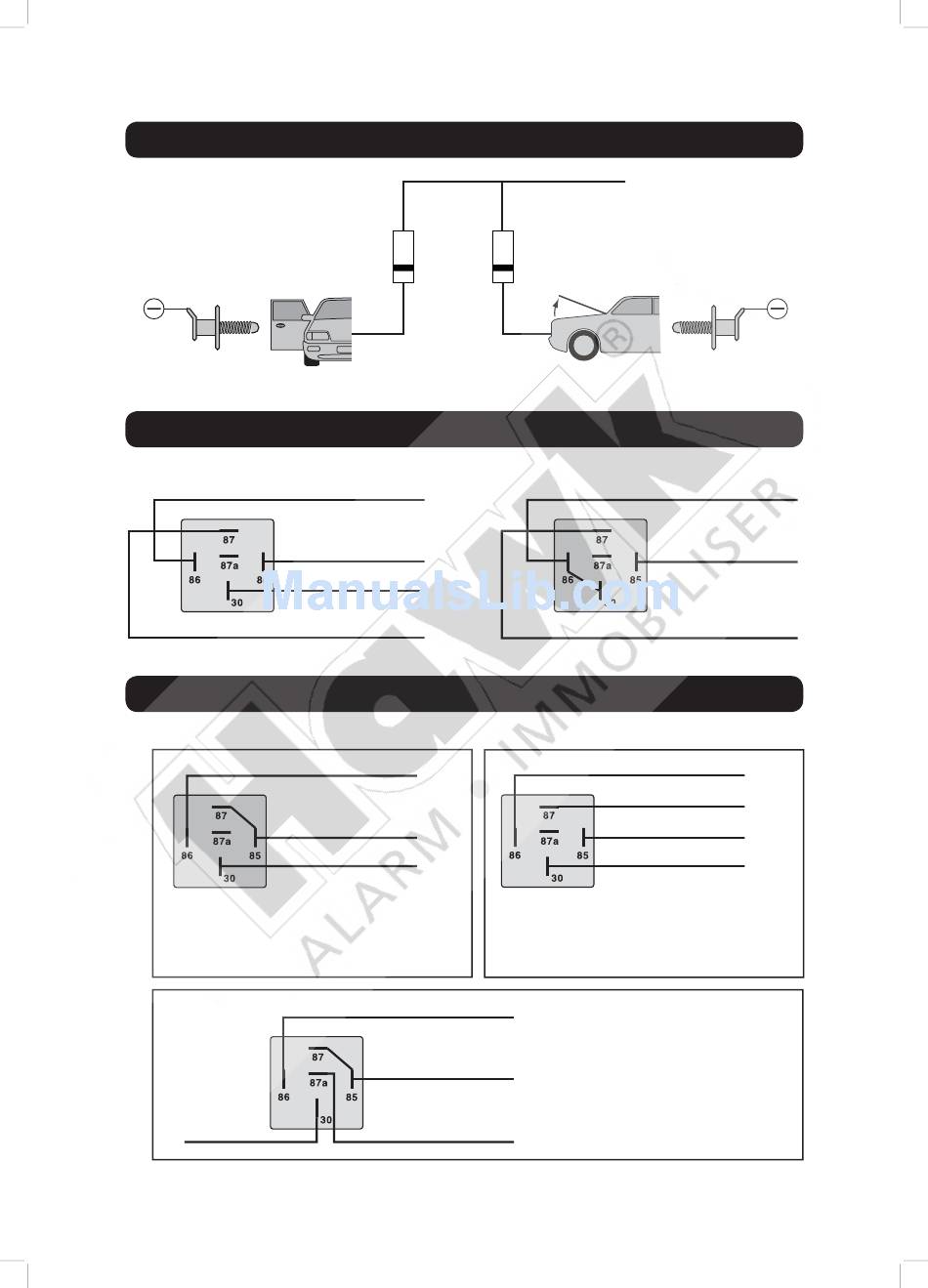

Bonnet and door protection
Optional diode and
bonnet pin switch
not included
DRIVER'S PIN SWITCH
Interior light supervision relays
For negative interior light
INPUT FROM ALARM (-)
(-) 0v NEGATIVE CONSTANT
TO INTERIOR LIGHT ( WIRE THAT'S NEGATIVE ( - ) WHEN DOOR IS OPENED )

Boot release configurations

Optional extra
(-) INPUT FROM ALARM
PINK WIRE
TO BOOT RELEASE SWITCH
This configuration is used when the vehicle's boot release
switch operates with a 12 volt signal to the boot solenoid.
Always fuse the 12 volt supply to the relay.
PINK WIRE
TO BOOT RELEASE
MOTOR SIDE
BLUE WIRE (–) INPUT FROM ALARM
1N4007
+12v CONSTANT
RED / BLACK WIRE
+12v CONSTANT
OR SOLENOID (+)
This configuration is used when the vehicle's boot release
switch operates with a high current ground output. The
ground output from your unit may not be sufficient to
trigger the switch and a relay must be added and wired in
this manner. Always fuse the 12 volt supply to the relay.
(-) INPUT FROM ALARM
+12v CONSTANT
TO BOOT RELEASE
SWITCH SIDE
1N4007
BONNET PIN SWITCH
For positive interior light
INPUT FROM ALARM (-)
TO INTERIOR LIGHT ( WIRE THAT'S POSITIVE ( + ) WHEN DOOR IS OPENED )
(-) INPUT FROM ALARM
PINK WIRE
(-) CONSTANT GROUND
+12v CONSTANT
TO BOOT RELEASE SWITCH
OR SOLENOID (-)
This configuration is used when the output
from the vehicle's boot release switch rests at
ground and a 12 volt pulse cannot be applied
directly to the wire. Always fuse the 12 volt
supply to the relay.
+12v CONSTANT
RED / BLACK WIRE
