- Page 1 X90 v5 User’s Manual Guide to Intelligent Alarm Immobiliser 9 0 0 1 ISO 9001 QS 9000 Manufacturer: COMMERCIAL ELECTRONICS CO. LTD 264 HAYDONS ROAD, WIMBLEDON, LONDON SW19 8TT. UK TEL: +44 020 8404 7105 FAX: +44 020 84047104 http://www.hawkcaralarm.com e-mail: info@hawkcaralarm.com...
- Page 2 This system has been designed to provide years of trouble- free operation. HA- X90 Pro v5 is a reliable Motorcycle / Scooter alarm system, which provides 2 designs to prevent thieving. The first design is to use the loud siren. When any illegal intrusion happens, the siren will sound loudly to warn the intruder.

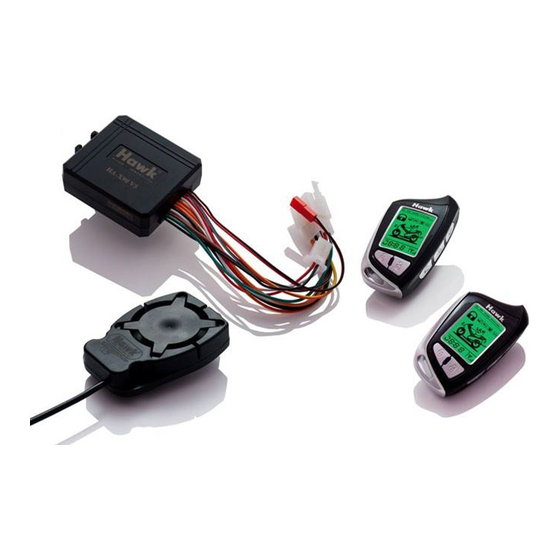

- Page 3 • 1 x HAWK sticker • Universal Wiring Harness Important: When installing a Hawk Alarm to any vehicle fitted with LED indicators (turn signals) it is responsibility of the installer to verify the indicators are powered by DC 12v & not CANBUS controlled.
-
Page 4: Silent Arming/Disarming
ARMING THE ALARM SYSTEM NORMAL ARMING MODE To arm the alarm system, turn the ignition switch OFF, press the button, indicators will flash once; with single audible bleep LED starts to flash and LCD remote fob will bleep once, the alarm system will enter into the arming status after 5 seconds. -
Page 5: Arming Reminder
ARMING REMINDER When the Motorcycle is parked and owner left the Motorcycle after 8 seconds, system will sound siren 3 times and flash indicator lights 3 times, LCD remote will bleep , lock icon will flash and vibrate to remind owner to arm the security system. - Page 6 During 2 stage (full alarm mode) if alarm is triggered within 10 seconds after 1st stage. Then system will go into full alarm mode. Siren will activate for 30 seconds and indicator lights flash for 30 seconds and engine will be immobilise. LCD remote fob will bleep for 30 seconds.
-
Page 7: Remote Start
REMOTE START Read Warning! Safety First Press the button twice within three seconds, Remote engine icon will appear on LCD remote fob, LCD remote fob will bleep for 3 times, engine will start automatically, and used for non-key driving and warm-up. Repeat the above operation if the engine does not function due to cold weather or due to slow rotation of engine. - Page 8 PERSONAL INJURY. YOU MUST IMMEDIATELY CEASE THE USE OF THE UNIT AND SEEK THE ASSISTANCE OF AN AUTHORIZED DEALER TO REPAIR OR DISCONNECT THE INSTALLED REMOTE START MODULE. HAWK CAR ALARM WILL NOT BE HELD RESPONSIBLE OR PAY FOR INSTALLATION OR REINSTALLATION COSTS. ANTI HOTWIRE...
-
Page 9: Adjusting Shock Sensor
ADJUSTING SHOCK SENSOR Remove dust cover from side of alarm main control box. Adjust shock sensor sensitivity with screw driver according to user need. LED FUNCTION / ALARM MEMORY: In arm mode LED will flash twice within interval of 2 seconds. This will indicate alarm is on arm mode. - Page 10 Warning: After entering into code-learning mode, the previous remote codes will not be cleared. To clear the previous remote codes (In case remotes were lost), learn a new remote for at least 4 times, it will automatically replace all other remotes. LCD REMOTE FOB RADIO SIGNAL STRENGTH INDICATOR In arm mode if no radio signal bar shown on LCD remote fob then alarm is out of range of main control box.
- Page 11 Technical Data Working frequency : 433.92 MHZ Modulated way: FSK Alarm unit: Working voltage : 12V±3V Static current: <=3.5 mA Siren volume: 110~125Db Operation Temperature: -40c ~ +85c...
- Page 12 HAWK dealer; the unit will be professionally reinstalled in the vehicle in which it was originally installed by an authorized HAWK dealer; and the unit is returned to HAWK, shipping prepaid with a legible copy of the bill of sale or other dated proof of purchase bearing the following information: consumer’s name, telephone number and address;...
