Central locking technical diagrams

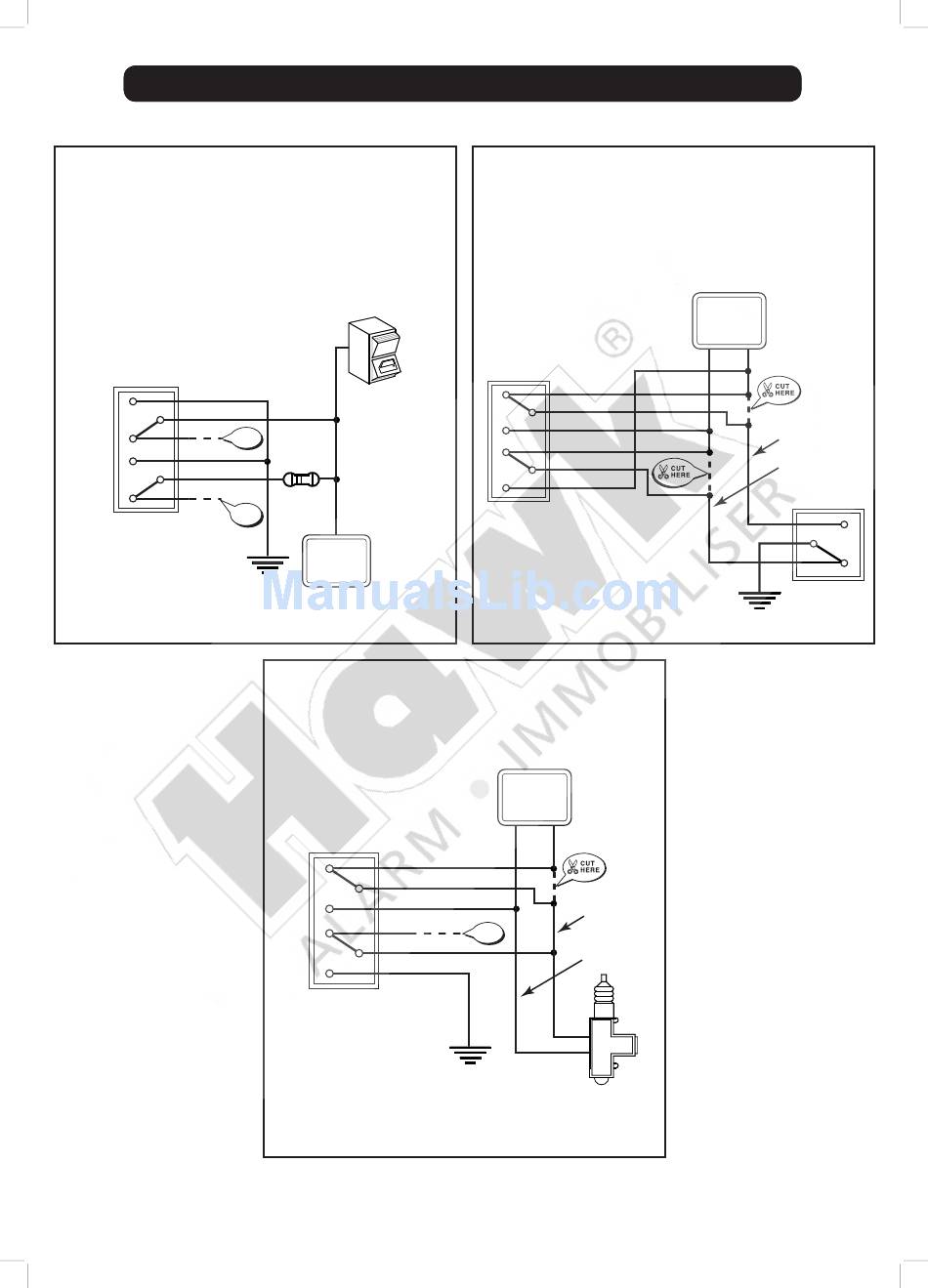

Diagram O
Central locking control resistive
negative unlock only
PRIOR TO MAKING THE CONNECTION ENSURE
THE ALARM IS PROGRAMMED FOR THE
APPROPRIATE LOCKING PULSE
INTERNAL ALARM
RELAYS
YELLOW
WHITE
ORANGE
DON'T
USE
YELLOW / BLACK
WHITE / BLACK
ORANGE / BLACK
DON'T
USE
GROUND
16
INTERNAL
CENTRAL
LOCKING
SWITCH
RESISTANCE
TO UNLOCK
VEHICLE
CENTRAL
LOCKING
RELAY
Diagram R
Central locking control negative unlock -
input switched interrupt to lock
PRIOR TO MAKING THE CONNECTION ENSURE
THE ALARM IS PROGRAMMED FOR THE
APPROPRIATE LOCKING PULSE
INTERNAL ALARM
RELAYS
ORANGE
WHITE
YELLOW
ORANGE / BLACK
WHITE / BLACK
YELLOW / BLACK
GROUND
Diagram Q
Central locking control actuator switch interrupt
(negative at rest) (type Honda)
PRIOR TO MAKING THE CONNECTION ENSURE
THE ALARM IS PROGRAMMED FOR THE
APPROPRIATE LOCKING PULSE
INTERNAL ALARM
RELAYS
ORANGE
WHITE
YELLOW
ORANGE / BLACK
WHITE / BLACK
YELLOW / BLACK
VEHICLE
CENTRAL
LOCKING
RELAY
UNLOCK WIRE
DON'T
USE
UNLOCK WIRE
VEHICLE
CENTRAL
LOCKING
ACTUATOR
VEHICLE
CENTRAL
LOCKING
RELAY
UNLOCK WIRE
LOCK WIRE
DOOR
ACTUATOR
SWITCH
GROUND
