Venue 2 Wideband Receiver
TOP MENU
DETECT takes an inventory of the receiver
modules installed in the mainframe and
displays the results in an on-screen table.
SMART TUNE is an automatic process that
scans the tuning range of all modules and
automatically finds clear frequencies. The
screen prompts the operator to set up
transmitters one at a time to the newly discovered
frequencies and turn them on before proceeding.
SPECTRUM SCAN launches a manual
scanning procedure where each receiver
module is scanned one at a time, with the
results presented in a graphical display.
LOCK PANEL prevents changes from
being made with the front panel controls.
BACK LIGHT adjusts the brightness of the
LCD. Four different levels are available.
ANTENNA POWER turns the DC bias
power on the antenna inputs off and on.
The DC bias is used to power remote
amplifiers used at the antenna end of long
coaxial cable runs.
NETWORK SETUP provides screens to
define the parameters for network protocol
and connections.
RS232 SETUP provides a screen where
the baud rate can be set from 9600 to
115200.
COMMAND VIEW opens a screen that
displays the commands received from a
remote control device or computer and the
replies sent back by the receiver.
SYSTEM INFO displays the receiver serial
number, hardware and firmware revisions,
and the active alerts. Active alerts shown
on this screen are error messages that list
the details of faults in the receiver. When a fault occurs,
the white LED on the right side of the front panel will
blink, prompting the operator to view this screen.
18

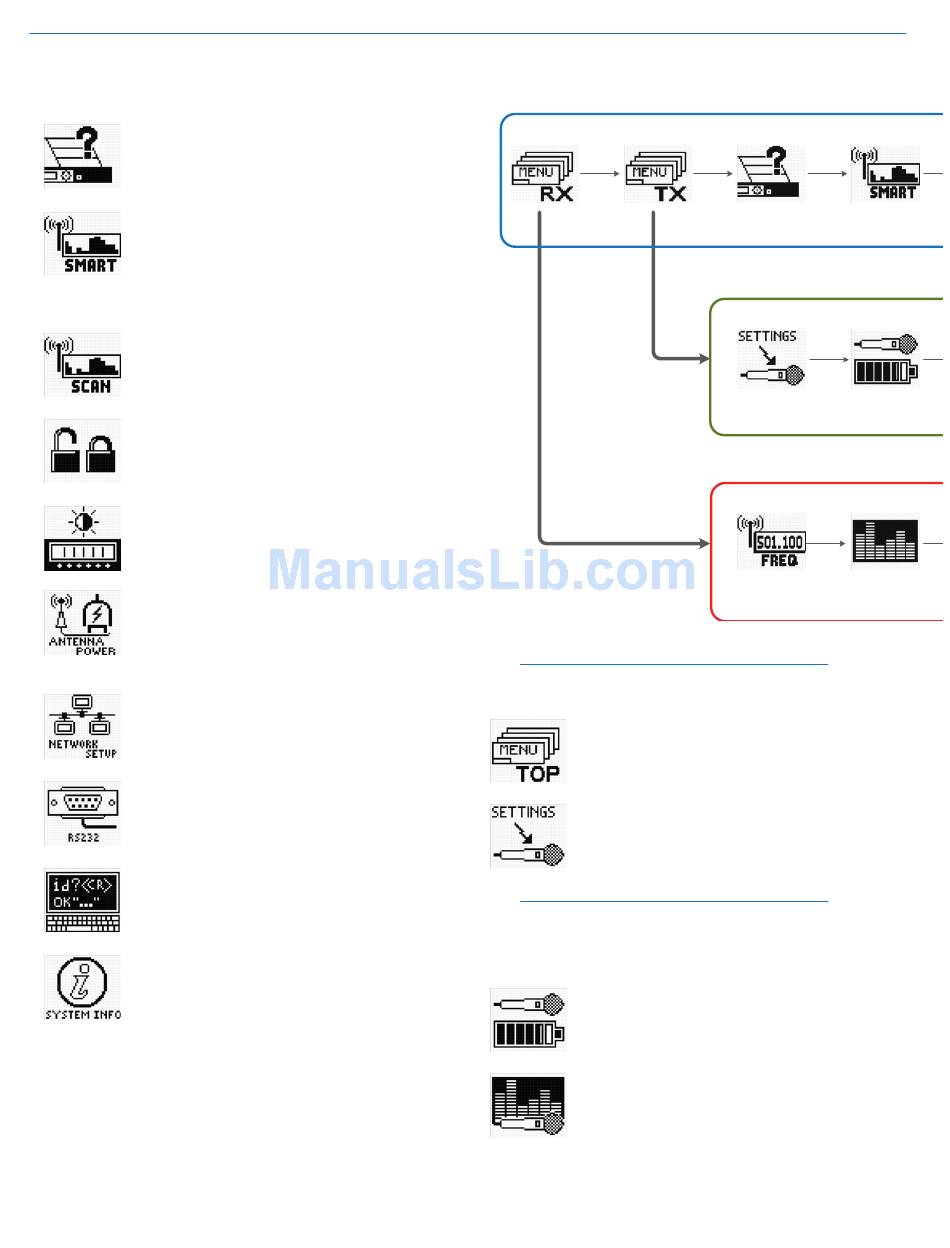

Menu Map
TOP MENU
TX MENU
NOTE: Some items in this menu work only with
Lectrosonics transmitters.
TOP MENU links back to the Top Menu for
overall system setup.
SETTINGS is used to get settings from and
send settings to a Lectrosonics transmitter
on each channel. The LCD shows a listing
of the frequency and nine configuration
settings on a single screen.
NOTE: The transmitter settings can be made in
the receiver and then transferred via IR (infrared)
to the transmitter if it is so equipped. Later model
Lectrosonics transmitters offer this feature.
TX BATTERY selects the battery type used
in each transmitter.
TX AUDIO GAIN adjusts the input gain of
each channel to match the microphone or
instrument level delivered to the transmitter
to optimize the signal to noise ratio and
minimize distortion.
DETECT
SMART
TUNE
TX MENU
SETTINGS
TX BATTERY
RX MENU
FREQ ADJUST
AUDIO LEVEL
LECTROSONICS, INC.
