Venue 2 Wideband Receiver

Setup Details

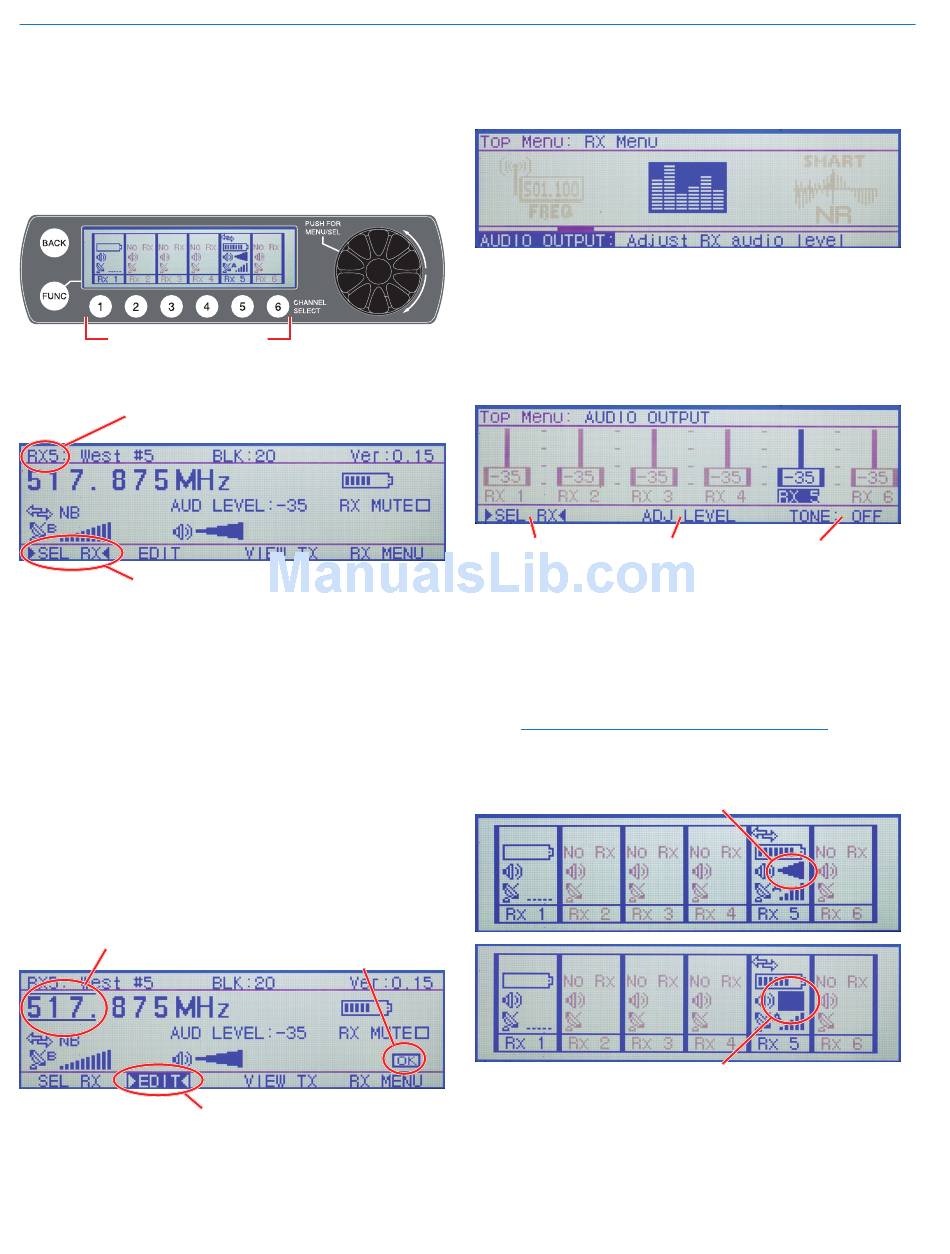

Direct Access to Receiver Setup

Basic adjustments to each receiver can be made in a
single screen available with the numbered Receiver
Select button below the frame of each receiver. These
buttons operate only from the Main Window.
Receiver select buttons
A setup screen opens for that channel, with RF and
audio settings displayed.
Selected receiver
Selected item indicated by brackets
Rotate the Rotary Encoder to select the function at
the bottom of the screen, then press the encoder to
enable it.
• SEL RX highlights the function name, allowing the
selected receiver to be changed by rotating the
rotary encoder
• EDIT enables the items on the screen to be
changed. Rotate the encoder to select the item,
then press the encoder to highlight it and change
the value. Press the encoder again to deselect it
and navigate to other items
• VIEW TX displays the transmitter settings
• RX MENU switches the display to the receiver
setup menu
Ruled lines over and
under selected item
Press the encoder or BACK to deselect the item.
12
Press OK to
save settings
Function is highlighted

Audio Output Levels Setup

The output level of the installed receiver modules can
be adjusted in a single setup screen in the RX Menu.
Icons representing "sliders" are presented for level
adjustments. The level shown for each channel is
expressed in dBu.
The items at the bottom of the screen are used for
adjustment of the module output and for adjustment
of the mixer, recorder, etc. that is connected to the
receiver.
Allows adjustment
Selects the receiver
to be adjusted when highlighted
When TONE is enabled, a 1 kHz tone is produced at
the output of the selected module. The tone simulates
the audio level that will be produced when the trans-
mitter on this channel is fully modulated.
The modulation level of the transmitter is displayed in
the Main Window and in the receiver setup screen.
NOTE: The tone will not generate the displays
shown below, since it is turned off when the
AUDIO OUTPUT setup screen is exited.
Full modulation (onset of limiting)
Tone output for
adjustment of
external device
Modulation (audio level)
