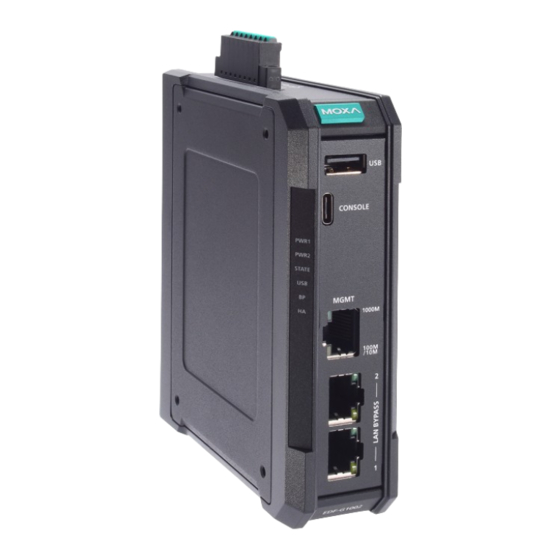

- Page 1 EDF-G1002 Series Quick Installation Guide Moxa Industrial Next-generation LAN Firewall Version 1.0, June 2024 Technical Support Contact Information www.moxa.com/support 2024 Moxa Inc. All rights reserved. P/N: 1802010021010 *1802010021010*...
-
Page 2: Package Checklist
Installation and Configuration You will need access to a notebook computer or PC equipped with an Ethernet port. The EDF-G1002 Series has two default IP addresses that allow you to connect to the device for the first time, either through the LAN ports or the Management port. - Page 3 STEP 3: Use the web-based manager to configure the EDF- G1002 Open your computer’s web browser and, depending on the port the computer is connected to, type https://192.168.127.254 (LAN port) or https://192.168.1.1 (Management port) in the address field to access the homepage of the web-based management system.
- Page 4 Top Panel View Grounding screw Terminal block with latch for Power 2 input Terminal block with latch for Power 1 input Terminal block with latch for digital input Terminal block with latch for relay output Reset button Rear Panel View DIN-rail mounting kit - 4 -...
- Page 5 Device Dimensions DIN-rail Dimensions Wall Mounting Dimensions - 5 -...
-
Page 6: Din Rail Mounting
DIN-rail Mounting The EDF-G1002 Series comes with a DIN-rail kit attached to the back panel by default. Mount the EDF-G1002 Series on a corrosion-free mounting rail that meets the EN 60715 standard. Installation STEP 1: Insert the upper lip of the DIN rail into the top hook of the DIN-rail mounting kit. - Page 7 Installation STEP 1: Attach the wall-mounting kit to the EDF-G1002 device by inserting the upper lip of the DIN-rail kit into the hook of the wall mounting kit. STEP 2: Press the EDF-G1002 device towards the wall mounting kit until it snaps into place.
-
Page 8: Wiring Requirements
WARNING • This equipment is intended to be used in a Restricted Access Location, such as a dedicated computer room, where access can only be gained by SERVICE PERSONS or by USERS who have been instructed about the fact that the metal chassis of the equipment is extremely hot and may cause burns. -
Page 9: Connecting The Power Input
Grounding the Moxa EDF-G1002 Series Grounding and wire routing help limit the effects of noise due to electromagnetic interference (EMI) by routing the noise from the metal chassis to the connected ground. Run the ground connection from the ground screw to the grounding surface prior to connecting devices. The minimum cross-sectional area of the grounding conductor should be equal to that of the input cable. -
Page 10: Communication Connections
MDI-X Port Pinouts 8-pin RJ45 Signal Signal Console Port The EDF-G1002 Series features a Type-C console port for connecting to a PC COM port using a Type-C-to-DB9 cable. You can use this port for debugging or firmware upgrades. Description A5, B5... -
Page 11: Specifications
Color Behavior Function Power is not being supplied to the power PWR2. STATE Green The system passed the self- diagnosis test during boot-up and is ready to run. Blinking (1 Hz) The system is ready to do a factory reset after pressing the reset button for 5 seconds. - Page 12 WARNING 사 용 자 안 내 문 이 기기는 업무용 환경에서 사용할 목적으로 적합성 평가를 받은 기기로서 가정용 환경에서 사용하는 경우 전파간섭의 우려가 있습니다. - 12 -...
